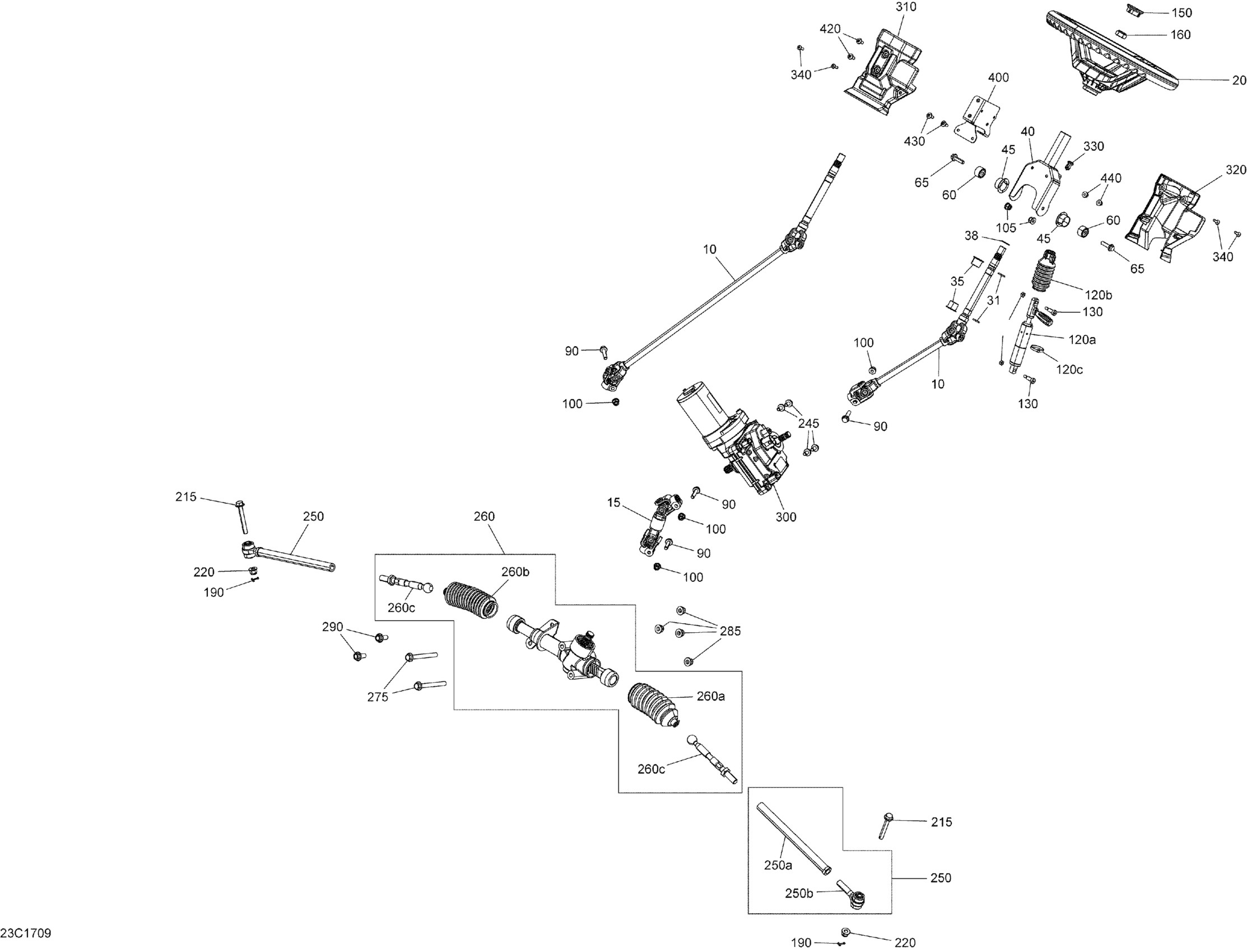

Can-Am Defender T, 2017 07- Steering - All Models Diagram

Steering Column

709402491

$194.99

Steering shaft Ass'y | Model With DPS

709401440

$194.99

Lower Steering Column

709402996

$199.99

Steering Wheel

709401513

$519.49

O-Ring

293300144

$3.82

Steering Bushing

709402725

$3.28

Circlip

293370110

$2.61

Steering Support

709401602

$83.99

Bushing

709401603

$8.85

Bushing

709401604

$5.89

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Elastic Nut M8

233281414

$1.47

Adjustment Cylinder

709402506

$72.99

Boot Tube Side

709401232

$18.99

Tie-Rap 180 mm

414115200

$0.11

Socket Head Screw M8 X 16

250000669

$3.17

Elastic Stop Nut M6

232561414

$0.55

Steering Cap

709401514

$19.49

Elastic Lock Nut M16

232511414

$2.00

Cotter Pin

211400017

$0.33

Screw Hex Cap M10 X 75

250000814

$4.76

Hex. Flange Elastic Nut M10

233201414

$1.58

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

Tie Rod Ass'y | Includes 250 to 250b

709401627

$68.99

Steering Rod Nut

715900238

$2.30

Ball Joint

709401601

$52.99

Steering Rack And Pinion | Includes 260 to 260d

709402317

$402.49

Boot Kit, Pinion Side

715900235

$54.99

Boot Kit, Tube Side

715900236

$54.99

Steering Rod Nut

715900238

$2.30

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 25

207602546

$2.11

Power Steering Ass'y | Package-DPS, XT, XTP

709401921

$999.49

Steering Box Cover

709402012

$13.99

Steering Box Cover

709402013

$13.99

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw K50 X 16

250000720

$1.69

Flasher Arm Support

709401962

$30.49

Torx Truss Screw M6 X 16

250000721

$1.69

Torx Screw M6 X 16

250000755

$0.87

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
