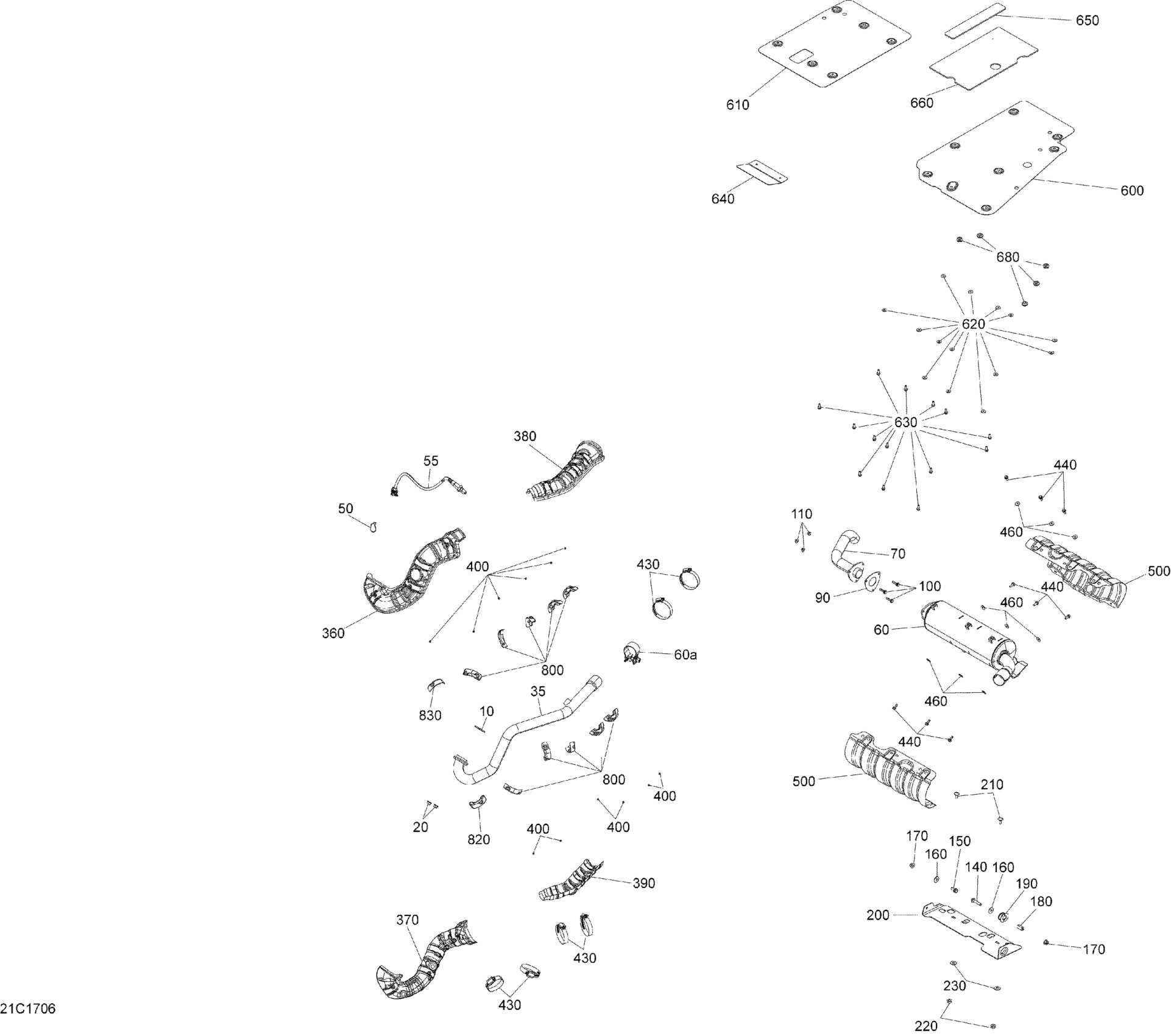

Can-Am Defender HD5, 2017 01- Exhaust System Diagram

#

Description
Price

10

Gasket

707600317

$11.60

20

Hex. Flange Nut M8

233081416

$1.15

35

Exhaust Pipe

707601959

$174.49

50

Tie-Rap 180 mm

414115200

$0.11

55

Oxygen Sensor

707600872

$144.99

60>60a

Muffler | Includes 60 to 60a

707602054

Unavailable

60a

Exhaust Pipe Clamp

293650228

$12.49

70

EXHAUST TAIL PIPE - Call your local BRP dealership

707601526

Unavailable

90

Gasket

707601799

$5.99

100

Hex. Flange Screw M6 X 25

207662544

$0.64

110

Hex. Flange Nut M6

233061414

$1.68

140

Hex. Flange Screw M8 X 40

207684044

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

160

Flat Washer 8 mm

234082410

$1.47

170

Hex. Flange Nut M8

233081416

$1.15

180

SPACER - Call your local BRP dealership

707601901

Unavailable

190

Rubber Mount

707601902

$7.90

200

Muffler Support

707601588

$30.49

210

Carriage Bolt, M8 X 20

207782044

$1.90

220

Hex. Flange Nut M8

233081416

$1.15

230

Flat Washer 8 mm

234082410

$1.47

360

Heat Shield, Front

707601923

$26.99

370

Front Heat Shield

707602403

$27.99

380

Heat Shield

707601955

$30.99

390

Heat Shield

707601956

$30.99

400

Pop Rivet 1/8 X

293150071

$0.98

430

Tridon Gear Clamp

293650258

$14.31

440

Hex Flange Screw M6 X 16

250000906

$5.29

460

Flat Washer 6 mm

234062410

$0.77

500

Protector

707602057

$23.49

600

Heat Shield

707602083

$53.99

610

Heat Shield

707601759

$53.99

620

Flat Washer 6 mm

234062410

$0.77

630

Hex. Flange Screw M6 X 16

210261640

$2.11

640

Heat Shield

707601970

$22.49

650

Reflective Sheet

707601921

$19.99

660

Reflective Sheet

707602032

$46.99

680

Grommet

709000582

$4.69

800

Exhaust Pipe Spacer

707602026

$3.29

820

Exhaust Pipe Spacer

707601948

$6.95

830

Exhaust Pipe Spacer

707602016

$6.95
