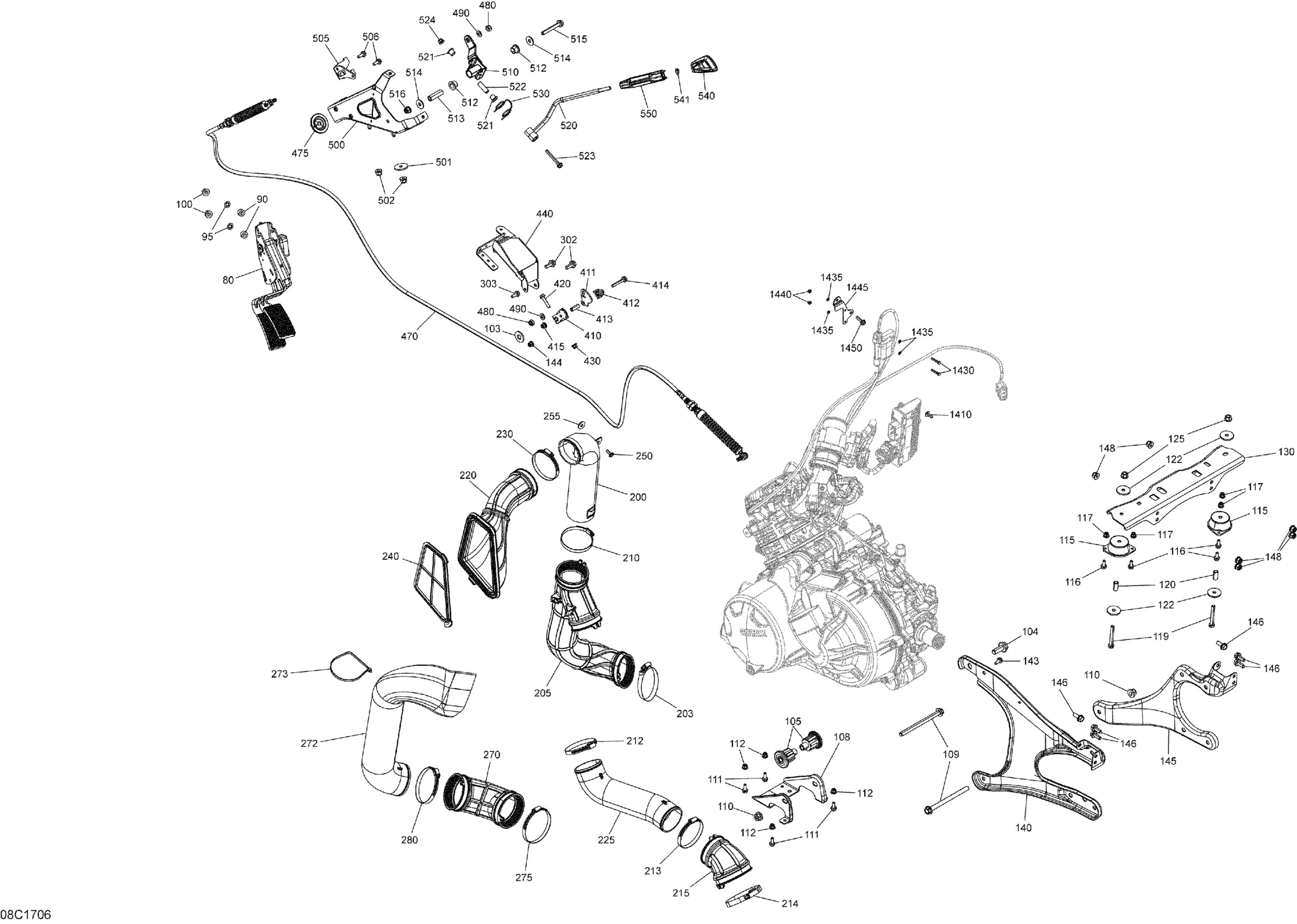

Can-Am Defender HD5, 2017 01- Engine Diagram

#

Description
Price

80

Accelerator Pedal

707001599

$299.99

90

Bushing

707000848

$1.35

95

Push Nut

250100031

$7.29

100

Hex. Flange Nut M8

233081416

$1.15

103

Conical Spring Washer M12

250200005

$3.27

104

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

105

Vibration Damper

707001169

$42.99

108

Front Engine Bracket

707001989

$15.99

109

Hex. Flange Screw M10 X 135

230603546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

111

Hex. Flange Screw M6 X 16

207661644

$0.74

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

115

Rubber Mount

707001867

$58.99

116

Hex. Flange Screw M6 X 16

207661644

$0.74

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

119

Hex. screw M8 x 60

207186044

$0.88

120

Bushing

707001908

$5.24

122

Flat Washer M8

250200158

$2.11

125

Hex. Flange Nut M8

233081416

$1.15

130

Rear Link Bracket

707002290

$30.99

140

Bracket -Engine

707001991

$27.99

143

Hex. Flange Screw M6 X 16

207661644

$0.74

144

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

145

Bracket -Engine

707001992

$19.99

146

Hex. Flange Screw M8 X 20

207682044

$1.15

148

Hex. Flange Elastic Nut M8

233281414

$1.47

200a

Front Duct

706600157

$54.99

203

Norma Clamp

293650091

$11.12

205

Flex Adapter

706600144

$21.99

210

Norma Clamp

293650091

$11.12

212

Norma Clamp

293650091

$11.12

213

Norma Clamp

293650091

$11.12

214

Norma Clamp

514052924

$14.22

215

Adap -Flex.

706600153

$12.63

220

Flexible Adaptor

706600084

$42.49

225

Duct

706600154

$20.99

230

Norma Clamp

293650091

$11.12

240

CVT Filter

706600156

$19.49

250

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

255

Washer M5

250200025

$0.74

270

Adap -Flex.

706600145

$23.99

272

Duct

706600155

$33.99

273

Tie Wrap 368 mm

293750008

$1.04

275

Norma Clamp

514052924

$14.22

280

Norma Clamp

514052924

$14.22

302

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

303

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

410

Lever

707000503

$38.49

411

Pivot Plate

707001988

$10.23

412

Spring

707000310

$10.43

413

Bushing

293900079

$8.89

414

Hex. Flange Screw M6 X 40

207664044

$2.22

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

440

Cable Support

707001986

$16.87

470

Shifting Cable

707002227

$68.99

475

Grommet

293720109

$10.49

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 8 mm

234081410

$0.83

500

Shifter Braket

707002003

$36.99

501

Flat Washer M8

250200158

$2.11

502

Hex. Flange Elastic Nut M8

233281414

$1.47

505

Cable Support

707002038

$16.87

506

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

510

Lower Shifter Arm

707002268

$16.99

512

Venturi Bushing

293900001

$7.62

513

Bushing

707003445

$13.12

514

Flat Washer 8 mm

234082410

$1.47

515

Hex. Flange Screw M8 x 60

207686044

$3.07

516

Hex. Flange Elastic Nut M8

233281414

$1.47

520

Welded Arm

707002230

$23.99

521

Flanged Bushing

707000869

$2.89

522

Bushing

707001376

$5.24

523

Hex. Flange Screw M6 X 50

207665044

$4.12

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$8.49

541

Hex. Jam Nut M8

232180491

$7.51

550

Shifting Arm Cover

707001899

$14.68

1410

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

1430

Hex. Screw M4 X 25

207142544

$2.00

1435

Flat Washer 4 mm

234040600

$0.55

1440

Elastic Stop Nut M4

232541414

$0.58

1445

Ignition Coil Bracket

707002024

$13.12

1450

Hex. Flange Screw M6 X 20

207662044

$2.00
