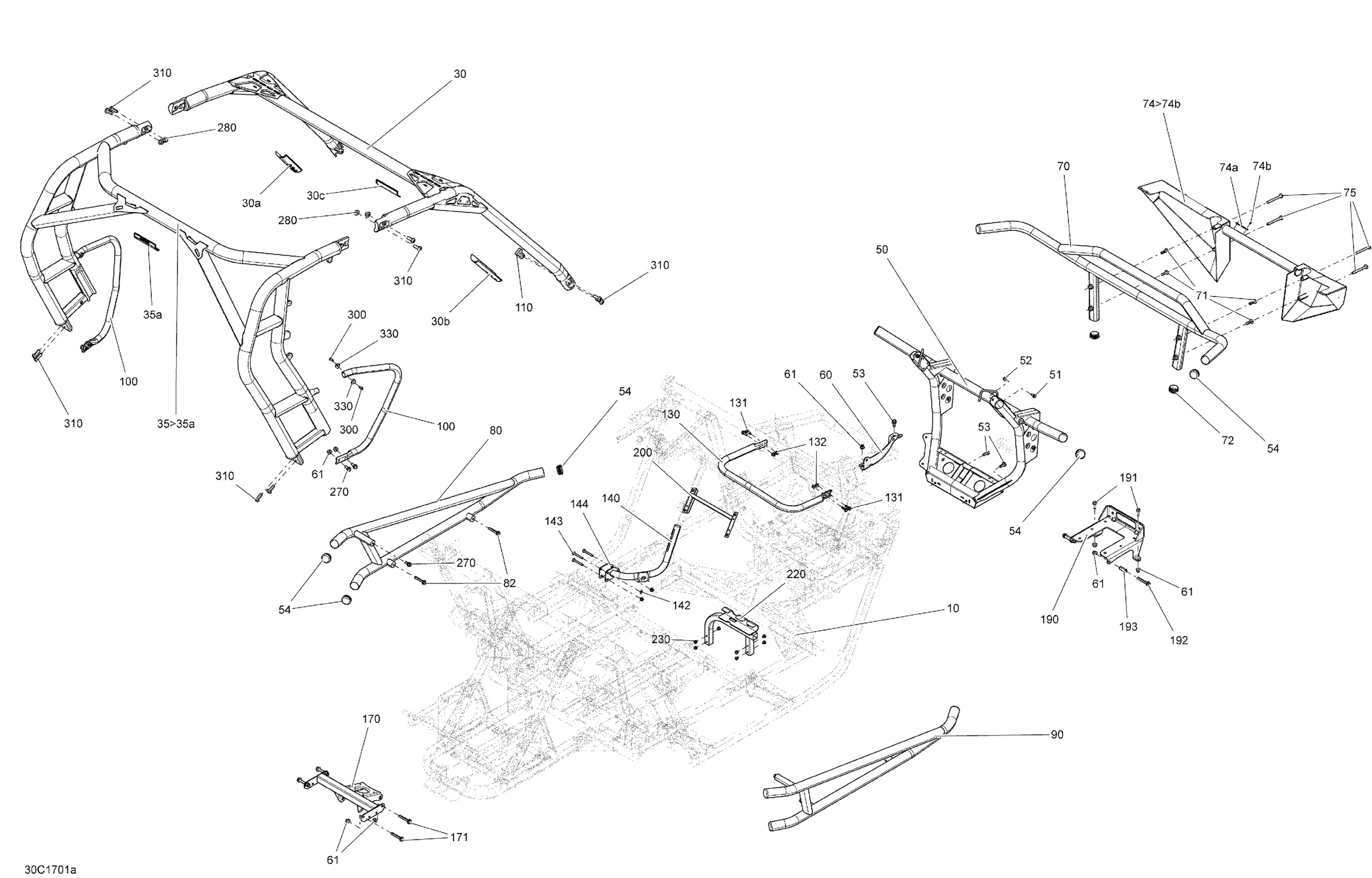

Can-Am Commander - Commander Max, 2017 09- Frame - Commander Diagram

#

Description
Price

10

Black, Frame

715004811

$2,319.99

30

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

30a

Warning Label

704903679

Unavailable

30b

Warning Label

704903680

Unavailable

30c

Warning Label

704903492

Unavailable

35>35a

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

35a

Warning Label

704903492

Unavailable

50

Black Front Bumper

705202995

$404.49

51

Hex. Flange Screw M6 X 16

207661644

$0.74

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

53

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

54

Cap

705202455

$5.69

60

Front Differential Support

705201721

$19.49

61

Hex. Flange Elastic Nut M8

233281414

$1.47

70

Black Front Bumper | XT, X

715000958

$308.49

71

Hex Torx Truss M8 X30

250000745

$3.17

72

Tube Cap | Europe

705202631

$20.99

74>74b

Front Bumper | Package Hunter

705010664

$510.99

74a

Can Am Logo

704902307

$18.49

74b

Pop Rivet 1/8", Black

293150189

$0.27

75

Torx Screw, M8 X 80

250000442

$7.51

80

BLACK LH LOWER PROTECTOR - Call your local BRP dealership | X

705203327

Unavailable

82

Hex. Flange Screw M8 X 50 | X

207585044

$3.91

90

BLACK RH LOWER PROTECTOR - Call your local BRP dealership | X

705203329

Unavailable

100

TUBE RH B-160 PAINTED - Call your local BRP dealership | Right

705203640

$43.99

100

TUBE LH B-160 PAINTED - Call your local BRP dealership | Left

705203637

Unavailable

110

Binding Block

705203415

$18.49

130

Black Handle

705203332

$132.49

131

Hex. Flange Screw M6 X 20

207662046

$2.11

132

Elastic Flange Nut M6 X 1.0

233261416

$2.11

140

Black Console Handle

705204399

$137.49

142

Elastic Flange Nut M6 X 1.0

233261416

$2.11

143

Torx Screw M6 X 50

250000317

$2.11

144

Steel Plate

705204606

$10.99

170

Differential Holder

705203538

$38.99

171

Hex. Flange Screw M8 X 55

207685544

$5.39

190

Winch Plate | XT

715000704

$122.49

191

Hex. Flange Screw M8 X 25

207682534

$2.11

192

Hex. Flange Screw M8 x 60

207686044

$3.07

193

Bushing

705202499

$6.67

200

Reinforcement Panel

705203330

$154.99

220

Not Available As Spare Part - Friction Washer

Unavailable

230

Hemlock Rivet, 6.5 mm

293150096

$3.27

270

Hex. Flange Screw M8 X 20

207682044

$1.15

280

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

300

Torx Truss M6X14

250000789

$5.39

310

Screw Pan M10 X 30

250000848

$1.90

330

Offset Washer

705202223

$4.14
