Description

Price

10

Brush Aluminum LH Front Fender | Model-Brushed Aluminium

705008340

$409.99

10

Brush Aluminum RH Front Fender | Model-Brushed Aluminium

705008342

$409.99

10

Camo, LH Front Fender | Camo Model

705009576

$409.99

10

Camo, RH Front Fender | Camo Model

705009577

$409.99

10

Painted Midnight Blue LH Front Fender | Blue Model

705011779

$409.99

10

PAINTED MIDNIGHT BLUE RH FRONT FENDER - Call your local BRP dealership | Blue Model

705011780

Unavailable

10

QUARRY GRAY LH FRONT FENDER - Call your local BRP dealership | Model-Quarry Gray

705008232

Unavailable

10

Quarry Gray RH Front Fender | Model-Quarry Gray

705008233

$204.99

10

Timeless Black, LH Front Fender | Package XTP

705011781

$409.99

10

Timeless Black RH Front Fender | Package XTP

705011782

$409.99

10

VIPER RED LH FRONT FENDER - Call your local BRP dealership | STD

705008196

Unavailable

10

VIPER RED RH FRONT FENDER - Call your local BRP dealership | Model-Red

705008197

Unavailable

10

YELLOW LH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008194

Unavailable

10

YELLOW RH FRONT FENDER - Call your local BRP dealership | Yellow Models

705008195

Unavailable

25

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

Grommet

517303756

$4.09

40

Yellow CVT Inlet Cover | Model-XT/DPS Yellow

705008190

$15.49

40

VIPER RED CVT INLET COVER - Call your local BRP dealership | Model-Red

705008191

Unavailable

40

Quarry Gray CVT Inlet Cover | Model-Quarry Gray

705008234

$16.49

40

Brush Aluminum CVT Inlet Cover | Modèle Aluminium Brossé

705008344

$224.99

40

Camo, CVT Inlet Cover | Camo Model

705009582

$189.99

40

Painted Midnight Blue CVT Inlet Cover | Blue Model

705011763

$194.99

40

Timeless Black, CVT Inlet Cover | Package XTP

705011764

$189.99

50

Tuflok Plastic Rivet

293150230

$1.47

60

Support Plate

705003841

$0.99

80

Edge Clip

517302785

$0.88

85

Panel Nut M6 X 1.0

250100198

$2.11

95

Hex. Flange Screw M6 X 20

207662054

$1.01

100

HOOD B-190 - Call your local BRP dealership | Yellow Models, Black Models

705008187

Unavailable

100

HOOD B-176 - Call your local BRP dealership | Red Models

705008188

Unavailable

100

HOOD B-365 - Call your local BRP dealership | Model-Quarry Gray

705008235

Unavailable

100

BRUSH ALUMINUM FIXED HOOD - Call your local BRP dealership | Model-Brushed Aluminium

705008346

$1,439.99

100

Camo, Fixed Hood | Camo Model

705009585

$979.99

100

Timeless Black, Fixed Hood | Black Model

705012020

$979.99

100

PAINTED MIDNIGHT BLUE FIXED HOOD - Call your local BRP dealership | Blue Model

705011755

Unavailable

105

Panel Nut M6 X 1.0

250100198

$2.11

110

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

120

Torx Screw K50 X 16

250000720

$1.69

140

Stainless Steel Flat Washer

234062670

$2.11

160

HOOD B-190 - Call your local BRP dealership | Model-XT/DPS Yellow

705008184

Unavailable

160

Viper Red Removable Hood | Red Models

705008185

$389.99

160

Quarry Gray Removable Hood | Model-Quarry Gray

705008237

$389.99

160

Timeless Black, Hood | Modèle Noir

705012019

$509.99

160

Camo, Removable Hood | Camo Model

705009588

$509.99

160

Midnight Blue Removable Hood | Blue Model

705010700

$509.99

180

Oval Washer

705005156

$4.97

260

FASCIA UP B-160 - Call your local BRP dealership

705003629

$20.99

280

LH Upper Facia Protector

705004350

$4.09

300

RH Upper Facia Protector

705004351

$4.09

320

Center Upper Facia Protector

705004336

$4.09

330

Edge Clip

517302785

$0.88

340

Torx Screw M6 X 20

250000722

$1.68

360

Panel Nut M6 X 1.0

250100198

$2.11

380

Flat Washer 8 mm

234082410

$1.47

400

Black Front Facia

705008689

$104.99

400

Black Front Facia | Package Hunter

705010654

$89.99

422

Lower Front Facia Protector

705004755

$18.49

424

LH Lower Rear Facia Protector

705004819

$18.49

424

RH Lower Rear Facia Protector

705004820

$18.49

430

Edge Clip

517302785

$0.88

440

Torx Screw M6 X 16

250000755

$0.87

460

Stainless Steel Flat Washer

234062670

$2.11

465

Threaded Insert M6 X 1.0

250100242

Unavailable

470

Hex Torx Truss M8 X30

250000745

$3.17

480

Hex. Nut M8

232081414

$0.72

485

Flat Washer 8 mm

234081410

$0.83

490

Bottom Deflector | Except XT Models

705003399

$14.99

495

Tuflok Plastic Rivet

293150230

$1.47

500

LH Front Facia

705002885

$74.99

500

RH Front Facia

705002886

$74.99

525

Stainless, Torx Screw M6 X 30

250000842

$2.11

530

Elastic Stop Nut M6

232561434

$1.99

535

Stainless Steel Flat Washer

234062670

$2.11

540

Facia Front Support

705002891

$38.99

545

Torx Screw Truss Head K50X20 T20

250000760

$2.11

550

Torx Screw K50 X 16

250000720

$1.69

560

Stainless Steel Flat Washer

234062670

$2.11

580

Hex. Flange Screw M6 X 16

207661644

$0.74

600

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

620

Stainless Flat Washer M6

234061600

$0.33

680

Amber Reflector | Except Europe Model

705011222

$14.49

690

Flange Elastic Nut M5

233251434

$2.00

700

LH FLASHER CAP - Call your local BRP dealership | Europe

705008676

Unavailable

700

RH FLASHER CAP - Call your local BRP dealership | Model Europe

705008677

Unavailable

725

Torx Screw K50 X 16

250000720

$1.69

730

Push Nut

389804300

$0.53

900

Panel Nut M6 X 1.0

250100198

$2.11

1200

Black, LH Upper Front Mudguard | LTD

705008666

$34.99

1200

Black, RH Upper Front Mudguard | LTD

705008667

$34.99

1221

Stainless, Torx Screw M6 X 30

250000842

$2.11

1222

Stainless Steel Flat Washer

234062670

$2.11

1223

Elastic Stop Nut M6

232561434

$1.99

1500

LH Deflector | Except XT Models

705002895

$19.99

1500

LH Deflector | XT

705005113

$16.99

1540

RH Deflector

705002894

$19.99

1560

Grommet

709000582

$4.69

1580

Knob

517303439

$4.55

1600

Torx Screw K50 X 16

250000720

$1.69

1620

Rubber Stopper

708000759

$4.19

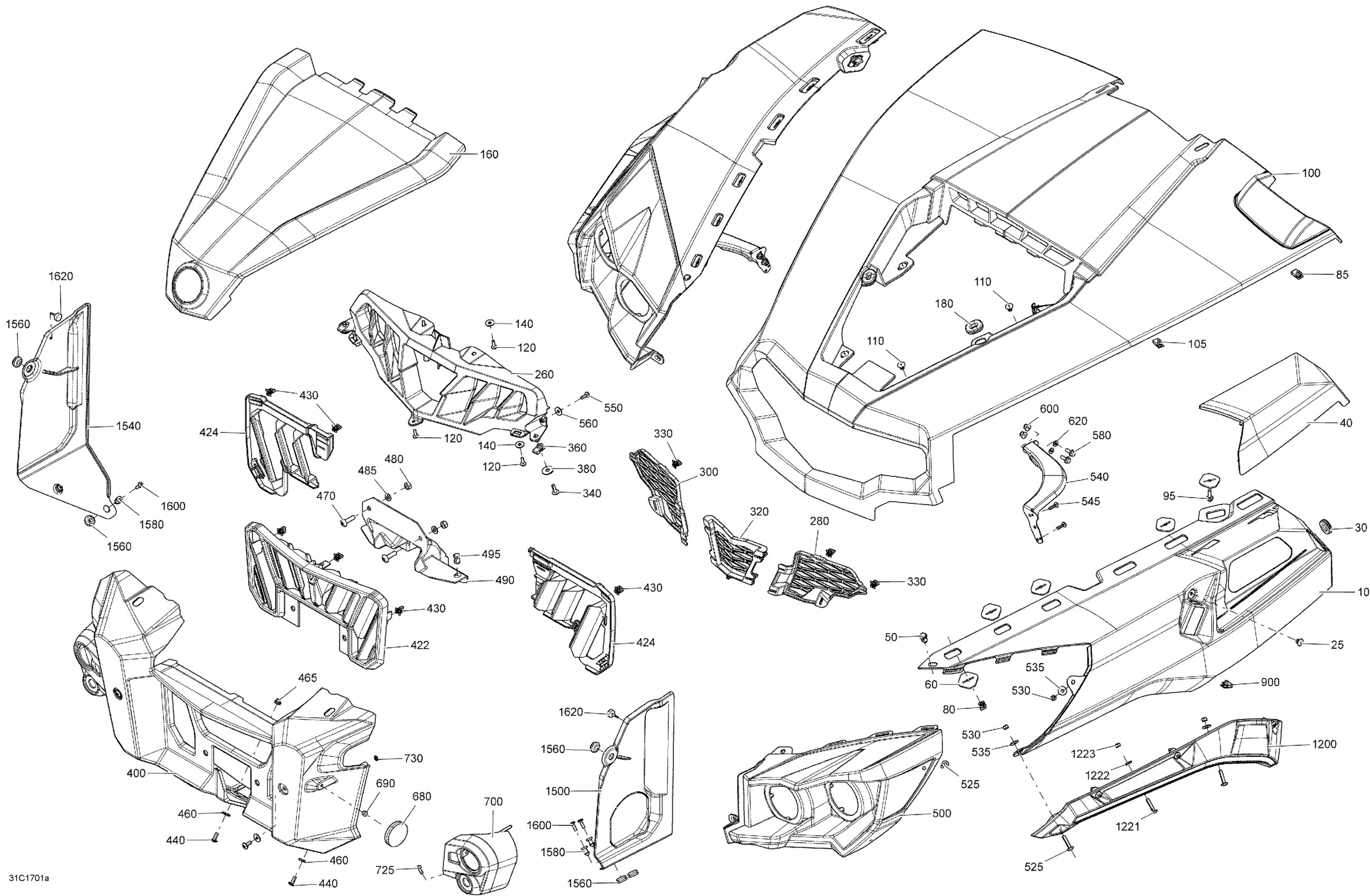

Can-Am Commander - Commander Max, 2017 09- Body And Accessories - Front, All Models Diagram
