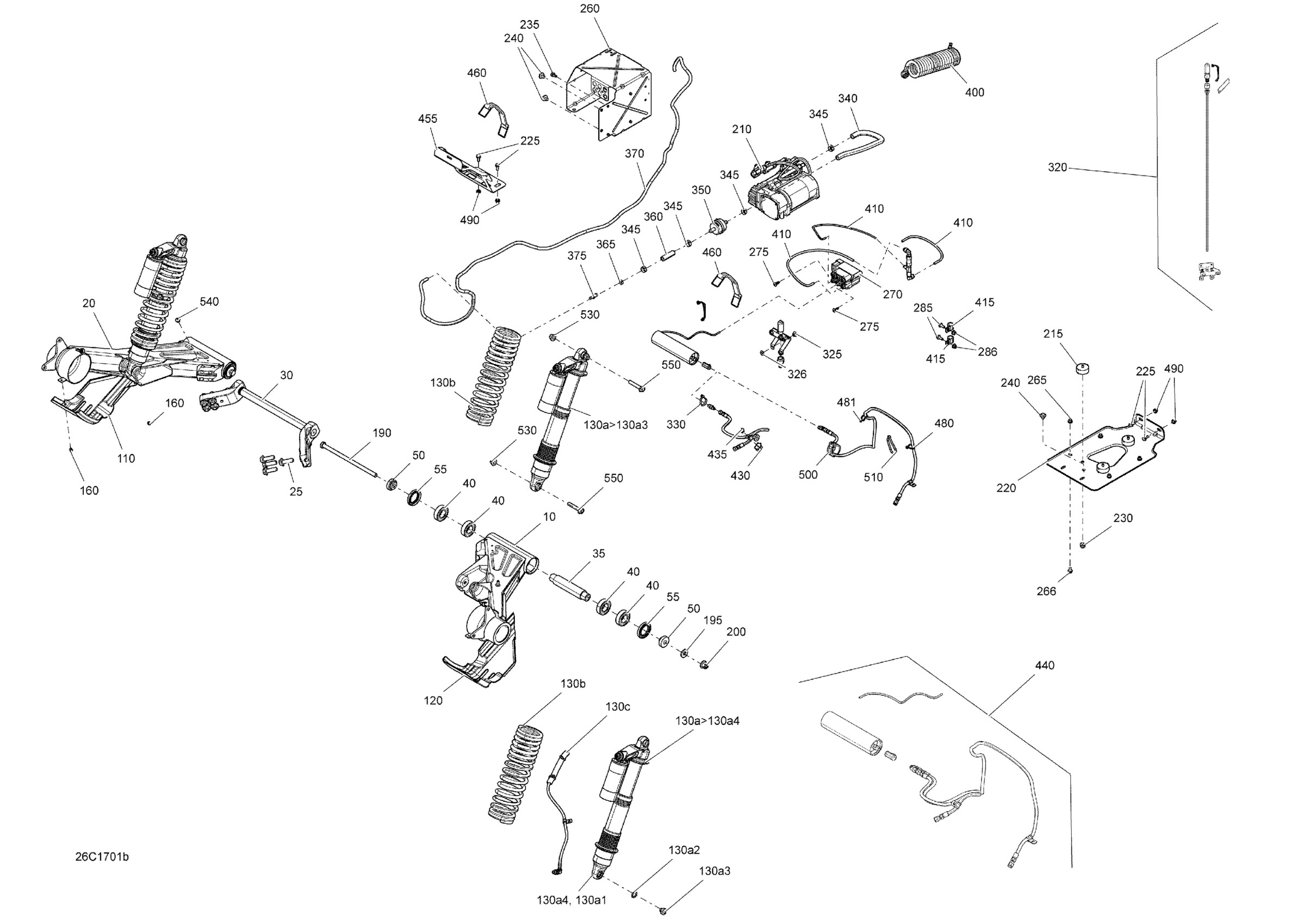

Can-Am Commander - Commander Max, 2017 08- Rear Suspension - Package LTD Diagram

#

Description
Price

10

RH Swing Arm

706001513

$190.99

20

LH Swing Arm

706001514

$190.99

25

Hex. Flange Screw M12 X 35, Scotch Grip

207523544

$3.91

30

Sway Bar Ass'y | STD, XT

706001500

$185.49

30

Sway Bar

706001718

$190.99

35

Bushing

706001529

$34.99

40

Ball Bearing

293350115

$12.11

50

Spacer

706001350

$10.49

55

Seal

293200094

$10.33

110

LH Joint Protector

706000630

$8.85

120

RH Joint Protector

706000814

$8.85

130a>130a3

Rear Shock Ass'y

706001039

$849.99

130a>130a4

Rear Shock Ass'y | Commander Max

706002610

$649.99

130a1

Spherical Bearing

715900251

$82.99

130a2

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$11.99

130a2

O-Ring Bushing

715900209

$14.75

130a3

Interior Bushing | OUT XTP

715500361

$33.99

130a3

Interior Bushing | XTP

715900210

$15.82

130a4

Retaining Ring

715900252

$12.49

130b

BLACK REAR SPRING - Call your local BRP dealership

706001040

Unavailable

130b

Black Rear Spring | Commander Max

706002580

$148.49

130c

Rear Hose Ass'y

706002299

$83.99

160

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

190

Hex. Cap Screw M12 X 241

250001031

$3.81

195

Flat Washer M12

250200120

$2.61

200

Elastic Flange Nut M12

233221416

$2.85

210

COMPRESSOR - Call your local BRP dealership

706001100

Unavailable

215

RUBBER MOUNT - Call your local BRP dealership

706001127

Unavailable

220

LOWER SUPPORT - Call your local BRP dealership

706001121

Unavailable

225

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

230

Hex. Flange Elastic Nut M8

233281414

$1.47

235

Hex. Flange Screw M6 X 12

210261250

$1.90

240

Mount Dart

293730040

$1.04

260

UPPER SUPPORT - Call your local BRP dealership

706001120

Unavailable

265

Threaded Insert M6 X 1.0

250100242

Unavailable

266

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

270

Solenoid Valve

706001104

$963.99

275

Oval Head Torx Screw K60 X 16

250000546

$2.11

285

Hex. Flange Screw M6 X 16

207661644

$0.74

286

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

320

BRACKET ASS'Y - Call your local BRP dealership

706001873

Unavailable

325

Pop Rivet 3/16"

390406500

$0.88

326

Washer

517124300

$0.19

330

Tie-Rap 180 mm

414115200

$0.11

340

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

345

Crimp Clamp

293650053

$3.09

350

Air Filter

706001141

$33.99

360

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

365

Clamp, Oetiker

293650195

$1.09

370

Polyurethane Hose 10000Mm Long

219704410

$56.99

375

Straight Fitting

293710035

$8.89

400

Auxiliary Hose

706000808

$104.99

410

PRESSURE DISTRIBUTOR ASS'Y - Call your local BRP dealership

706001144

Unavailable

415

Open Clamp

705600040

$13.24

430

Bracket

705601337

$2.69

435

Pop Rivet 3/16"

390406500

$0.88

440

Rear Shock Distributor

706001751

$299.99

455

TANK BRACKET - Call your local BRP dealership

706201524

Unavailable

460

Battery Strap

515176044

$18.49

480

Tie Wrap 142 mm

293750002

$1.25

481

Tie Wrap 142 mm

293750002

$1.25

490

Threaded Insert M6 X 1.0

250100242

Unavailable

500

Hose Retainer

293650218

$9.39

510

Tie-Rap 180 mm

414115200

$0.11

530

Hex. Flange Elastic Nut M10

233201436

$2.11

540

Pop Rivet 3/16"

390406500

$0.88

550

Hex. Flange Screw M10 X 55

207605546

$2.11

550

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207605587

Unavailable
