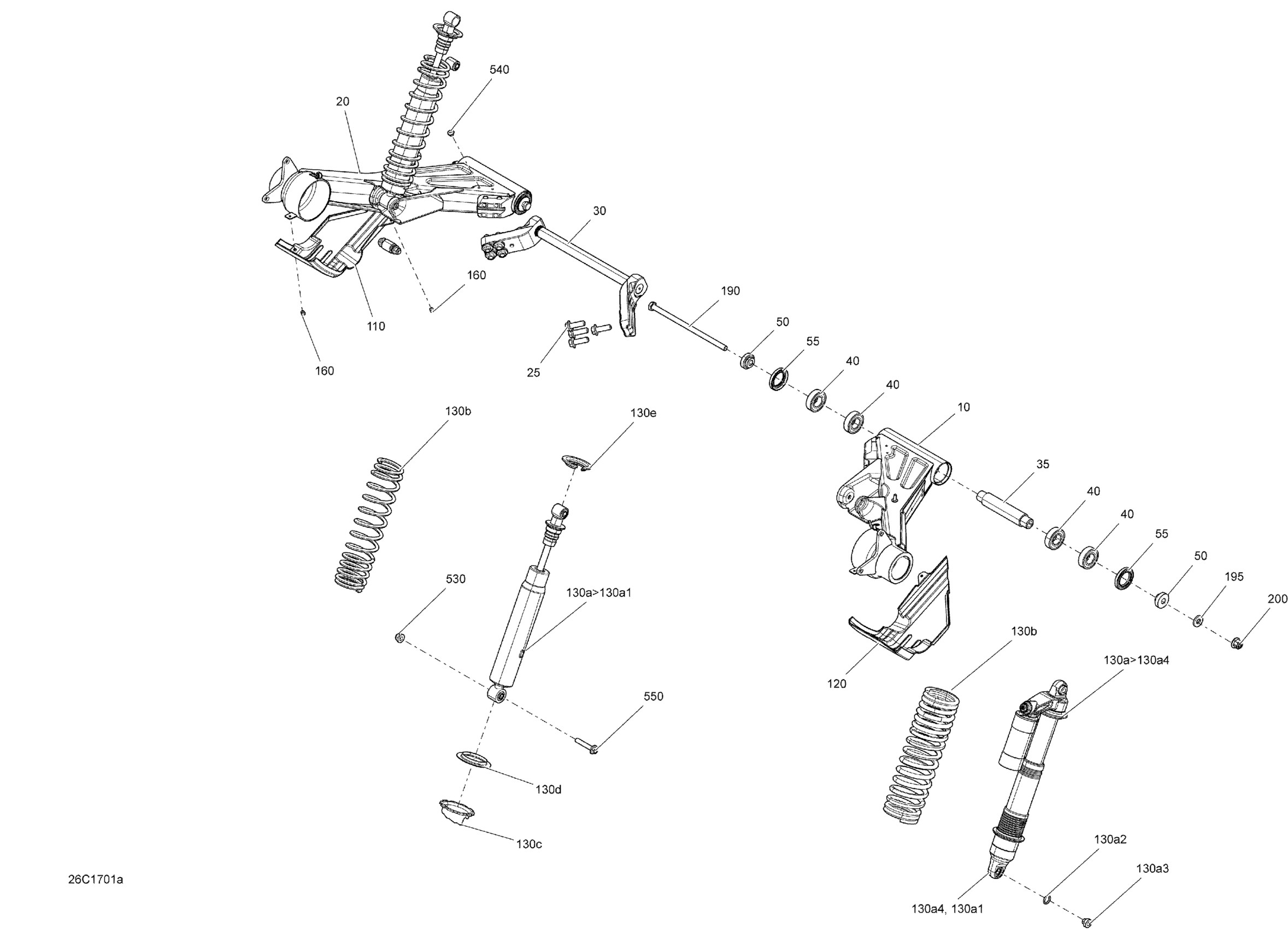

Can-Am Commander - Commander Max, 2017 08- Rear Suspension - Except Package LTD Diagram

RH Swing Arm

706001513

$190.99

LH Swing Arm

706001514

$190.99

Hex. Flange Screw M12 X 35, Scotch Grip

207523544

$3.91

Sway Bar Ass'y | STD, XT

706001500

$185.49

SWAY BAR ASS'Y - Call your local BRP dealership | X Model

706001503

Unavailable

Sway Bar

706001718

$190.99

Bushing

706001529

$34.99

Ball Bearing

293350115

$12.11

Spacer

706001350

$10.49

Seal

293200094

$10.33

LH Joint Protector

706000630

$8.85

RH Joint Protector

706000814

$8.85

Rear Shock

706001509

$206.49

Rear Shock | STD, XT

706000615

$195.99

Rear Shock | Commander XTP

706002608

$649.99

Bushing

715900122

$11.06

Spherical Bearing

715900251

$82.99

O-Ring Bushing

715900209

$14.75

Retaining Ring

715900252

$12.49

Interior Bushing | XTP

715900210

$15.82

BLACK REAR SPRING - Call your local BRP dealership | Commander Hunter

706002467

Unavailable

BLACK REAR SPRING - Call your local BRP dealership | Model-XT Magnesium, XT Camo

706001998

Unavailable

BLACK REAR SPRING - Call your local BRP dealership | X Carbon/Black Model

706001317

Unavailable

RED REAR SPRING - Call your local BRP dealership | XT Red Model

706002466

Unavailable

Red Rear Spring | Commander Max DPS

706002497

$100.49

Yellow Rear Spring | Commander XT Yellow

706002465

Unavailable

Adjustment Ring

706000910

$16.49

Protector Ring | STD, XT

706000911

$13.99

Spring Stopper

706000567

$15.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Hex. Cap Screw M12 X 241

250001031

$3.81

Flat Washer M12

250200120

$2.61

Elastic Flange Nut M12

233221416

$2.85

Hex. Flange Elastic Nut M10

233201436

$2.11

Pop Rivet 3/16"

390406500

$0.88

Hex. Flange Screw M10 X 55

207605546

$2.11
