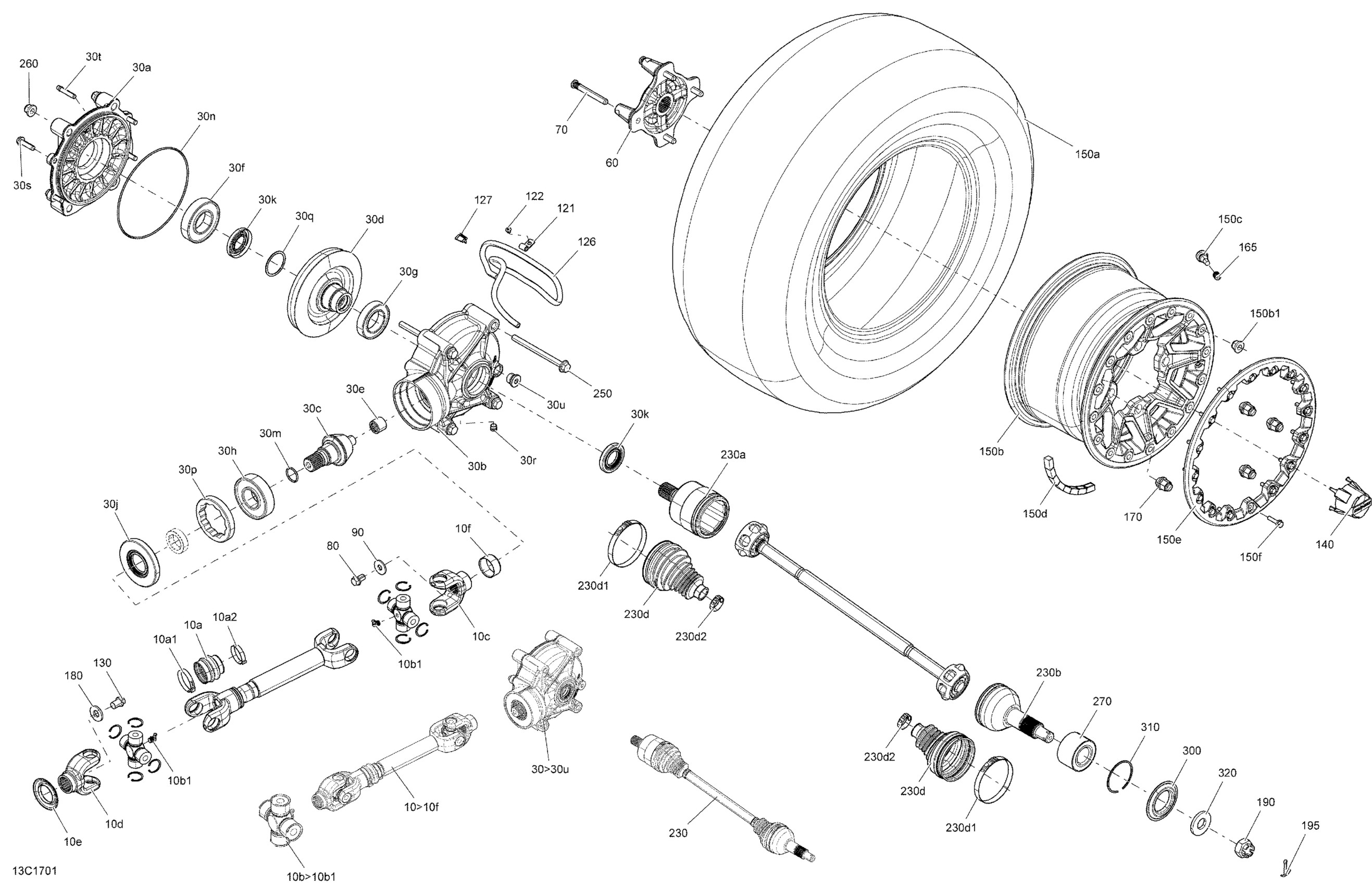

Can-Am Commander - Commander Max, 2017 08- Drive System, Rear - All Models Diagram

#

Description
Price

10>10f

Shaft Ass'y Kit

703500985

$116.49

10a

Rubber Boot

715900118

$14.30

10a1

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

10a2

Oetiker Gear Clamp 36.1MM

509000045

$8.29

10b>10b1

Universal Joint Ass'y | T3

703500846

$59.49

10b1

Grease Fitting | T3

715900295

$5.24

10c

Joint

715900271

$24.99

10d

Joint | T3

715900436

$24.99

10e

Protector

705501123

$7.55

10f

Wear Ring | 4X4

705400036

$26.49

30>30u

Final Drive Unit | Includes 30 to 30u

705502517

$1,844.49

30a

Rear Cover

705502332

$179.99

30b

Pinion Cover

705502519

$179.99

30c

10 Tooth Gear

705501871

$349.99

30d

36 Tooth Gear

705502109

$499.99

30e

Needle Bearing

705501874

$73.99

30f

Ball Bearing

705501875

$78.49

30g

Ball Bearing

705501876

$78.49

30h

Ball Bearing

705501877

$78.49

30j

Oil Seal

705501878

$36.99

30k

Oil Seal

705502110

$20.49

30m

Oil Seal

705501880

$16.38

30n

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$9.27

30p

Nut

705501882

$36.99

30q

Shim Kit

705501883

$46.99

30r

Drain Plug | After May 30, 2014

705501885

$14.22

30s

Bolt

705501886

$7.69

30t

Vent Valve

705501887

$15.36

30u

Fill Level Plug

705501889

$20.49

60

Wheel Hub | RH Except MAX Model - Except Package XTP

705502470

$116.99

60

Wheel Hub | LH Except MAX Model - Except Package XTP

705502486

$116.99

60

Wheel Hub ( 29 Splines )

705502223

$126.99

70

Wheel Stud

705401964

$11.06

70

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

70

Wheel Stud

250300060

$11.49

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

121

Open Clamp

414108400

$3.17

122

Pop Rivet 3/16"

390402200

$0.35

126

Was 293830177 Hose

219704388

$11.63

127

Clip

414227300

$1.67

130

Hex Flange Screw M12 X 16

250001039

$2.11

140

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.49

140

Wheel Cap | STD

705400921

$5.89

140

Wheel Cap

705400928

$10.49

150a

Rear Tire | XT Europe

705501295

$259.49

150a

27X11R14 Rear Tire

705502665

$259.49

150a

Rear Tire 27X11X12 | X

705502938

$254.49

150b

Rear Rim | Package-XT Int.Brush Aluminum

705502637

$206.49

150b

Rim_14 Inch B-331 X 8 | Package-DPS

705502634

$206.49

150b

Rear Rim

705502635

$191.49

150b

Black, Rear Rim

705501623

$174.99

150b

Black, Rim | XXC

705502244

$265.99

150b1

Insert | XXC

293450317

$7.29

150c

Rim Valve With Cap

705400193

$8.69

150d

1/2 Oz Weight

219704465

$3.89

150e

Black Disc Plate | Package XTP

705401866

$85.99

150f

Hex. Flange Screw M6 X 25

250000787

$2.22

165

Valve Cap

293000110

$1.59

170

Steel Wheel Nut

250100042

$3.98

170

Black, Wheel Nut M10 X 1.25

250100184

$4.51

170

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

180

Conical Spring Washer M12

250200005

$3.27

190

Castle Nut M20

250100193

$8.05

195

Cotter Pin

250400071

$2.11

230

Rear - Premium CV Axle

705502411

$243.99

230a

Plunging Joint

715900433

$259.49

230b

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230d1

Oetiker Clamp, 82.1 mm

715900241

$10.33

230d2

Oetiker Clamp, 27.3 mm

715900242

$10.33

250

Hex. Flange Screw M10 X 125

230602546

$7.41

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

300

Wear Sleeve | 4X4

705501121

$7.90

310

Circlip

293370019

$4.68

320

Washer M20

250200147

$13.24
