Description

Price

15

Suspension Upper Arm

706200796

$190.99

20

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

30

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

31

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

35

Bushing

706202445

$14.30

40

Cushion

706201062

$2.30

45

Wear Plate

706201063

$0.95

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Hex. Cap Screw M10 X 225

250001032

$12.64

66

Washer

503190439

$5.93

70

LH Lower Suspension Arm

706200742

$190.99

70

RH Lower Suspension Arm

706200744

$190.99

75

Ball Joint

706202045

$35.99

80

Grease Fitting

408200700

$3.49

130a

Front Shock | XT Yellow Model

706200782

$195.99

130a

Front Shock | STD

706200780

$206.49

130a1

Bushing

715900122

$11.06

130a

Front Shock

706201758

$206.49

130a

Front Shock | Package XTP

706202738

$689.99

130b

BLACK FRONT SPRING - Call your local BRP dealership | XT Camo Model

706201369

Unavailable

130b

Black, Front Spring | Commander MAX Package XT

706202774

$100.49

130b

RED FRONT SPRING - Call your local BRP dealership | XT Red Model

706201367

Unavailable

130b

RED FRONT SPRING - Call your local BRP dealership | STD Model

706201631

Unavailable

130b

Black, Front Spring | X Carbon/Black Model

706201617

$100.49

130b

VIPER RED FRONT SPRING - Call your local BRP dealership | Commander MAX Package DPS

706202615

Unavailable

130b

YELLOW FRONT SPRING - Call your local BRP dealership | XT Yellow Model

706200860

Unavailable

130c

Adjustment Ring

706000910

$16.49

130d

Protector Ring | STD, XT

706000911

$13.99

130e

Spring Stopper

706000567

$15.99

160

RH Protector

706201670

$17.54

160

LH Protector

706201669

$17.54

205

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

260

Hex. Flange Screw M10 X 50

207605044

$5.29

270

Hex. Flange Elastic Nut M10

233201414

$1.58

280

Sway Bar Ass'y | X

706202560

$99.49

290

LH Sway Bar Link | X

706202536

$67.99

290

RH Sway Bar Link | X

706202537

$67.99

320

Stabilizer Bushing | X

706201086

$8.08

330

Clamp | X

706201087

$12.16

340

U-clamp | X

506060600

$17.80

345

Hex. Flange Elastic Nut M8

233281414

$1.47

350

Hex. Flange Elastic Nut M10

233201436

$2.11

500

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207605587

Unavailable

510

Hex. Flange Elastic Nut M10

233201436

$2.11

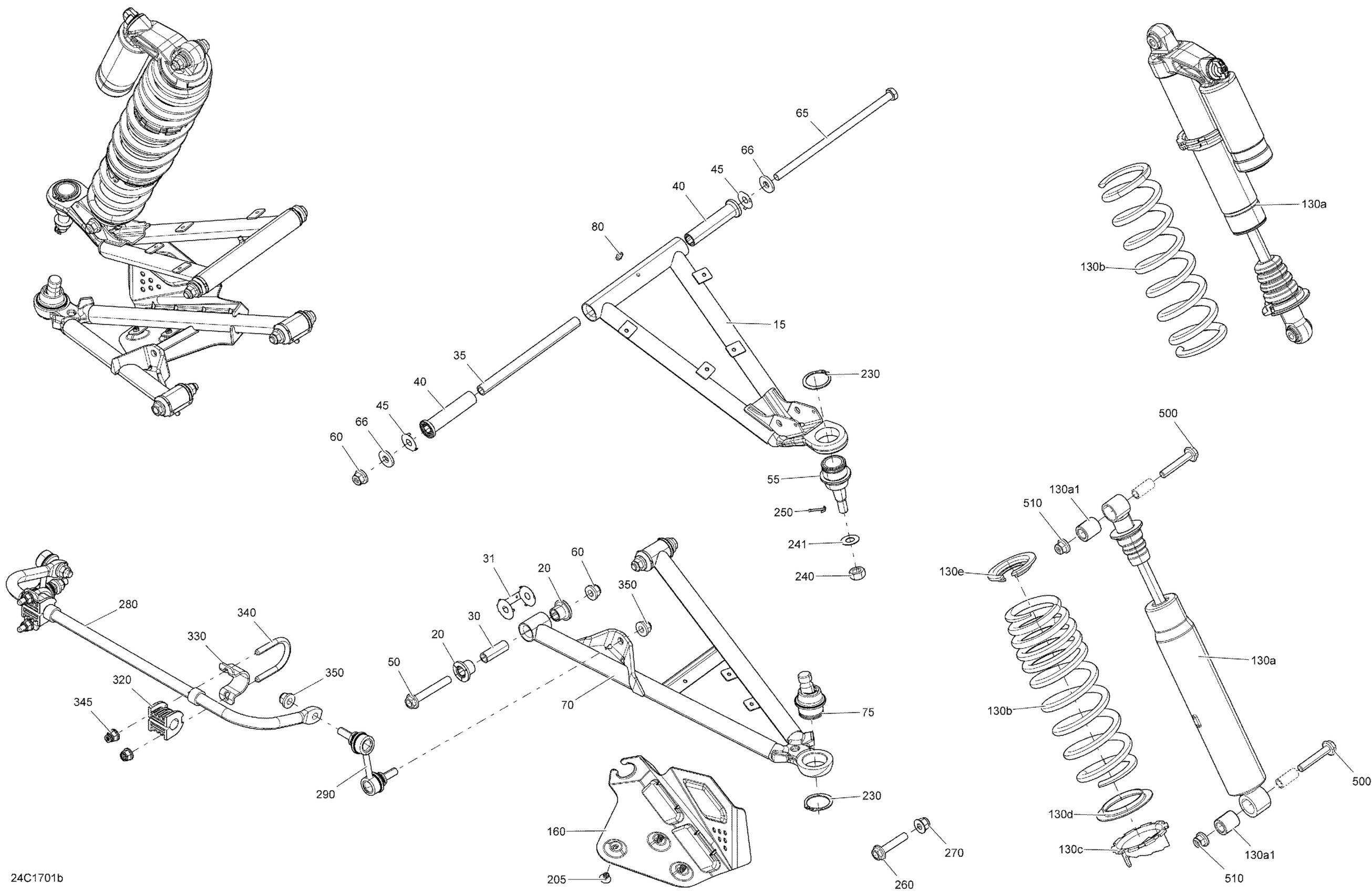

Can-Am Commander - Commander Max, 2017 07- Front Suspension - Except Package LTD Diagram

Suspension Upper Arm

Suspension Arm Bushing Kit | Includes 4

Suspension Arm Bushing Kit | Includes 4

Suspension Arm Bushing Kit | Includes 4

Bushing

Cushion

Wear Plate

Hex. Flange Screw M10 X 70

Ball Joint

Hex. Flange Elastic Nut M10

Hex. Cap Screw M10 X 225

Washer

LH Lower Suspension Arm

RH Lower Suspension Arm

Ball Joint

Grease Fitting

Front Shock | XT Yellow Model

Front Shock | STD

Bushing

Front Shock

Front Shock | Package XTP

BLACK FRONT SPRING - Call your local BRP dealership | XT Camo Model

Black, Front Spring | Commander MAX Package XT

RED FRONT SPRING - Call your local BRP dealership | XT Red Model

RED FRONT SPRING - Call your local BRP dealership | STD Model

Black, Front Spring | X Carbon/Black Model

VIPER RED FRONT SPRING - Call your local BRP dealership | Commander MAX Package DPS

YELLOW FRONT SPRING - Call your local BRP dealership | XT Yellow Model

Adjustment Ring

Protector Ring | STD, XT

Spring Stopper

RH Protector

LH Protector

Pop Rivet 3/16" | DS 650 X

Circlip

Nut M12

Hardened Washer

Cotter Pin

Hex. Flange Screw M10 X 50

Hex. Flange Elastic Nut M10

Sway Bar Ass'y | X

LH Sway Bar Link | X

RH Sway Bar Link | X

Stabilizer Bushing | X

Clamp | X

U-clamp | X

Hex. Flange Elastic Nut M8

Hex. Flange Elastic Nut M10

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

Hex. Flange Elastic Nut M10
