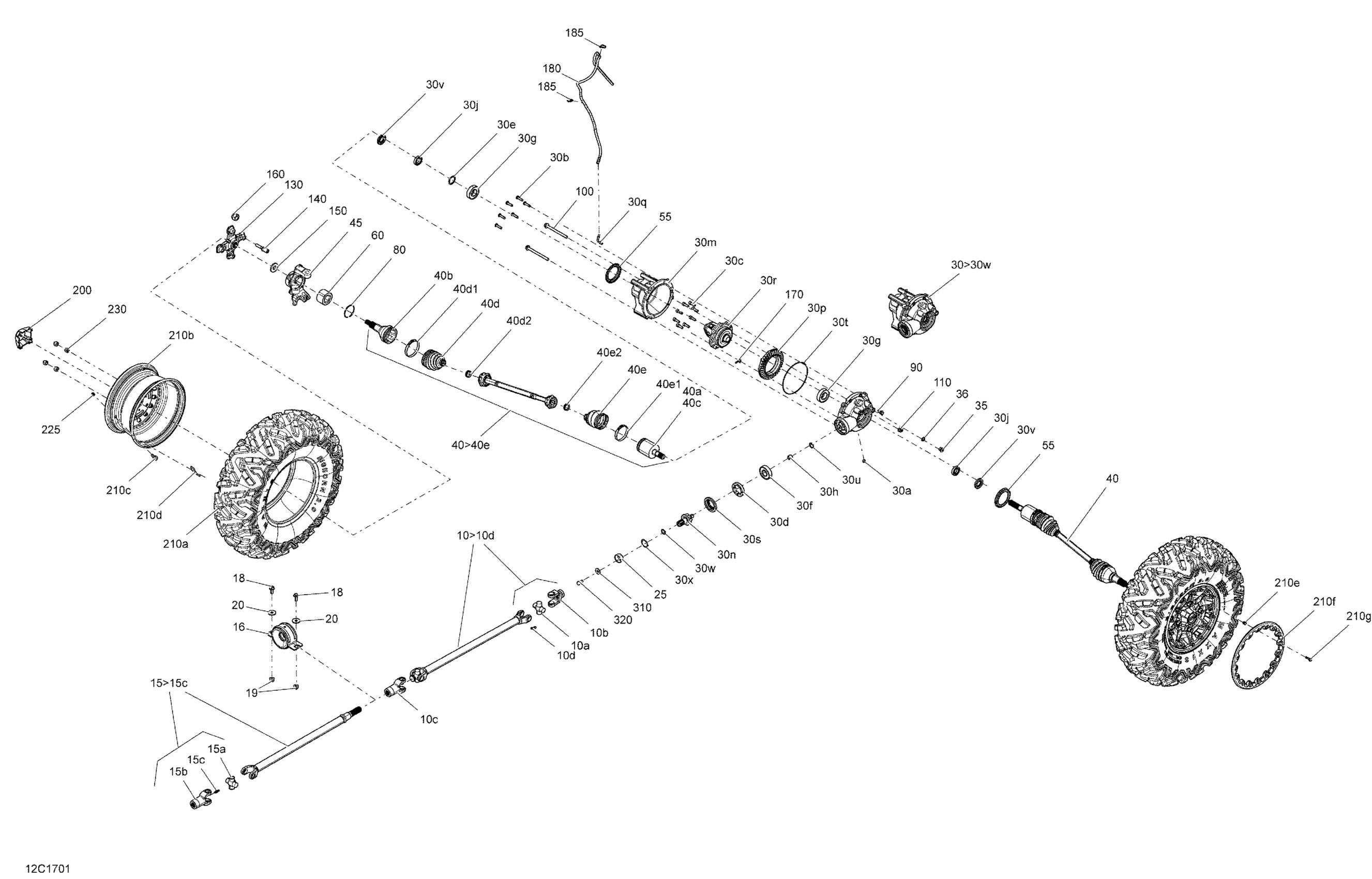

Can-Am Commander - Commander Max, 2017 07- Drive System, Front - All Models Diagram

Axle Drive Ass'y

705402066

$259.49

U-Joint Cross Kit | Engine 450

715900435

$78.49

Fixed Yoke Joint

715900116

$59.49

Yoke Joint | Cover 715900483

715900231

$26.49

Grease Fitting

703500815

$5.24

Drive Axle Ass'y | Model-COM-MAX

705402041

$413.49

U-Joint Cross Kit | Engine 450

715900435

$78.49

Yoke Joint | Cover 715900483

715900231

$26.49

Grease Fitting

703500815

$5.24

Ball Bearing | Model-COM-MAX

705401646

$62.49

Hex. Flange Screw M10 X 25

207602544

$1.69

Hex. Flange Elastic Nut M10

233201414

$1.58

Washer

503032900

$3.28

Wear Ring | 4X4

705400036

$26.49

Front Differential | Includes 8 to 31

703500907

$1,579.99

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

Drain Plug | After May 30, 2014

705501885

$14.22

Screw | 4X4

705401601

$10.49

Screw | After May 30, 2014

705401602

$6.19

Nut | 4X4

705401603

$35.99

Shim | 4X4

705401604

$57.99

Ball Bearing | After May 30, 2014

705401605

$31.99

Ball Bearing | 4X4

705401606

$51.99

Ball Bearing | After May 30, 2014

705402848

$49.99

Ball Bearing | After May 30, 2014

705401608

$51.99

Front Cover | After May 30, 2014

705401610

$149.99

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

Gear 36 Teeth | After May 30, 2014

705401612

$409.99

Vent Valve | After May 30, 2014

705401613

$16.49

Differential | Package-STD

705402184

$977.49

Differential | Package-DPS, XT, XTP

705402182

$1,128.49

Oil Seal | After May 30, 2014

705401615

$19.49

Seal | After May 30, 2014

705401616

$14.28

O'Ring | After May 30, 2014

705401617

$7.20

Gasket | 4X4

705401618

$18.49

Shim

705401769

$7.69

Shim

705401770

$7.09

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

RH Front - Premium CV Axle | Includes 30 to 36

705401872

$243.99

LH Front - Premium CV Axle | Includes 39 to 45

705401871

$243.99

LH Plunging Joint

715900430

$259.49

RH Plunging Joint

715900431

$259.49

CV Joint

715900427

$259.49

Circlip Joint | Not shown

705401349

$6.50

Boot Kit, Wheel Side

705401345

$42.49

Oetiker Clamp

715900282

$5.29

Oetiker Clamp, Small

715900283

$5.29

Boot Kit, Differential Side

705401346

$42.49

Oetiker Clamp, Large

715900284

$5.29

Oetiker Clamp, Small

715900261

$5.29

LH Front Knuckle

705401548

$132.49

RH Front Knuckle

705401549

$104.99

Wear Sleeve

705400780

$7.90

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M10 X 125

230602546

$7.41

Hex. Flange Elastic Nut M10

233201436

$2.11

Wheel Hub

705401314

$132.49

Wheel Hub

705501900

$132.49

Wheel Stud

250300060

$11.49

Wheel Stud

705401964

$11.06

Conical Spring Washer M18

250200171

$7.65

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400071

$2.11

Polyurethane Hose 10000Mm Long

219704410

$56.99

Tie Wrap 142 mm

293750002

$1.25

Wheel Cap | STD

705400921

$5.89

Wheel Cap

705400928

$10.49

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.49

Front Tire | XT Europe

705400961

$248.99

Front Tire

705402168

$248.99

Front Tire 27X9X12 | X

705402560

$238.49

Black, 12" X 6" Rim | STD Model

705401217

$129.99

Rim_14 Inch B-331 X 7 | Package-XT White North America

705402118

$179.99

Front Rim | Package-XT International Brush Aluminum

705402120

$216.99

Black, Rim | XXC

705401678

$260.99

Black Front Rim

705401563

$179.99

Rim Valve With Cap

705400193

$8.69

1/2 Oz Weight

219704465

$3.89

Insert | XXC

293450317

$7.29

Black Disc Plate | Package XTP

705401866

$85.99

Hex. Flange Screw M6 X 25

250000787

$2.22

Valve Cap

293000110

$1.59

Black, Wheel Nut M10 X 1.25

250100184

$4.51

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

Steel Wheel Nut

250100042

$3.98

Flat Washer M10 | 4X4

250200014

$1.49

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44
