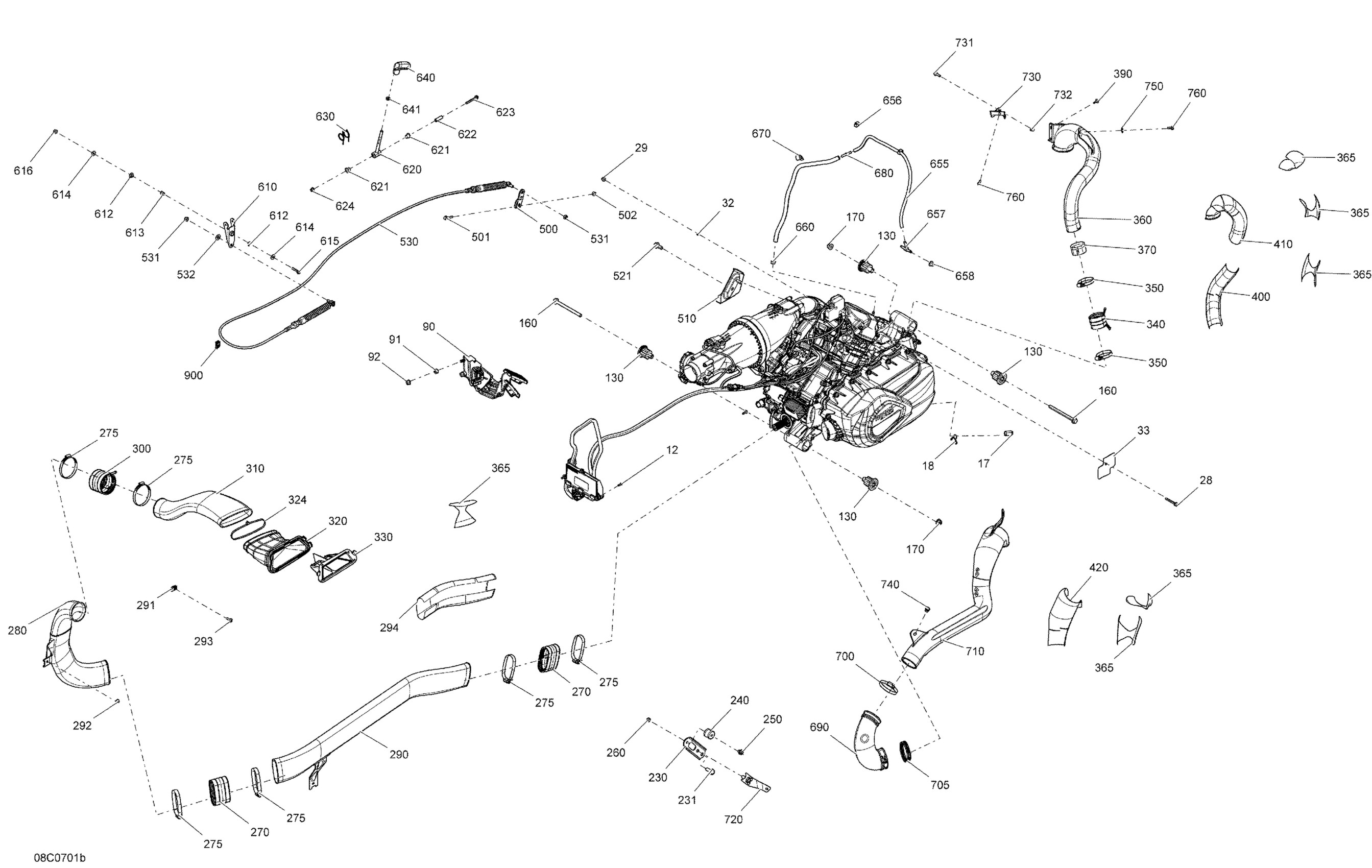

Can-Am Commander - Commander Max, 2017 01- Engine - Commander MAX Diagram

#

Description
Price

12

Torx Screw K50 X 16

250000720

$1.69

17

Plug

707001185

$1.15

18

Retainer Clip

707800506

$12.63

28

Hex. Flange Screw M6 X 50

207665044

$4.12

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

External Serrated Lock Washer 6 mm

234461608

$1.15

33

Insulator Pad

710000073

$11.12

90

Accelerator Pedal

707001166

$274.99

91

Bushing

707000848

$1.35

92

Hex. Flange Nut M8

233081416

$1.15

130

Anti Vibration Buffer

707001170

$20.99

160

Hex. Flange Screw M10 X 125

230602546

$7.41

170

Hex. Flange Elastic Nut M10

233201436

$2.11

230

Upper Engine Bracket

707000707

$8.79

231

Hex. Flange Screw M10 X 25

207602544

$1.69

240

Rubber Isolator

707000949

$11.49

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

260

Hex. Elastic Stop Nut M8

232581414

$0.56

270

Flexibale Adaptor

707002585

$10.99

275

Norma Clamp

293650091

$11.12

280

Air Inlet

707001339

$20.99

290

Air Inlet

707001228

$54.99

291

Panel Nut M6 X 1.0

250100198

$2.11

292

Flat Washer

250200082

$0.42

293

Torx Screw M6 X 20

250000722

$1.68

294

Reflector

707001346

$30.99

300

Flexibale Adaptor

707002585

$10.99

310

Primary Air Intake

707000909

$22.49

320

Adaptor

707000908

$35.99

324

Tie Wrap 368 mm

293750008

$1.04

330

CVT Filter

707001344

$15.49

340

Adaptor

707001274

$16.25

350

Norma Gear Clamp

293650118

$13.16

360

CVT Outlet

707001243

$66.99

365

Reflective Sheet

707000991

$10.49

370

Reflector

707000988

$4.14

390

Screw M4 X 16

250000725

$3.49

400

Reflector

707001284

$9.23

410

Reflector

707001360

$9.23

420

Reflector

707001286

$9.23

500

Lever

707000911

$20.49

501

Hex. Flange Screw M6 X 35

207663544

$0.90

502

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

510

Cable Support | Engine 1000

707000919

$16.87

510

Cable Support | Engine 800

707000921

$16.87

521

Hex. Flange Screw M10 X 25

207602544

$1.69

530

Shifting Cable

707001283

$67.99

531

Hex. Elastic Stop Nut M8

232581414

$0.56

532

Flat Washer 10 mm

234001410

$1.26

610

Lower Lever Arm

707000828

$19.99

612

Flanged Bushing

707000847

$1.25

613

Bushing

707000801

$2.68

614

Flat Washer 6 mm

234062410

$0.77

615

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

616

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

620

Upper Lever Arm

707000711

$39.99

621

Flanged Bushing

707000869

$2.89

622

Bushing

707001376

$5.24

623

Hex. Flange Screw M6 X 50

207665044

$4.12

624

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

630

Lever Arm Spring

707000750

$2.68

640

Lever Handle

707000284

$19.99

641

Hex. Jam Nut M8

232180491

$7.51

655

Polyurethane Hose 10000Mm Long

219704410

$56.99

656

Clip

414227300

$1.67

657

Y-Fitting

293710059

$9.69

658

Grommet

293720029

$1.59

660

Spring Clamp

414415200

$0.88

670

Open Clamp

518321570

$7.69

680

Straight Fitting

293710039

$7.59

690

Front Adaptor

707001229

$22.49

700

Norma Gear Clamp

293650118

$13.16

705

Norma Clamp

293650091

$11.12

710

CVT Outlet

707001230

$49.99

720

Front Support

707001231

$15.81

730

Rear Support

707001232

$10.99

731

Hex. Flange Screw M6 X 20

207662044

$2.00

732

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

740

Tuflok Plastic Rivet

293150230

$1.47

750

Flat Washer 6 mm

234062410

$0.77

760

Hex. Flange Screw M6 X 16

210261650

$1.67

900

Clip Tie-Rap

710002899

$8.49
