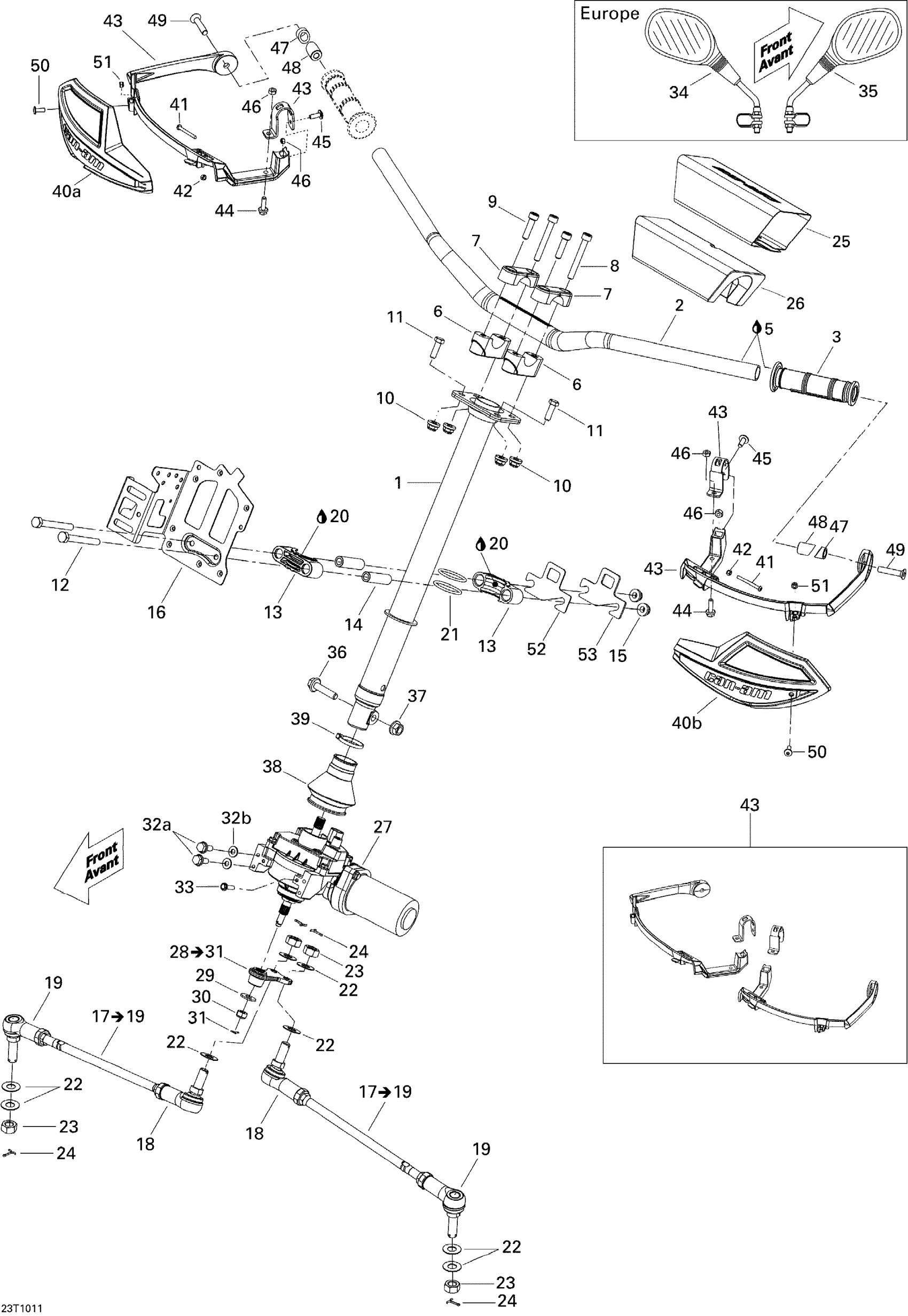

Can-Am Renegade 800R EFI Xxc, 2010 07- Steering Diagram

#

Description
Price

1

Tube-Main

715900573

$129.99

2

Aluminum Handle Bar

709400513

$63.49

3

Handle Grip

709400493

$14.83

5

Loctite 406, 7 Oz

293800100

$36.99

6

Lower Mounting Clamp

709402750

$25.99

7

Support

709400496

$22.49

8

Socket Head Screw M8 X 60

205086060

$4.12

9

Socket Screw M8 X 30

205083060

$2.96

10

Hex. Elastic Flange Nut M8

233281416

$1.48

11

Hex. Screw M8 X 30

207183060

$1.58

12

Hex. Screw M8 X 70

207087044

$2.19

13

Half Bushing

709400471

$14.30

14

BUSHING - Call your local BRP dealership

709400072

Unavailable

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

17

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

18

LH Ball Joint

709402303

$36.99

19

Ball Joint, RH Threads

709400487

$52.99

20

Synthetic Grease, 400 G

293550010

Unavailable

21

O-Ring

293300068

$7.65

22

Hardened Washer

706200281

$2.85

23

Nut M12

250100099

$2.09

24

Cotter Pin

211400013

$0.37

25

Cover B-190

709402414

$30.99

26

Foam

709400422

$17.49

27

Electric Power Steering Module Ass'y

709400816

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32a

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

32b

Conical Spring Washer M8

234281474

$1.48

33

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$2.00

34

LH Mirror | Europe

709400406

$32.99

35

RH Mirror | Europe

709400407

$47.49

36

Hex. Flange Screw M8 X 35

207683544

$1.69

37

Hex. Flange Elastic Nut M8

233281414

$1.47

38

Bellows

709400674

$18.99

39

Tie-Rap 180 mm

414115200

$0.11

40a

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

40b

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

41

Socket Head Screw M4 X 40 | X

205444086

$1.69

42

Elastic Stop Nut M4

232541414

$0.58

43

Air Deflector Support Kit | X

715001378

$138.49

44

Hex. Flange Screw M6 X 20

207662044

$2.00

45

Torx Screw M6 X 16

250000223

$2.11

46

Hex. Elastic Stop Nut M6

232561600

$1.15

47

Small Bracket | DS 650 X

709400161

$21.99

48

Large Bracket | DS 650 X

709400162

$20.99

49

Socket Head Screw | X

205384034

$6.49

50

Torx Screw M5 X 14

250000742

$1.47

51

Hex. Elastic Nut M5 | X

232551600

$1.15

52

SHIM 2 MM - Call your local BRP dealership

709400734

Unavailable

53

SHIM 1 MM - Call your local BRP dealership

709400735

Unavailable
