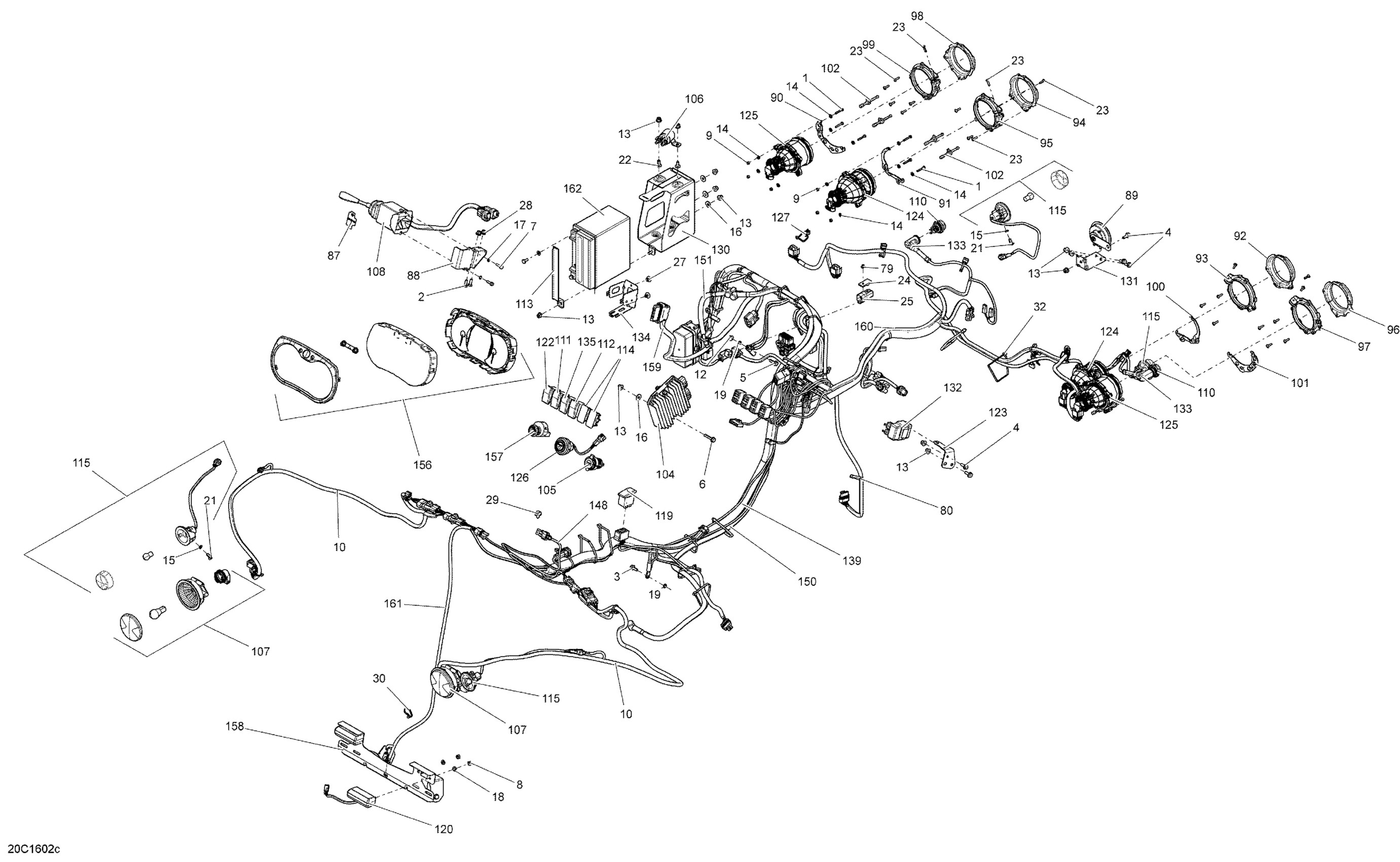

Can-Am Maverick - Maverick MAX, 2016 10- Electrical System - XDS-XRS Diagram

#

Description
Price

1

Hex. Screw M4 X 25

207142544

$2.00

2

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

4

Hex. Flange Screw M6 X 16

207661644

$0.74

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

7

Hex. Forming Screw M5 X 16

210251650

$1.15

8

Hex. Nut M6

232061600

$1.15

9

Elastic Stop Nut M4

232541414

$0.58

10

WIRING HARNESS REAR - Call your local BRP dealership

710004685

$44.99

10

WIRING HARNESS REAR - Call your local BRP dealership

710004686

Unavailable

11

Elastic Stop Nut M6

232561434

$1.99

12

Hex. Flange Nut M6

233061414

$1.68

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Flat Washer M5

234051410

$0.53

15

Flat Washer 6 mm

234061410

$1.36

16

Flat Washer 6 mm

234062410

$0.77

16

Stainless Steel Flat Washer

234062670

$2.11

17

Lock Washer 5 mm | Europe

234151401

$0.55

18

Lock Washer Helical M6

234161601

$1.15

19

External Serrated Lock Washer 6 mm

234461608

$1.15

20

Panel Nut M6 X 1.0

250100198

$2.11

21

Torx Truss M6X14

250000789

$5.39

22

Torx Head Screw M6 X 16

250000717

$2.11

23

Phillips Screw K40 X 16

250000723

$0.98

24

Clip

270000141

$11.49

25

Diagnostic Connector

278002704

$19.49

26

Starter Relay

278003012

$42.49

27

Pop Rivet 3/16"

293150103

$0.55

28

Threaded Insert M6 X 1.0

250100242

Unavailable

29

Mount Dart

293730040

$1.04

30

Tie Wrap 142 mm

293750002

$1.25

32

Tie Wrap 368 mm

293750008

$1.04

77

Tie-Rap 173 mm

293750009

$1.04

79

Pop Rivet 3/16"

390402400

$0.35

80

Tie-Rap 180 mm

414115200

$0.11

86

Clip

414227300

$1.67

87

Flasher Decal | Europe

704902614

$19.99

88

Flasher Arm Support | Europe

709400810

$29.49

89

Horn

710004791

$38.99

90

LH High Light Support

710001036

$5.29

91

LH Low Light Support

710001037

$9.09

92

RH Low Front Housing

710001081

$19.99

93

RH Low Rear Housing

710001082

$12.99

94

LH Low Front Housing

710001083

$19.99

95

LH Low Rear Housing

710001084

$12.99

96

RH High Front Housing

710001085

$19.99

97

RH High Rear Housing

710001086

$12.99

98

LH High Front Housing

710001087

$19.99

99

LH High Rear Housing

710001088

$12.99

100

RH Low Light Support

710001094

$9.09

101

RH High Light Support

710001115

$5.29

102

Setting Screw

710001147

$12.71

104

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

105

DC Outlet

710001248

$37.99

106

Starter Relay

710007777

$48.49

107

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

107a

Bulb

520000758

$9.10

108

Turn Signal | Europe

710001721

$209.99

109

Hi/Low Switch | Except Europe

710001725

$21.49

110

Day Light | Europe

710001726

$35.99

111

4X4 Switch

710001737

$31.99

112

Switch DPS

710001781

$22.99

113

Battery Holder

710001916

$21.99

114

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

115

Flasher | Europe

710002964

$35.99

119

Switch, Over ride

710002053

$19.49

120

License Light

710002055

$58.49

120a

Bulb

219800128

$2.46

122

Switch Hazard | Europe

710002076

$19.49

123

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

124

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

124a

Halogen Bulb

415129249

$41.49

125

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

125a

Halogen Bulb

415129249

$41.49

126

Engine Start Button

710002594

$60.49

127

Tie-Rap Clip

710002896

$4.39

130

Battery Support

710003129

$48.99

131

SUPPORT - Call your local BRP dealership | Europe

710003170

Unavailable

132

Flasher Unit

710003239

$78.49

133

Cap Protector | Model-Europe

710003269

$12.11

134

Fuse Holder

710003335

$10.11

135

Switch PPS Sport

710003541

$19.49

136

Cap

710003582

$11.99

137

Battery Rubber Pad

710003602

$12.99

139

Harness Ass'y

710005094

Unavailable

148

WIRING HARNESS ASSY - Call your local BRP dealership

710004349

Unavailable

150

Positive Cable

710004383

$42.99

151

POSITIVE CABLE - Call your local BRP dealership | Package DPS MAX Model

710004920

Unavailable

151

Positive Cable | Package STD

710004384

$35.99

151

POSITIVE CABLE - Call your local BRP dealership | Package DPS Except MAX Model

710004878

Unavailable

153

Positive Cable

710004390

$36.99

154

Positive Cable | Model-DPS

710004393

$35.99

156

Multifunction Speedometer | XRS, XRS DPS

710004547

$439.99

157

Ignition Switch

710008400

$78.49

157

Switch_Ignition | Model-Europe

710007865

$68.99

158

LIGHT SUPPORT - Call your local BRP dealership

710004573

Unavailable

159

Wiring Harness Assy

710005095

$1,449.99

160

Harness Ass'y | Europe

710004346

$429.99

161

WIRING HARNESS ASSY - Call your local BRP dealership | Europe

710004687

Unavailable

162

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99
