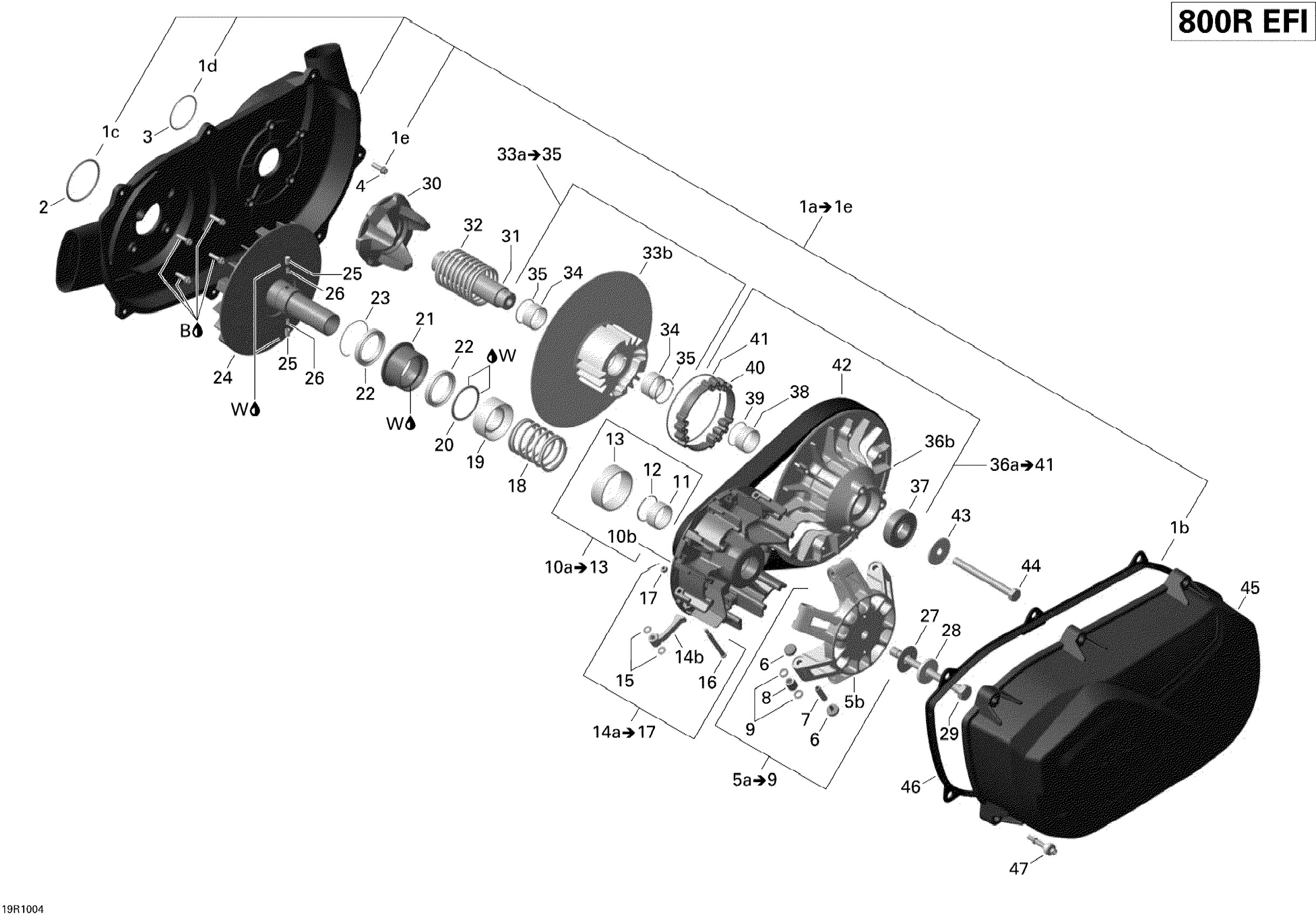

Can-Am Renegade 800R EFI Xxc, 2010 05- Transmission V2 Diagram

#

Description
Price

1a

CVT Air Guide Kit

420611407

$134.99

1b

Gasket

420430126

$41.49

1c

O-Ring

420430408

$5.29

1d

O-Ring

420631089

$5.29

1e

Hex.Screw M6 X 20

420441311

$5.18

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5a

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

5b

Not Available As Spare Part - Friction Washer

Unavailable

6

Slider Shoe Set

420281296

$65.49

7

Roller Axle

417223257

$6.99

8

Roller

417223767

$11.59

9

Roller

417223767

$11.59

10a

Outer Haft

420280467

$329.99

10b

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14a

Centrifugal Lever Set | Includes 14a to 17

420248497

$154.49

14b

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Compression Spring, Drive Pulley

420238610

$26.49

19

Seat Spring

420627578

$35.99

20

Friction Washer

420460430

$13.99

21

Drive Pulley Clutch

420257195

$114.99

22

Ball Bearing

420632377

$49.99

23

Retaining Ring

420245951

$5.31

24

Inner Half

420280374

$339.99

25

Spring Sleeve

420229577

$18.49

26

Spring

420239134

$3.06

27

Thrust Washer

420627920

$7.51

28

Spring Washer

420627768

$21.99

29

Hex. Screw M12 X 140

420641859

$24.99

30

Cam

420280473

$137.99

31

Driven Pulley Shaft

420220914

$129.99

32

Compression Spring

420238176

$35.99

33a

Inner Half Ass'y | Includes 33a to 35

420280499

$309.99

33b

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

36b

Not Available As Spare Part - Friction Washer

Unavailable

37

Ball Bearing

420932421

$28.49

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Torque Gear

420660124

$23.49

41

Retaining Ring

420245911

$5.31

42

V-Belt

422280366

$179.99

43

Thrust Washer

420627590

$16.99

44

Hex. Screw M10 X 110

420441485

$12.18

45

Variator Cover

420611397

$219.99

46

Gasket

420430126

$41.49

47

Allen Screw M6 x 30,5

420440561

$4.44

B

Loctite 243, 10 ml

293800060

$21.49

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
