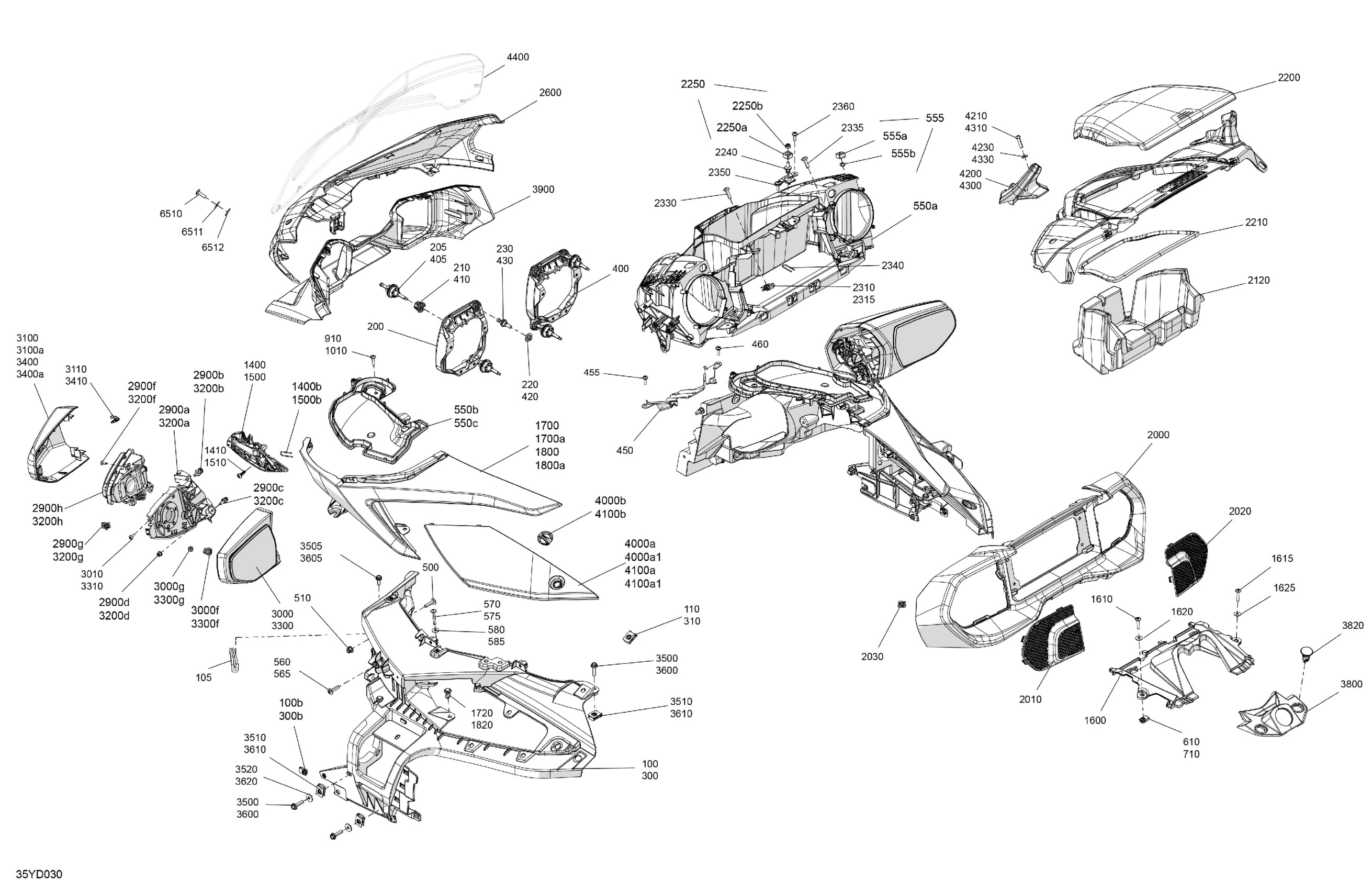

Can-Am Australia - F3 LIMITED - Dark Edition - H8RC - LIMITED - Monolith Black, 2024 07- Body - Console Diagram

LH Console Support Ass'y | Includes 100 to 100b

708400730

$99.99

Panel Nut M5 X 0.8

250000958

$4.23

Trim 1000Mm Long

219704354

$15.99

Panel Nut M6 X 1.0

250100208

$1.46

LH Front Headlight Support

708400748

$5.99

Adjuster

708400814

$10.99

Retaining Ring

708400823

Unavailable

Large Shoulder Nut M6

705014119

$6.14

Ball Stud

705018616

$19.49

RH Console Support Ass'y | Includes 300 to 300b

708400731

$109.99

Panel Nut M5 X 0.8

250000958

$4.23

Panel Nut M6 X 1.0

250100208

$1.46

RH Front Headlight Support

708400749

$5.99

Adjuster

708400814

$10.99

Retaining Ring

708400823

Unavailable

Large Shoulder Nut M6

705014119

$6.14

Ball Stud

705018616

$19.49

GPS Support

708400864

$44.99

Torx Screw K50 X 16

250000720

$1.69

Torx Screw K50 X 16

250000720

$1.69

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Upper Console

708400733

$114.99

LH Enclosure Cover

708400734

$19.99

RH Enclosure Cover

708400735

$19.99

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

Elastic Stop Nut M6, Brass

232561200

$4.23

Torx Truss Screw M6 X 25

250000807

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Torx Screw Nylon

250000732

$2.11

Torx Screw Nylon

250000732

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

Stainless Steel Flat Washer M5

234052670

$1.01

Panel Nut M5 X 0.8

250000958

$4.23

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 20

250000724

$1.69

Torx Screw M5 X 20

250000724

$1.69

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$27.99

Spring

705006661

$3.39

Torx Screw Truss Head K50X20 T20

250000760

$2.11

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$27.99

Spring

705006661

$3.39

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Column Fairing

708400108

$17.99

Torx Screw M5 X 25

250000762

$2.11

Torx Screw M5 X 25

250000762

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

Stainless Steel Flat Washer M5

234052670

$1.01

Monolith Black, LH Console Fairing

708400566

$219.99

Bare, LH Console Fairing

708400067

$98.99

Tuflok Plastic Rivet

293150230

$1.47

Monolith Black, RH Console Fairing

708400567

$219.99

Bare, RH Console Fairing

708400069

$98.99

Tuflok Plastic Rivet

293150230

$1.47

Dashboard

708400714

$63.99

LH Speaker Grille

708400715

$10.99

RH Speaker Grille

708400716

$10.99

Edge Clip

517302785

$0.88

Thermal Insulation

708400736

$15.99

Box Cover

708400996

$164.99

Gasket

293830244

$5.79

Ball Stud

705018612

$19.49

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

Hex. Elastic Stop Nut M6

232561600

$1.15

Panel Nut M6 X 1.0

250100208

$1.46

Panel Nut M6 X 1.0

250100208

$1.46

Torx Truss Screw M6 X 20

250000705

$2.11

Torx Truss Screw M6 X 20

250000705

$2.11

Spring

705006661

$3.39

Receptacle

708400215

$7.87

Torx Screw K50 X 16

250000720

$1.69

Monolith Black, Front Fairing

708400725

$229.99

LH Mirror Support

708400224

$33.99

Flat Head Stud M5

705006733

$20.99

Stud Ball M5

708400538

$18.49

Flange Elastic Nut M5

233251434

$2.00

Torx Truss PT K40 x 12

250001131

$2.11

Edge Clip

517302785

$0.88

LH Front Flasher Unit

710006197

$164.49

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$144.99

Spring

705010625

$10.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Torx Truss PT K40 x 12

250001131

$2.11

Monolith Black, LH Front Rear View Mirror Trim

708400581

$58.99

Bare, LH Front Rear View Mirror Trim

708400462

$26.99

Clip

517306478

$1.09

RH Mirror Support

708400225

$33.99

Flat Head Stud M5

705006733

$20.99

Stud Ball M5

708400538

$18.49

Flange Elastic Nut M5

233251434

$2.00

Torx Truss PT K40 x 12

250001131

$2.11

Edge Clip

517302785

$0.88

RH Front Flasher Unit

710006198

$164.49

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$144.99

Spring

705010625

$10.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Torx Truss PT K40 x 12

250001131

$2.11

Monolith Black, RH Front Rear View Mirror Trim

708400582

$57.99

Bare, RH Front Rear View Mirror Trim

708400464

$26.99

Clip

517306478

$1.09

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw M6 X 16

210261650

$1.67

Panel Nut M6 X 1.0

250100208

$1.46

Flat washer M6

250200164

$1.01

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw M6 X 16

210261650

$1.67

Panel Nut M6 X 1.0

250100208

$1.46

Flat washer M6

250200164

$1.01

Switch Bezel

708400205

$14.67

Switch Plug

708400866

$3.69

Front Access Cover

705018181

$37.99

Carbon Monolith, LH Front Access Cover

708400575

$234.99

Bare, LH Acces Panel

708400261

$109.99

Cover Latch Quarter Turn

708400065

$2.79

Carbon Monolith, RH Front Access Cover

708400576

$234.99

Bare, RH Acces Panel

708400262

$109.99

Cover Latch Quarter Turn

708400065

$2.79

Carbon Black, LH Windshield Base

708400127

$129.99

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

Stainless Flat Washer M6

234061600

$0.33

Carbon Black, RH Windshield Base

708400128

$129.99

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

Stainless Flat Washer M6

234061600

$0.33

Windshield

708400775

$399.99

Stainless Steel Flat Washer M5

234052670

$1.01

Rubber Washer

293830190

$2.43

Torx Screw M5 X 20

250000528

$2.11
