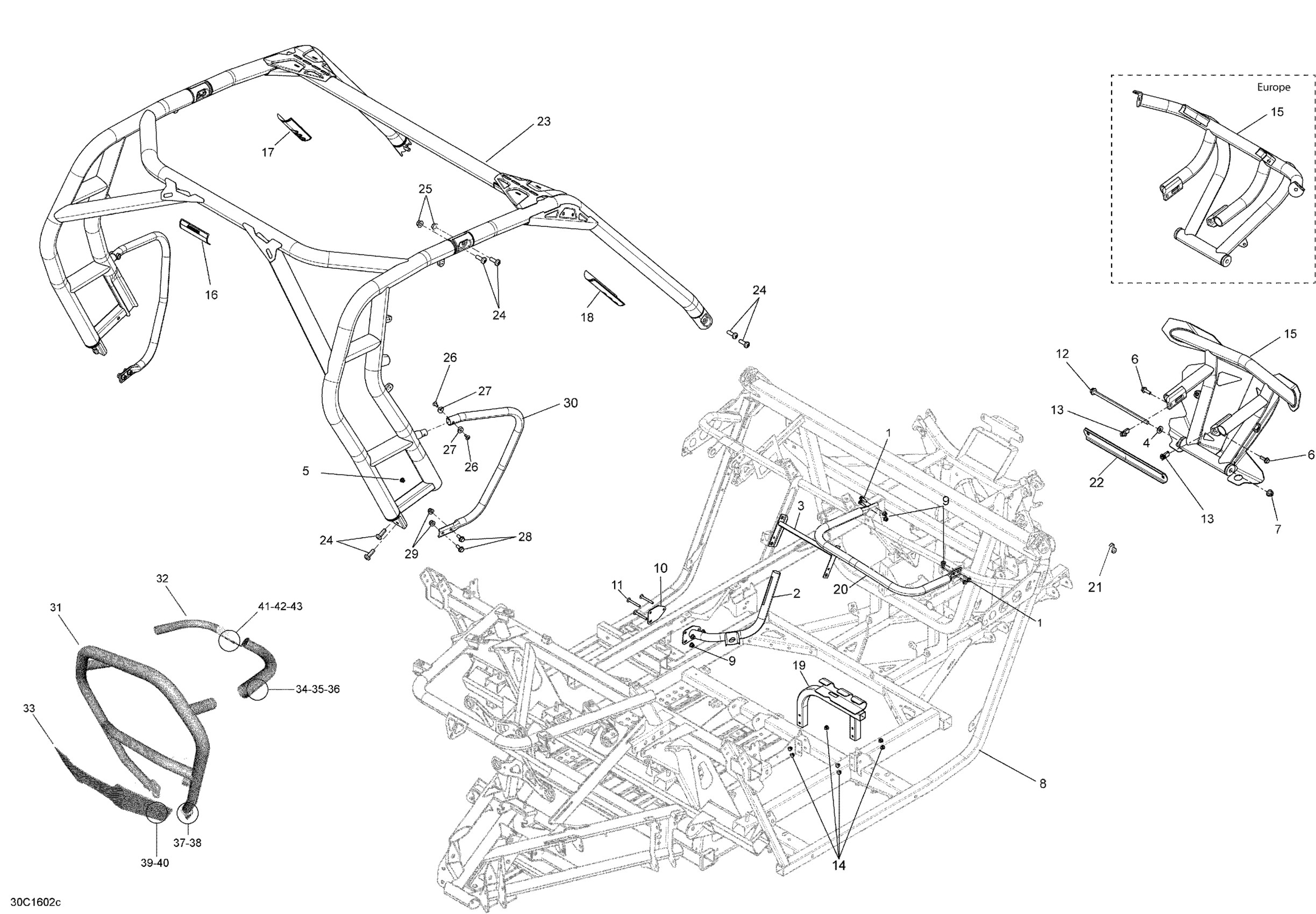

Can-Am Maverick - Maverick MAX, 2016 09- Frame - XDS Package Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662046

$2.11

2

Black Console Handle | MAVERICK Turbo

705204253

Unavailable

2

Black Console Handle

705204399

$137.49

3

Reinforcement Panel

705203330

$154.99

4

Conical Spring Washer 10 mm

234201474

$1.69

5

Threaded Insert M6 X 1.0

250100242

Unavailable

6

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

FRAME KIT - Call your local BRP dealership

715003947

$2,319.99

9

Elastic Flange Nut M6 X 1.0

233261416

$2.11

10

Steel Plate

705204606

$10.99

11

Torx Screw M6 X 50

250000317

$2.11

12

Hex. Flange Screw

250000597

$12.70

13

Panel Nut M8 X 1.25

250100118

$2.09

14

Hemlock Rivet, 6.5 mm

293150096

$3.27

15

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

15

FRONT BUMPER ASS'Y - Call your local BRP dealership | Model-North America, International

705204266

Unavailable

16

Warning Label

704903492

Unavailable

17

Warning Label

704903679

Unavailable

18

Warning Label

704903680

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Black Handle

705203332

$132.49

21

Binding Block

705203415

$18.49

22

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$22.49

23

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

23

Green Cage Kit | Manta Green Safety Cage

715003907

$1,039.99

23

Red Cage Kit

715003905

$1,039.99

23

Gulfstream Blue, Cage Ass'y | Blue Cage Model

715004818

$1,039.99

24

Screw Pan M10 X 30

250000848

$1.90

25

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

26

Torx Truss M6X14

250000789

$5.39

27

Offset Washer

705202223

$4.14

28

Hex. Flange Screw M8 X 20

207682044

$1.15

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

TUBE RH B-160 PAINTED - Call your local BRP dealership | Right

705203640

$43.99

30

TUBE RH B-357 PAINTED - Call your local BRP dealership

705204408

Unavailable

30

Red RH Front Side Protector Tube | MAVERICK with Red Cage

705204410

$46.49

30

Blue RH Side Protector Tube | Blue Cage Model

705204817

$46.49

30

TUBE LH B-160 PAINTED - Call your local BRP dealership | Left

705203637

Unavailable

30

TUBE LH B-357 PAINTED - Call your local BRP dealership

705204407

$43.99

30

Red LH Front Side Protector Tube | MAVERICK with Red Cage

705204409

$46.49

30

TUBE LH B-352 PAINTED - Call your local BRP dealership | Blue Cage Model

705204816

Unavailable

31

REAR BUMPER RED - Call your local BRP dealership | Package XDSXRS

705204767

Unavailable

32

UPPER ARM RED - Call your local BRP dealership | Package XDSXRS

705204766

Unavailable

33

REAR PROTECTOR - Call your local BRP dealership | Package XDSXRS

705203282

Unavailable

34

Torx Screw M8 X 60, Scotch Grip

250000383

$7.29

35

WASHER - Call your local BRP dealership | Package XDSXRS

708300563

Unavailable

36

Elastic Flange Nut M8

233281464

$1.01

37

Hex. Flange Elastic Nut M10

233201436

$2.11

38

Hex. Flange Screw M10 X 90

207609046

$6.77

39

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.69

40

Hex. Flange Elastic Nut M6

233261494

$1.58

41

Torx Truss Screw M8 X 50

250000761

$7.51

42

Flat Washer 8 mm

234082410

$1.47

43

Elastic Flange Nut M8

233281464

$1.01

44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

45

Washer

250200154

$3.70
