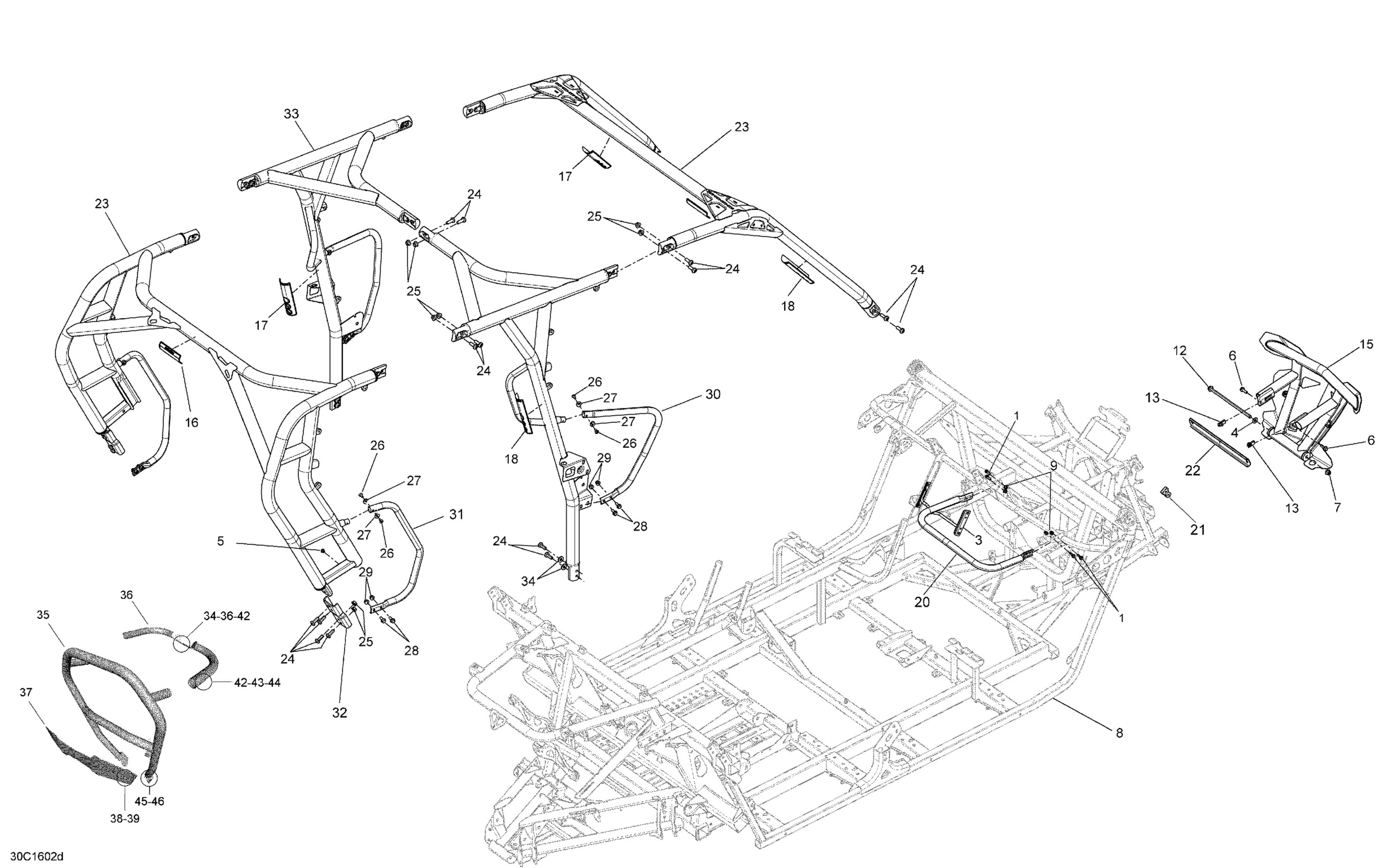

Can-Am Maverick - Maverick MAX, 2016 09- Frame Max- XDS Package Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662046

$2.11

3

Reinforcement Panel

705203717

$154.99

4

Conical Spring Washer 10 mm

234201474

$1.69

5

Threaded Insert M6 X 1.0

250100242

Unavailable

6

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

BLACK FRAME MAX - Call your local BRP dealership

705204826

Unavailable

9

Elastic Flange Nut M6 X 1.0

233261416

$2.11

12

Hex. Flange Screw

250000597

$12.70

13

Panel Nut M8 X 1.25

250100118

$2.09

15

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

15

FRONT BUMPER ASS'Y - Call your local BRP dealership | Model-North America, International

705204266

Unavailable

16

Warning Label

704903492

Unavailable

17

Warning Label

704903679

Unavailable

18

Warning Label

704903680

Unavailable

20

Black Handle

705203332

$132.49

21

Binding Block

705203415

$18.49

22

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$22.49

23

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

23

Gulfstream Blue, Cage Ass'y | Blue Cage Model

715004818

$1,039.99

23

Green Cage Kit | Manta Green Safety Cage

715003907

$1,039.99

23

Red Cage Kit

715003905

$1,039.99

24

Screw Pan M10 X 30

250000848

$1.90

25

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

26

Torx Truss M6X14

250000789

$5.39

27

Offset Washer

705202223

$4.14

28

Hex. Flange Screw M8 X 20

207682044

$1.15

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Black RH Front Side Protector Tube

705203642

$46.49

30

MANTA GREEN RH SIDE PROTECTOR TUBE - Call your local BRP dealership

705204067

Unavailable

30

RED RH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204069

Unavailable

30

BLUE RH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Blue Cage Model

705204819

Unavailable

30

Black LH Front Side Protector Tube

705203643

$46.49

30

MANTA GREEN LH SIDE PROTECTOR TUBE - Call your local BRP dealership

705204066

Unavailable

30

RED LH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204068

Unavailable

30

BLUE LH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Blue Cage Model

705204818

Unavailable

31

Black LH Rear Side Protector Tube

705203649

$46.49

31

MANTA GREEN LH REAR PROTECTOR TUBE - Call your local BRP dealership

705204062

Unavailable

31

RED LH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204064

Unavailable

31

SIDE PROTECT - Call your local BRP dealership | Blue Cage Model

705204820

Unavailable

31

Black RH Rear Side Protector Tube

705203652

$46.49

31

MANTA GREEN RH REAR PROTECTOR TUBE - Call your local BRP dealership

705204063

Unavailable

31

RED RH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204065

Unavailable

31

BLUE RH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Blue Cage Model

705204821

Unavailable

32

Rear Hand Mounting

705203514

$20.49

33

Black Central Cage Kit

715003902

$779.99

33

Blue Central Cage Kit | Blue Cage Model

715003904

$779.99

33

Red Central Cage Kit | Models with Red Cage

715003906

$779.99

34

Washer

250200154

$3.70

35

REAR BUMPER RED - Call your local BRP dealership | Package XDSXRS

705204767

Unavailable

36

UPPER ARM RED - Call your local BRP dealership | Package XDSXRS

705204766

Unavailable

37

REAR PROTECTOR - Call your local BRP dealership | Package XDSXRS

705203282

Unavailable

38

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.69

39

Hex. Flange Elastic Nut M6

233261494

$1.58

40

Torx Truss Screw M8 X 50

250000761

$7.51

41

Flat Washer 8 mm

234082410

$1.47

42

Elastic Flange Nut M8

233281464

$1.01

43

Torx Screw M8 X 60, Scotch Grip

250000383

$7.29

44

WASHER - Call your local BRP dealership | Package XDSXRS

708300563

Unavailable

45

Hex. Flange Screw M10 X 90

207609046

$6.77

46

Hex. Flange Elastic Nut M10

233201436

$2.11

47

Washer

250200154

$3.70
