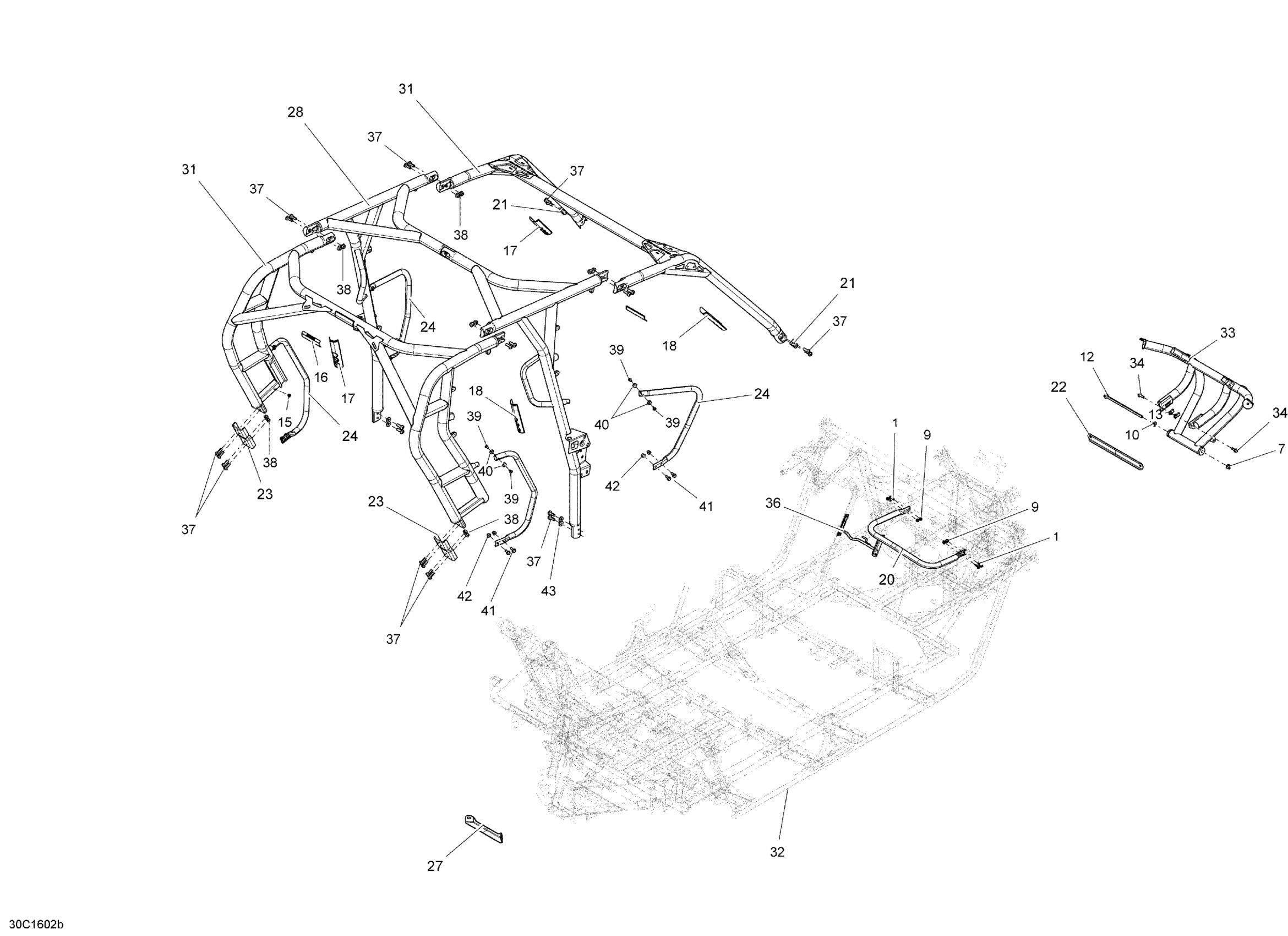

Can-Am Maverick - Maverick MAX, 2016 09- Frame - MAX, Except XDS Package Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662046

$2.11

7

Hex. Flange Elastic Nut M10

233201436

$2.11

9

Elastic Flange Nut M6 X 1.0

233261416

$2.11

10

Conical Spring Washer 10 mm

234201474

$1.69

12

Hex. Flange Screw

250000597

$12.70

13

Panel Nut M8 X 1.25

250100118

$2.09

15

Threaded Insert M6 X 1.0

250100242

Unavailable

16

Warning Label

704903492

Unavailable

17

Warning Label

704903679

Unavailable

18

Warning Label

704903680

Unavailable

20

Black Handle

705203332

$132.49

21

Binding Block

705203415

$18.49

22

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$22.49

24

RED RH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204069

Unavailable

24

RED LH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204068

Unavailable

24

RED LH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204064

Unavailable

24

RED RH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204065

Unavailable

24

Black LH Front Side Protector Tube

705203643

$46.49

24

Black LH Rear Side Protector Tube

705203649

$46.49

24

Black RH Rear Side Protector Tube

705203652

$46.49

27

REINFORCEMENT - Call your local BRP dealership

705203695

Unavailable

28

Black Central Cage Kit

715003902

$779.99

28

Red Central Cage Kit | Models with Red Cage

715003906

$779.99

31

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

31

Red Cage Kit

715003905

$1,039.99

32

Frame

705204792

Unavailable

33

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

34

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

36

Reinforcement Panel

705203717

$154.99

37

Screw Pan M10 X 30

250000848

$1.90

38

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

39

Torx Truss M6X14

250000789

$5.39

40

Offset Washer

705202223

$4.14

41

Hex. Flange Screw M8 X 20

207682044

$1.15

42

Hex. Flange Elastic Nut M8

233281414

$1.47

43

Washer

250200154

$3.70
