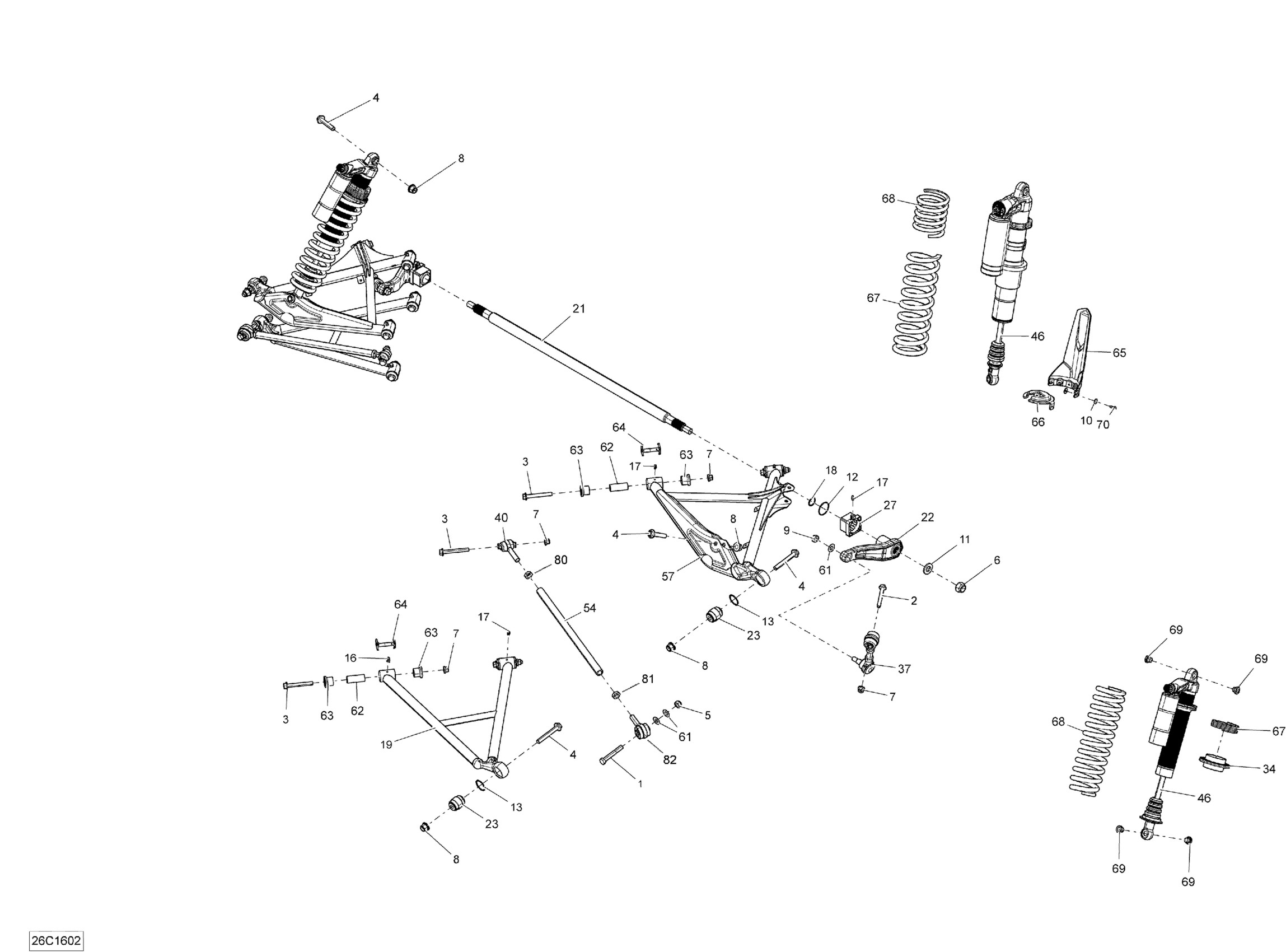

Can-Am Maverick - Maverick MAX, 2016 08- Rear Suspension Diagram

#

Description
Price

1

Hex. Screw M12 X 80

207028046

$3.91

2

Hex. Flange Screw M10 X 70

207607046

$2.96

3

Hex Flange Screw M10 X 80

207608046

$6.69

4

Hex. Flange Screw M12 X 85

207628546

$6.77

5

Elastic Stop Nut M12

232521416

$1.69

6

Elastic Stop Nut M18

232591414

$4.39

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

Elastic Flange Nut M12

233221416

$2.85

9

Hex. Flange Elastic Nut M12

250000047

$1.90

10

Washer M5

250200025

$0.74

11

Washer

250200045

$7.73

12

O-Ring

293300100

$5.72

13

Retaining Ring

293370093

$7.59

16

Grease Fitting 90°

293550056

$1.15

17

Grease Fitting

408200700

$3.49

18

Retaining Ring

706000251

$6.35

19

Black LH Rear Lower Arm

706001354

$201.49

19

Black RH Rear Lower Arm

706001355

$201.49

19

LH REAR PAINTED LOWER ARM - Call your local BRP dealership

706001484

$179.99

19

Black RH Rear Lower Arm

706001485

$190.99

19

Black LH Rear Lower Arm

706001935

$201.49

19

Black RH Rear Lower Arm

706001936

$201.49

21

Sway Bar

706001356

$185.49

21

SWAY BAR - Call your local BRP dealership

706001625

Unavailable

22

Sway Bar Lever

706001371

$169.99

23

Radial Joint

706001373

$52.99

27

Sway Bar Housing

706001402

$15.49

34

Spring Spacer | Model-STD

706001711

$17.49

37

LH Double Ball Joint

706001741

$102.99

37

RH Double Ball Joint

706001742

$102.99

37

LH Double Ball Joint

706002089

$98.99

37

RH Double Ball Joint

706002090

$98.99

40

Ball Joint | Package-STD, XRS, XRSDPS

706001798

$51.99

46

REAR SHOCK - Call your local BRP dealership | Package-STD Yellow

706002058

Unavailable

46

REAR SHOCK - Call your local BRP dealership | Package-STD

706002055

Unavailable

46

Rear Shock

706002056

$649.99

46

Shock | Package XDSDPS Except Black

706002418

$919.99

46

Shock | Package XDSDPS Black

706002347

$919.99

46

SHOCK - Call your local BRP dealership

706001947

$889.99

46

REAR SHOCK - Call your local BRP dealership | Package-XDS Europe

706002129

Unavailable

46

SHOCK - Call your local BRP dealership | Package XDSXRS

706002362

Unavailable

46

SHOCK - Call your local BRP dealership | Package XDSSTD

706002403

Unavailable

46

SHOCK - Call your local BRP dealership | MAX Model XDSSTD

706002406

Unavailable

46

REAR SHOCK - Call your local BRP dealership | Package-XMR Black

706001920

Unavailable

54

Adjustment Rod

706001801

$46.49

54

Adjustment Rod | Package-STD, XRS, XRSDPS

706002081

$46.49

57

SUSPENSION ARM REAR L ECOAT - Call your local BRP dealership | Package XC

706001848

Unavailable

57

Black RH Rear Upper Arm | Package XC

706001849

$190.99

57

Black LH Rear Upper Arm | Model-STD

706002091

$201.49

57

Black RH Rear Upper Arm | Model-STD

706002092

$201.49

57

SUSPENSION ARM REAR L ECOAT - Call your local BRP dealership | Package XDSSTD

706002223

Unavailable

57

SUSPENSION ARM REAR R ECOAT - Call your local BRP dealership | Package XDSSTD

706002224

Unavailable

57

RED LH REAR UPPER ARM - Call your local BRP dealership | Model-XXC White

706001882

Unavailable

57

RED RH REAR UPPER ARM - Call your local BRP dealership | Model-XXC White

706001884

Unavailable

57

RED LH REAR UPPER ARM - Call your local BRP dealership | Model-XRS White

706002095

Unavailable

57

Red RH Rear Upper Arm | Model-XRS White

706002096

$201.49

57

SUSPENSION ARM REAR L B-101 CAN-AM RED - Call your local BRP dealership | Package XDSXRS

706002365

Unavailable

57

SUSPENSION ARM REAR R B-101 BLACK - Call your local BRP dealership | Package XDSXRS

706002366

Unavailable

57

Gulfstream Blue LH Rear Upper Arm | Package XDS DPS Silver-Black/Blue Model

706002341

$360.49

57

SUSPENSION ARM REAR R B-352 GULFS BLUE - Call your local BRP dealership | Package XDS DPS Silver-Black/Blue Model

706002342

Unavailable

57

Gulfstream Blue LH Rear Upper Arm | Package XMR Silver Model

706002152

$391.99

57

SUSPENSION ARM REAR R B-352 GULFS BLUE - Call your local BRP dealership | Package XMR Silver Model

706002153

$189.99

57

ARM_SUSPENSION REAR L B-352 PAINTED - Call your local BRP dealership | Package XXC Quarry Gray Model

706002154

Unavailable

57

SUSPENSION ARM REAR R B-352 GULFS BLUE - Call your local BRP dealership | Package XXC Quarry Gray Model

706002155

Unavailable

57

SUSPENSION ARM REAR L B-357 MANTA GREEN - Call your local BRP dealership | Model-Turbo Deep Black

706002225

Unavailable

57

Manta Green RH Rear Upper Arm | Model-Turbo Deep Black

706002226

$201.49

57

MANTA GREEN LH REAR UPPER ARM - Call your local BRP dealership | Package-XMR Digital Camo

706002097

Unavailable

57

MANTA GREEN RH REAR UPPER ARM - Call your local BRP dealership | Package-XMR Digital Camo

706002098

Unavailable

61

Hardened Washer

706200281

$2.85

62

Sleeve

706201590

$11.99

63

Suspension Arm Bushing

706204409

$9.10

64

Wear Plate

706201660

$0.95

65

Protector

706202215

$11.99

66

SPRING RETAINER - Call your local BRP dealership

706202216

Unavailable

67

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAVERICK 1000 Deep Black

706001946

Unavailable

67

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV-MAX

706001949

Unavailable

67

GULFSTREAM BLUE SPRING - Call your local BRP dealership | Package XDS DPS-Silver Model

706002179

Unavailable

67

GULFSTREAM BLUE SPRING - Call your local BRP dealership | MAX Model XDS DPS-Silver Model

706002183

Unavailable

67

RED - REAR SPRING - Call your local BRP dealership | MAX Model Package DPS

706002273

Unavailable

67

SPRING - Call your local BRP dealership | Package XDSXRS

706002364

Unavailable

67

Red Spring | MAX Model XDSXRS

706002370

$126.99

68

WHITE REAR SPRING - Call your local BRP dealership | Model-STD White

706001588

Unavailable

68

SPRING - Call your local BRP dealership | Package XC

706002373

Unavailable

68

MANTA GREEN REAR SPRING - Call your local BRP dealership | Package-XMR Digital Camo

706001924

Unavailable

68

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAVERICK 1000 Deep Black

706001945

Unavailable

68

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV-MAX

706001948

$94.99

68

REAR SPRING GULFSTREAM BLUE - Call your local BRP dealership | Package XMR Silver Model

706002165

$126.99

68

GULFSTREAM BLUE SPRING - Call your local BRP dealership | Package XXC Quarry Gray Model

706002168

Unavailable

68

GULFSTREAM BLUE SPRING - Call your local BRP dealership | Package XDS DPS-Silver Model

706002178

Unavailable

68

GULFSTREAM BLUE SPRING - Call your local BRP dealership | MAX Model XDS DPS-Silver Model

706002182

Unavailable

68

RED - REAR SPRING - Call your local BRP dealership | MAX Model Package DPS

706002272

Unavailable

68

SPRING - Call your local BRP dealership | Package XDSXRS

706002363

Unavailable

68

SPRING - Call your local BRP dealership | MAX Model XDSXRS

706002369

Unavailable

68

RED REAR SPRING - Call your local BRP dealership | Model-XXC White

706001591

Unavailable

68

RED REAR SPRING - Call your local BRP dealership | Package-XRSDPS Bright White

706002075

Unavailable

68

RED SPRING - Call your local BRP dealership | Package DPS-STD Quarry Gray Model

706002159

Unavailable

69

Internal Bushing

715900267

$26.49

69

INTERNAL BUSHING - Call your local BRP dealership

715900340

Unavailable

70

Hex. Forming Screw M5 X 16

210251650

$1.15

Hex. Flange Screw M12 X 60

207626046

$7.41

Hex. Flange Elastic Nut M10

233201436

$2.11

Elastic Flange Nut M12

233221416

$2.85

80

Hex. Jam Nut M14

232170411

$1.48

81

LH Hex. Lock Nut M14

232175411

$6.67

82

Ball Joint | Package-STD, XRS, XRSDPS

706001437

$51.99
