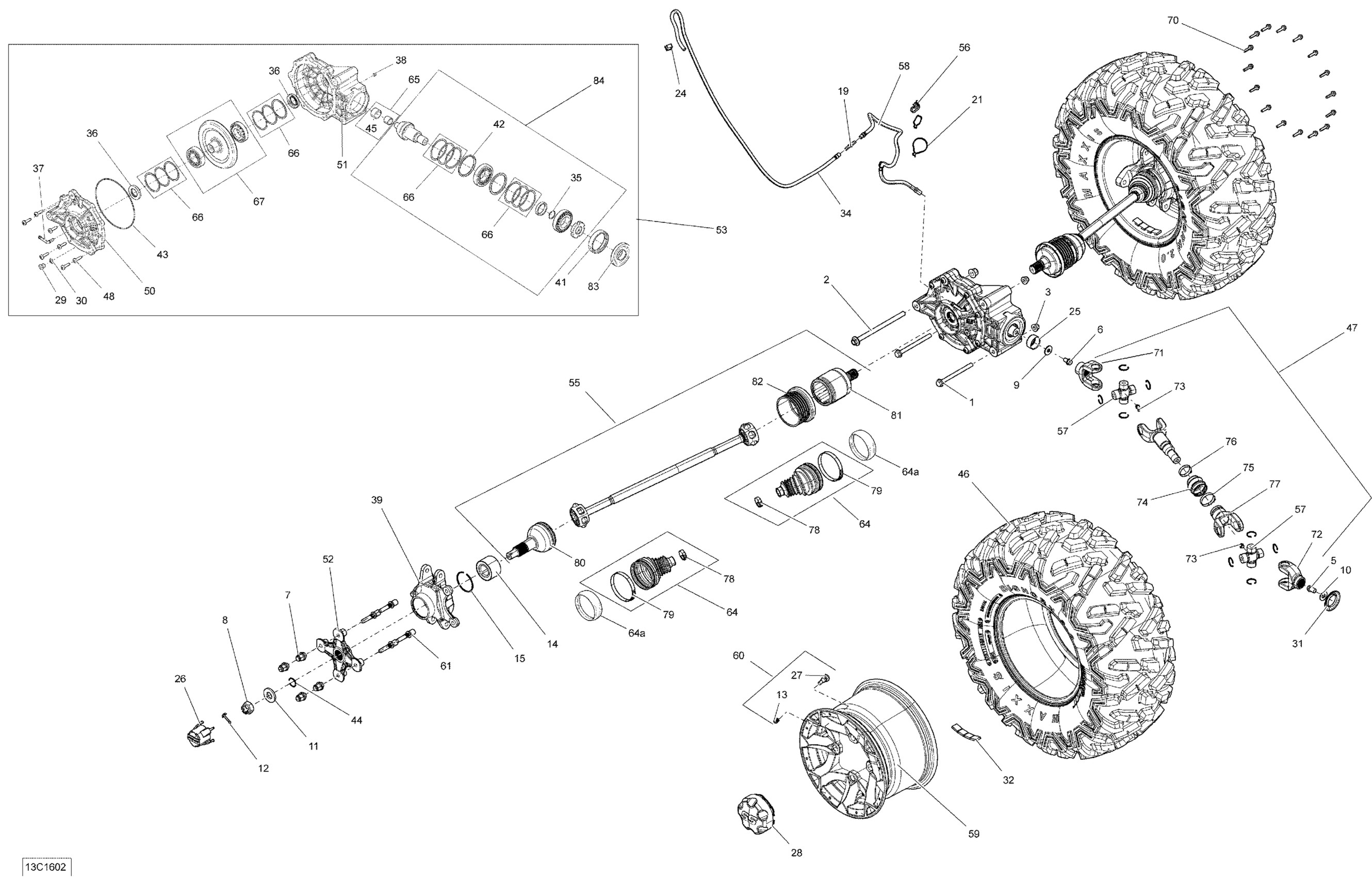

Can-Am Maverick - Maverick MAX, 2016 08- Rear Drive System Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 125

230602546

$7.41

2

Hex. Flange Screw M12 X 190

230629087

$19.99

3

Hex. Flange Elastic Nut M10

233201436

$2.11

4

Elastic Flange Nut M12

233221416

$2.85

5

Hex Flange Screw M12 X 16

250001039

$2.11

6

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

7

Black, Wheel Nut M10 X 1.25

250100184

$4.51

8

Castle Nut M20

250100193

$8.05

9

Flat Washer M10 | 4X4

250200014

$1.49

10

Flat Washer M12

250200102

$2.11

11

Conical Spring Washer M20

250200170

$14.74

12

Cotter Pin

250400071

$2.11

13

Valve Cap

293000110

$1.59

14

Ball Bearing

293350150

$52.99

15

Circlip

293370019

$4.68

19

Straight Fitting

293710039

$7.59

21

Tie-Rap 180 mm

414115200

$0.11

24

Clip

414227300

$1.67

25

Wear Ring | 4X4

705400036

$26.49

26

Wheel Cap

705400928

$10.49

26

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.49

27

Rim Valve With Cap

705400193

$8.69

28

Wheel Cap

705401318

$22.49

29

Fill Level Plug | 4X4

705500504

$10.01

30

Copper Washer | 4X4

705500506

$0.45

31

Protector

705501123

$7.55

32

1/2 Oz Weight

219704465

$3.89

34

Polyurethane Hose 10000Mm Long

219704410

$56.99

35

O-Ring

705501554

$5.03

36

Oil Seal

705501556

$17.99

37

Breather Tube

705501584

$14.99

38

Plug Drain

705501724

$5.95

39

LH Rear Knuckle

705501730

$185.49

39

RH Rear Knuckle

705501731

$195.99

41

NUT - Call your local BRP dealership

705501740

Unavailable

42

Differential Shim Kit

703500839

$51.99

43

Oil Seal

705501749

$9.27

44

Circlip

705501781

$6.50

45

Needle Bearing

703500840

$62.49

46

Rear Tire | STD Model Europe

705501434

$153.49

46

Rear Tire 27X11X12 | X

705502938

$254.49

46

Rear Tire Maxxis 28X11X14 | Model-North America, International

705502603

$275.49

46

TIRE_30X9R14 - Call your local BRP dealership | XMR

705401501

Unavailable

46

Rear Tire | X Model Europe

705501818

$254.49

47

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$307.49

47

Drive Shaft Ass'y

703500939

$259.49

48

Screw

705502063

$3.24

50

REAR COVER - Call your local BRP dealership

705502171

Unavailable

51

PINION COVER - Call your local BRP dealership

705502172

Unavailable

52

Wheel Hub ( 29 Splines )

705502223

$126.99

53

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

55

CV Joint

705502414

$275.49

55

CV Joint | Package XC -XXC

705502415

$243.99

55

CV Joint

705502412

$243.99

56

Dart Tie Rap 200MM

710003168

$7.09

57

Universal Joint Ass'y | T3

703500846

$59.49

58

Was 293830177 Hose

219704388

$11.63

59

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$206.49

59

Black, Rim | XXC

705502244

$265.99

59

Black, Rim | Includes 150b to 150ba

705502146

$297.99

59

Rear Rim | Package-XT Int.Brush Aluminum

705502637

$206.49

59

Matte Black Rim

705401552

$148.99

60

Rim Valve With Cap

705400193

$8.69

61

Wheel Stud

250300060

$11.49

64

Boot Kit

705501864

$42.49

64a

Joint Protector

705501842

$8.85

65

Needle Bearing

703500840

$62.49

66

Differential Shim Kit

703500839

$51.99

67

Gear Kit

703500868

$429.99

70

Hex. Flange Screw M6 X 25

250000787

$2.22

71

Joint

715900271

$24.99

72

Joint

715900272

$24.99

73

Grease Fitting | T3

715900295

$5.24

74

Rubber Boot

715900118

$14.30

75

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

76

Oetiker Gear Clamp 36.1MM

509000045

$8.29

77

Spline Yoke

715900106

$41.49

78

Oetiker Clamp, 27.3 mm

715900242

$10.33

79

Oetiker Clamp, 82.1 mm

715900241

$10.33

80

CV Joint

715900391

$259.49

81

Plunging Joint

705501865

$259.49

81

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

82

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

83

Oil Seal

705502276

$15.34

84

Pinion Kit

703500867

$429.99
