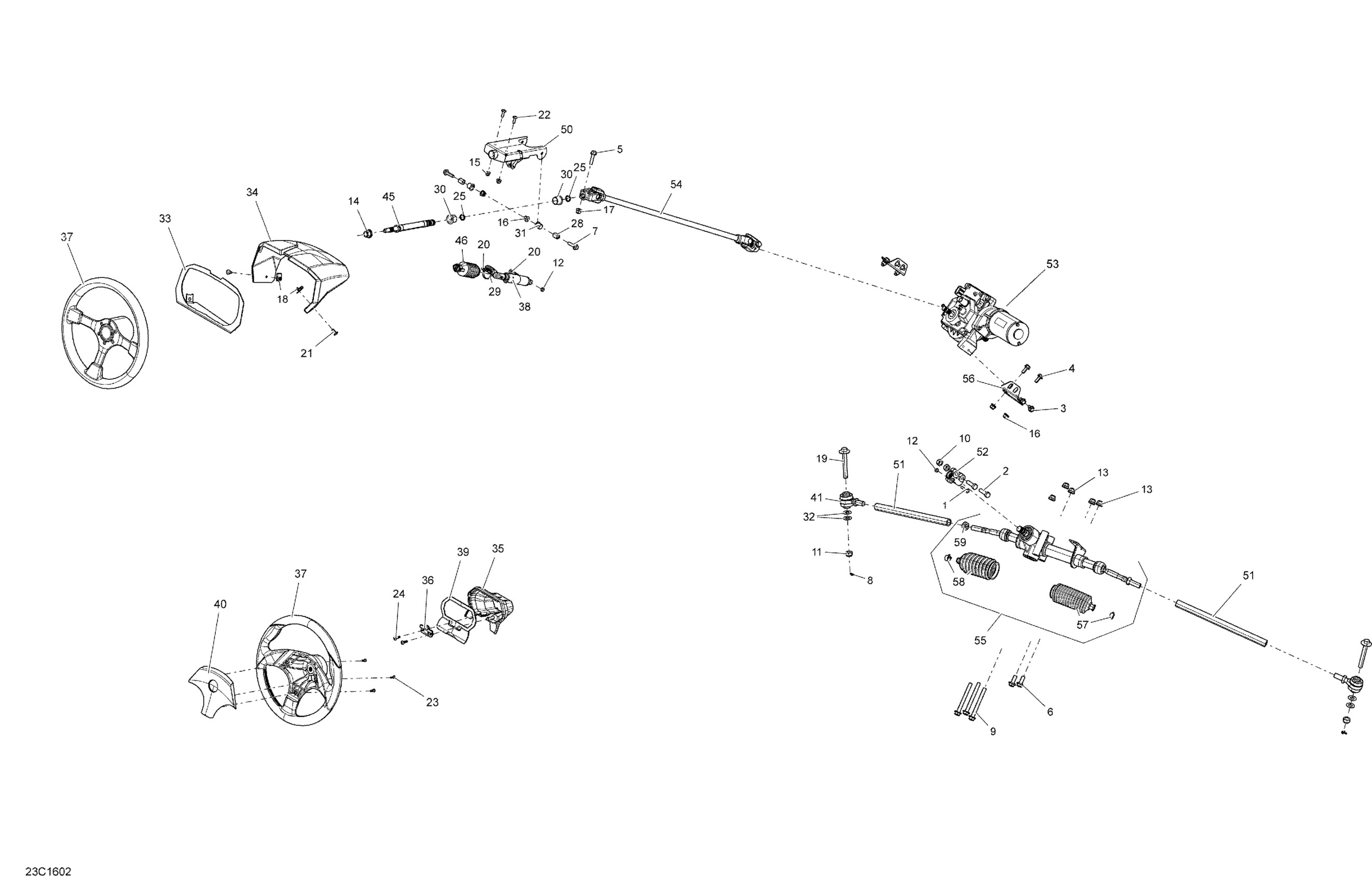

Can-Am Maverick - Maverick MAX, 2016 07- Steering Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063044

$1.26

2

Hex. Screw M10 X 35

207103586

$1.15

3

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

4

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

5

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

6

Hex. Flange Screw M10 X 25

207602546

$2.11

7

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

8

Cotter Pin

211400017

$0.33

9

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

10

Elastic Stop Nut M10

232500416

$1.90

11

Elastic Stop Nut M12

232521416

$1.69

12

Elastic Stop Nut M6

232561414

$0.55

13

Hex. Flange Elastic Nut M10

233201436

$2.11

14

Hex. Flange Elastic Nut M12

233221414

$7.69

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Hex. Elastic Flange Nut M8

233281416

$1.48

18

Panel Nut M6 X 1.0

250100198

$2.11

19

Hexagonal Screw M12 X 88

250000657

$6.77

20

Socket Head Screw M8 X 16

250000669

$3.17

21

Torx Truss Screw M6 X 16

250000721

$1.69

22

Torx Screw M6 X 20

250000722

$1.68

23

Phillips Screw K40 X 16

250000723

$0.98

24

Torx Screw Truss Head K50X20 T20

250000760

$2.11

25

O-Ring

293300144

$3.82

28

Bushing

293900106

$4.55

29

Tie-Rap 180 mm

414115200

$0.11

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Bushing

705600799

$3.72

32

Hardened Washer

706200281

$2.85

33

Cluster Support | X, XT

707900013

$16.49

34

Upper Cluster Cover | X, XT

707900124

$16.49

35

Speedometer Cover

709400514

$16.99

36

Latch Indicator Cover

709400573

$11.99

37

Steering Wheel | STD

709400650

$137.49

37

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

38

Adjustment Cylinder

709402506

$72.99

39

Cluster Support | STD

709400760

$21.99

40

Steering Center | STD

709400780

$13.49

41

Ball Joint

709401125

$52.99

45

Steering Shaft

709401167

$48.99

46

Boot Tube Side

709401232

$18.99

50

Painted Steering Wheel Support

709401391

$85.99

51

Tie Rod

709401272

$30.49

51

Tie Rod

709401427

$32.99

52

Machined Coupling | Package-DPS, XT, XTP

709401494

$33.99

53

Power Steering Ass'y | Package-DPS, XT, XTP

709401921

$999.49

54

Steering Shaft Ass'y

709401388

$199.99

54

STEERING SHAFT ASS'Y - Call your local BRP dealership | Model With DPS

709401607

Unavailable

55

Rack And Pinion Steering | STD, XRS

709401325

$381.49

55

Rack and Pinion Steering | Package DPS - XMR -XC -XXC

709401610

$381.49

55

Rack and Pinion Steering | Package X-RS

709401611

$381.49

56

DPS Support | Model With DPS

709401612

$13.49

57

Boot Kit, Tube Side

715900236

$54.99

58

Boot Kit, Pinion Side

715900235

$54.99

59

Steering Rod Nut

715900238

$2.30
