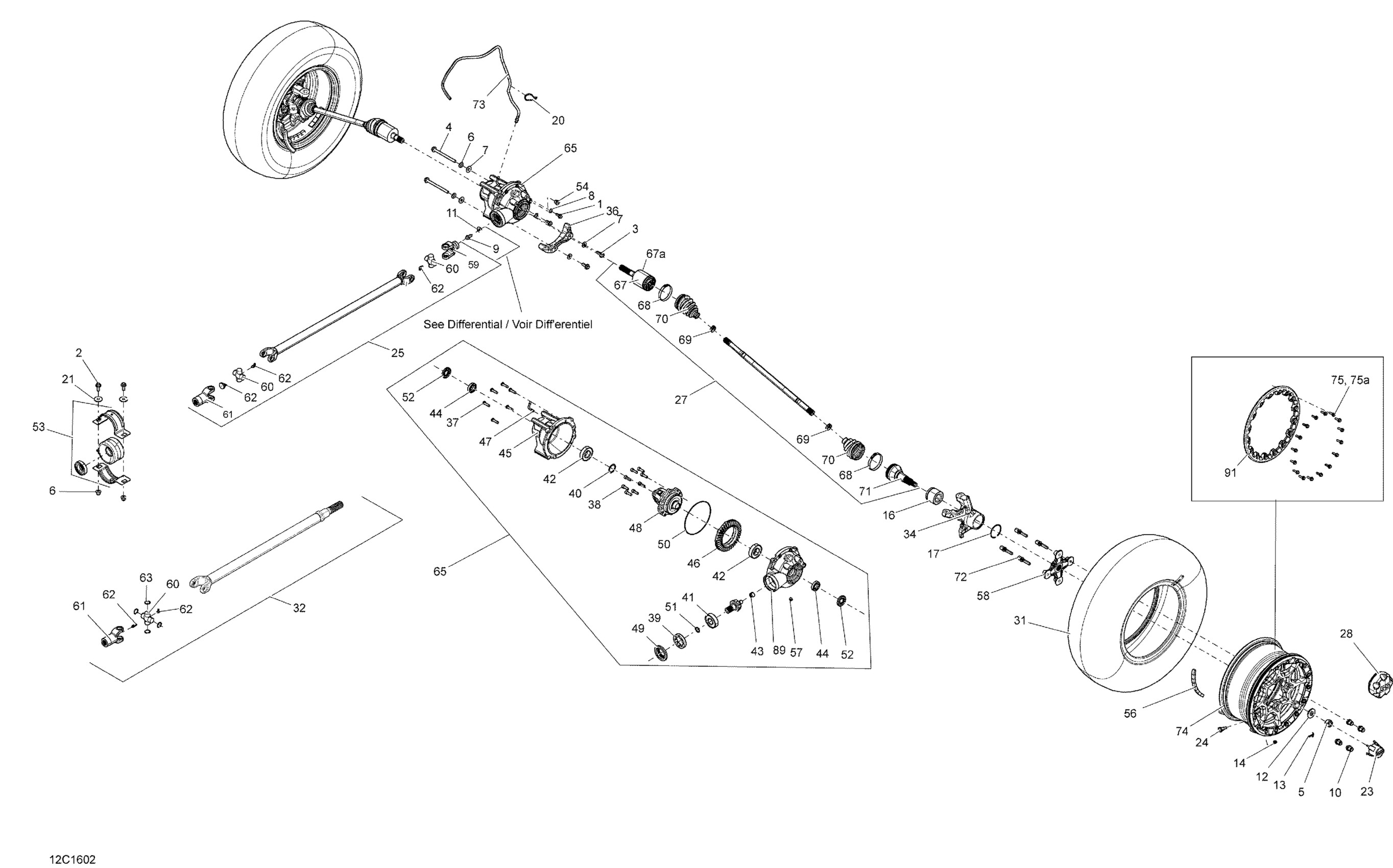

Can-Am Maverick - Maverick MAX, 2016 07- Drive System, Front Diagram

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M10 X 25

207602544

$1.69

Hex. Flange Screw M10 X 25

207602546

$2.11

Hex. Flange Screw M10 X 125

230602546

$7.41

Hex. Flange Castellated Nut M18

232291413

$7.98

Hex. Flange Elastic Nut M10

233201414

$1.58

Conical Spring Washer 10 mm

234201474

$1.69

Conical Spring Washer M8

234281474

$1.48

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

Black, Wheel Nut M10 X 1.25

250100184

$4.51

Flat Washer M10 | 4X4

250200014

$1.49

Conical Spring Washer M18

250200171

$7.65

Cotter Pin

250400071

$2.11

Valve Cap

293000110

$1.59

O-Ring

293250246

$7.51

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Tie-Rap 180 mm

414115200

$0.11

Washer

503032900

$3.28

Wear Sleeve

705400780

$7.90

Wheel Cap

705400928

$10.49

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.49

Rim Valve With Cap

705400193

$8.69

Drive Shaft Assembly

705402068

$238.49

LH CV Joint

705401873

$243.99

RH CV Joint

705401874

$243.99

LH CV Joint | Model-XXC

705401875

$243.99

RH CV Joint | Model-XXC

705401876

$243.99

LH CV Joint | XMR

705401877

$275.49

RH CV Joint | XMR

705401878

$275.49

Wear Ring | 4X4

705400036

$26.49

Wheel Cap

705401318

$22.49

Front Tire 27X9X12 | X

705402560

$238.49

Front Tire | STD Europe Model

705401046

$144.99

Front Tire | X Model, Europe

705401386

$238.49

TIRE_30X9R14 - Call your local BRP dealership | XMR

705401501

Unavailable

Front Tire Maxxis 28X9X14 | Model-North America, International

705402080

$259.49

Drive Axle Ass'y | Model-COM-MAX

705402041

$413.49

LH Front Knuckle

705401548

$132.49

RH Front Knuckle

705401549

$104.99

SUPPORT - Call your local BRP dealership

705401600

Unavailable

Screw | 4X4

705401601

$10.49

Screw | After May 30, 2014

705401602

$6.19

Nut | 4X4

705401603

$35.99

Shim | 4X4

705401604

$57.99

Ball Bearing | After May 30, 2014

705401605

$31.99

Ball Bearing | 4X4

705401606

$51.99

Ball Bearing | After May 30, 2014

705402848

$49.99

Ball Bearing | After May 30, 2014

705401608

$51.99

Front Cover | After May 30, 2014

705401610

$149.99

Gear 36 Teeth | After May 30, 2014

705401612

$409.99

Vent Valve | After May 30, 2014

705401613

$16.49

Differential | Package-DPS, XT, XTP

705402182

$1,128.49

Differential | Package-STD

705402184

$977.49

Oil Seal | After May 30, 2014

705401615

$19.49

Seal | After May 30, 2014

705401616

$14.28

O'Ring | After May 30, 2014

705401617

$7.20

Gasket | 4X4

705401618

$18.49

Ball Bearing | Model-COM-MAX

705401646

$62.49

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

1/2 Oz Weight

219704465

$3.89

Drain Plug | After May 30, 2014

705501885

$14.22

Wheel Hub

705501900

$132.49

Fixed Yoke Joint

715900116

$59.49

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

U-Joint

715900183

$26.49

Yoke Joint | Cover 715900483

715900231

$26.49

GREASE FITTING - Call your local BRP dealership

703500813

Unavailable

Cover

715900483

$9.88

Grease Fitting

703500815

$5.24

SNAP RING - Call your local BRP dealership

715900117

Unavailable

Front Differential | Includes 8 to 31

703500907

$1,579.99

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

RH Plunging Joint

705401348

$259.49

LH Plunging Joint

705401350

$259.49

Oetiker Clamp, Large

715900260

$10.33

Oetiker Clamp

715900282

$5.29

Oetiker Clamp, Small

715900261

$5.29

Oetiker Clamp, Small

715900283

$5.29

Boot Kit, Wheel Side

705401345

$42.49

Boot Kit, Wheel Side

705401354

$42.49

Boot Kit, Differential Side

705401346

$42.49

Boot Kit, Différential Side

705401355

$42.49

CV Joint

705401344

$259.49

CV Joint

705401407

$259.49

Wheel Stud

250300060

$11.49

Polyurethane Hose 10000Mm Long

219704410

$56.99

Deep Black, 12" X 6 Rim | STD

705401417

$190.49

Matte Black Rim

705401552

$148.99

Black Rim | Package XTP Except Europe

705401594

$297.99

Black, Rim | XXC

705401678

$260.99

Front Rim | Package-XT International Brush Aluminum

705402120

$216.99

Hex. Flange Screw M6 X 25

250000787

$2.22

Rim Valve With Cap

705400193

$8.69

Manta Green, Reinforcement Disk | Model Mineral Gray Satin

705401586

$92.99

Blue Painted Reinforcement Disk | Package XXC Quarry Gray

705401695

$85.99

Blue Reinforcement Disk | Package XMR Blue

705401702

$92.99

Red Panted Reinforcement Disc | Package XXC White

705401816

$85.99

Red, Reinforcement Disk | Package XMR Red

705401837

$92.99

Insert | XXC

293450317

$7.29

Circlip Joint | Not shown

705401349

$6.50

Shim

705401769

$7.69

Shim

705401770

$7.09
