Description

Price

1

Hex. Flange Screw M6 X 25

207662544

$0.64

2

Flat Washer

224060201

$1.26

3

Quick Attach 90°

275500700

$16.49

4

Threaded Insert M6 X 1.0

250100242

Unavailable

6

Y-Fitting, 5/16''

293710136

$6.49

7

Rubber Washer

293830037

$2.68

8

Tie-Rap 180 mm

414115200

$0.11

28

Quick Attach 90°

275500700

$16.49

29

Rollover Valve

709000413

$55.99

30

Ring

709000274

$15.99

31

O-Ring

709000275

$18.10

32

Neoprene Pad

709000288

$13.99

34

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

35

Filter

709000330

$7.79

36

Fuel Pump | Includes 5 to 6

709000759

$372.49

36a

Fuel Pre-Filter Kit

709000389

$79.49

37

Fuel Tank

709000753

$749.99

38

Fuel Cap | Except Europe

709000529

$28.49

38

FUEL CAP KIT - Call your local BRP dealership | Europe

715001124

Unavailable

39

Was 709000163 Fuel Line

219704440

$28.99

40

Was 709000163 Fuel Line

219704440

$28.99

41

Was 709000163 Fuel Line

219704440

$28.99

42

Tubing 16 Mm 1000Mm Long

219704408

$7.49

43

Tubing 16 Mm 1000Mm Long

219704408

$7.49

44

Crimp Clamp, 15.3-706R

293650047

$3.29

45

Polyurethane Hose 10000Mm Long

219704410

$56.99

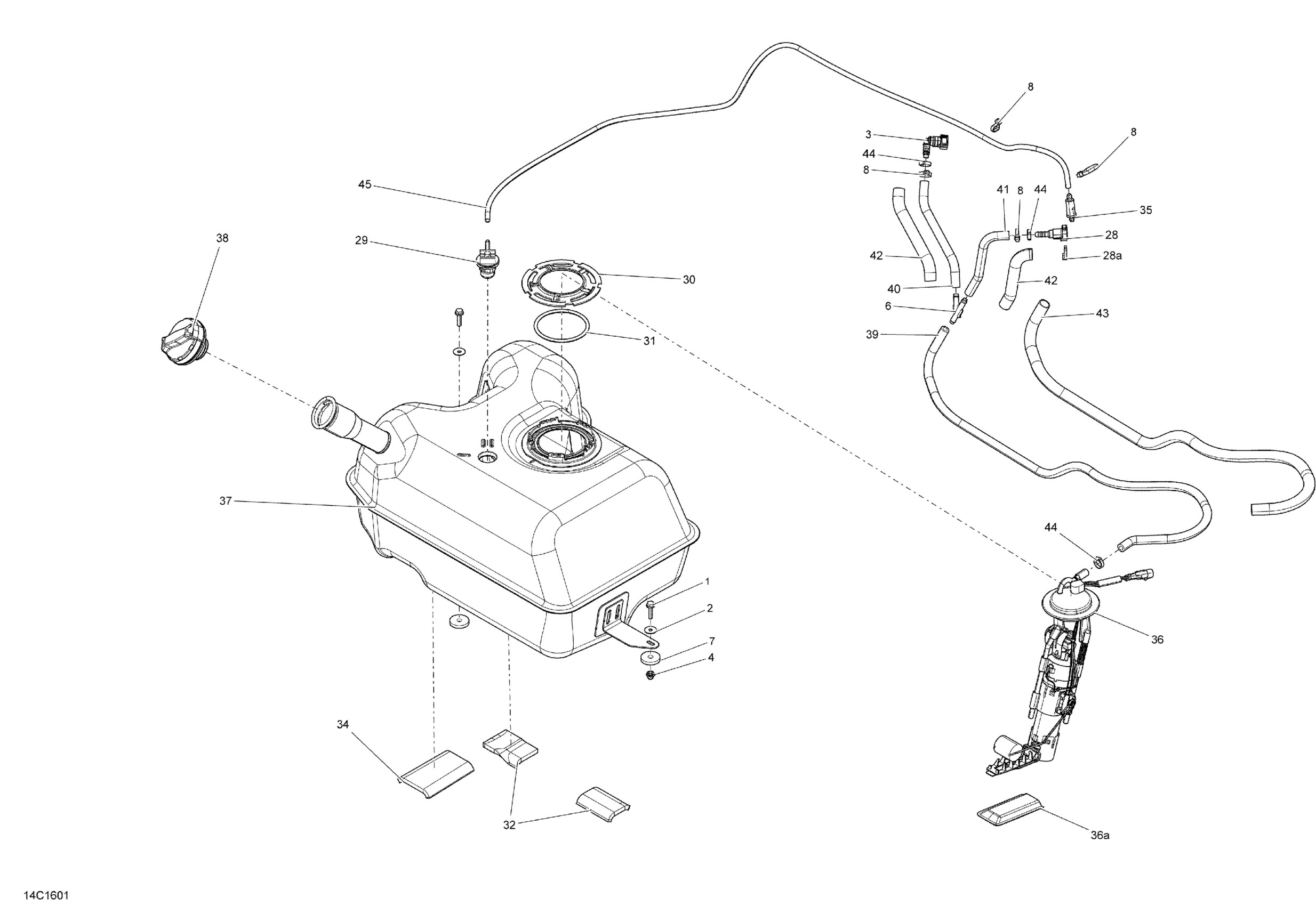

Can-Am Maverick - Maverick MAX, 2016 02- Fuel System Diagram

Hex. Flange Screw M6 X 25

Flat Washer

Quick Attach 90°

Threaded Insert M6 X 1.0

Y-Fitting, 5/16''

Rubber Washer

Tie-Rap 180 mm

Quick Attach 90°

Rollover Valve

Ring

O-Ring

Neoprene Pad

NEOPRENE PAD - Call your local BRP dealership

Filter

Fuel Pump | Includes 5 to 6

Fuel Pre-Filter Kit

Fuel Tank

Fuel Cap | Except Europe

FUEL CAP KIT - Call your local BRP dealership | Europe

Was 709000163 Fuel Line

Was 709000163 Fuel Line

Was 709000163 Fuel Line

Tubing 16 Mm 1000Mm Long

Tubing 16 Mm 1000Mm Long

Crimp Clamp, 15.3-706R

Polyurethane Hose 10000Mm Long
