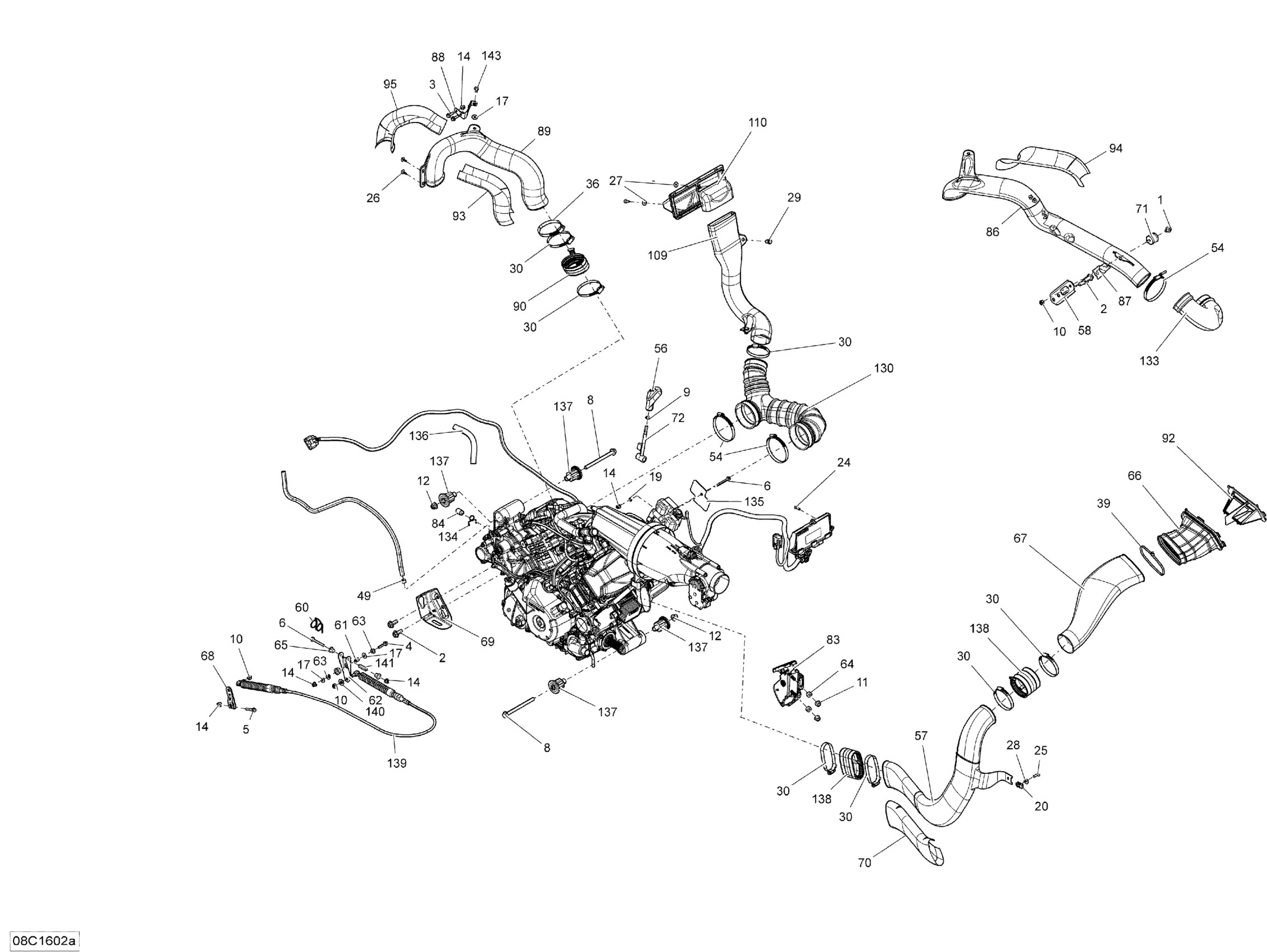

Can-Am Maverick - Maverick MAX, 2016 01- Engine Diagram

#

Description
Price

1

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

2

Hex. Flange Screw M10 X 25

207602544

$1.69

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

5

Hex. Flange Screw M6 X 35

207663544

$0.90

6

Hex. Flange Screw M6 X 50

207665044

$4.12

7

Hex. Flange Screw M8 X 25

207682534

$2.11

8

Hex. Flange Screw M10 X 125

230602546

$7.41

9

Hex. Jam Nut M8

232180491

$7.51

10

Hex. Elastic Stop Nut M8

232581414

$0.56

11

Hex. Flange Nut M8

233081416

$1.15

12

Hex. Flange Elastic Nut M10

233201436

$2.11

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Flat Washer 6 mm

234062410

$0.77

18

Flat Washer 8 mm

234082410

$1.47

19

External Serrated Lock Washer 6 mm

234461608

$1.15

20

Panel Nut M6 X 1.0

250100198

$2.11

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Torx Screw K50 X 16

250000720

$1.69

25

Torx Screw M6 X 20

250000722

$1.68

26

Screw M4 X 16

250000725

$3.49

27

Washer M5

250200025

$0.74

28

Flat Washer

250200082

$0.42

29

Tuflok Plastic Rivet

293150230

$1.47

30

Norma Clamp

293650091

$11.12

36

Norma Gear Clamp

293650118

$13.16

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Grommet

709000582

$4.69

39

Tie Wrap 368 mm

293750008

$1.04

47

Not Available As Spare Part - Friction Washer

Unavailable

49

Spring Clamp

414415200

$0.88

50

Washer

503190439

$5.93

51

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

52

Gasket, Neoprene 2000Mm Long

219704476

$15.36

54

Norma Clamp

514052924

$14.22

55

Norma Gear Clamp

514052983

$15.89

56

Lever Handle

707000284

$19.99

57

Air Inlet

707000639

$19.99

58

Upper Engine Bracket

707000707

$8.79

59

Upper Lever Arm

707000711

$39.99

60

Lever Arm Spring

707000750

$2.68

61

Bushing

707000801

$2.68

62

Lower Lever Arm

707000828

$19.99

63

Flanged Bushing

707000847

$1.25

64

Bushing

707000848

$1.35

65

Flanged Bushing

707000869

$2.89

66

Adaptor

707000908

$35.99

67

Primary Air Intake

707000909

$22.49

68

Lever

707000911

$20.49

69

Cable Support | Engine 1000

707000919

$16.87

70

Reflective Sheet

707000924

$33.99

71

Rubber Isolator

707000949

$11.49

72

UPPER LEVER ARM - Call your local BRP dealership | Europe

707000978

Unavailable

73

Reflector

707000988

$4.14

74

Reflective Sheet

707000991

$10.49

83

Accelerator Pedal

707001166

$274.99

84

Plug

707001185

$1.15

86

CVT Outlet

707001230

$49.99

87

Front Support

707001231

$15.81

88

Rear Support

707001232

$10.99

89

CVT Outlet

707001243

$66.99

90

Adaptor

707001274

$16.25

92

CVT Filter

707001344

$15.49

93

Reflector

707001284

$9.23

94

Reflector

707001286

$9.23

95

Reflector

707001360

$9.23

109

Air Inlet

707001403

$48.99

110

Filter

707001422

$20.49

116

AIR INLET - Call your local BRP dealership

707001727

Unavailable

117

Air Inlet

707001728

$69.99

118

AIR INLET - Call your local BRP dealership

707001729

Unavailable

119

AIR INLET - Call your local BRP dealership

707001730

Unavailable

120

CVT OUTLET - Call your local BRP dealership

707001732

Unavailable

121

CVT OUTLET - Call your local BRP dealership

707001733

Unavailable

122

Hose

707001734

$68.99

124

FRONT SUPPORT - Call your local BRP dealership

707001735

Unavailable

125

COVER - Call your local BRP dealership

707001741

Unavailable

126

CVT Filter

707001742

$39.99

127

REFLECTIVE SHEET - Call your local BRP dealership

707001745

Unavailable

128

REFLECTIVE SHEET - Call your local BRP dealership

707001746

Unavailable

129

REFLECTIVE SHEET - Call your local BRP dealership

707001752

Unavailable

130

Flexible Adaptor

707001400

$24.49

133

Front Adaptor

707001229

$22.49

134

Retainer Clip

707800506

$12.63

135

Insulator Pad

710000073

$11.12

136

Tubing 16 Mm 1000Mm Long

219704408

$7.49

137

Anti Vibration Buffer

707001170

$20.99

138

Flexibale Adaptor

707002585

$10.99

139

Shifting Cable

707001210

$67.99

140

Flat Washer 10 mm

234001410

$1.26

141

Bushing

707001376

$5.24

142

Hose

219704549

$50.99

143

Hex. Flange Screw M6 X 16

210261650

$1.67
