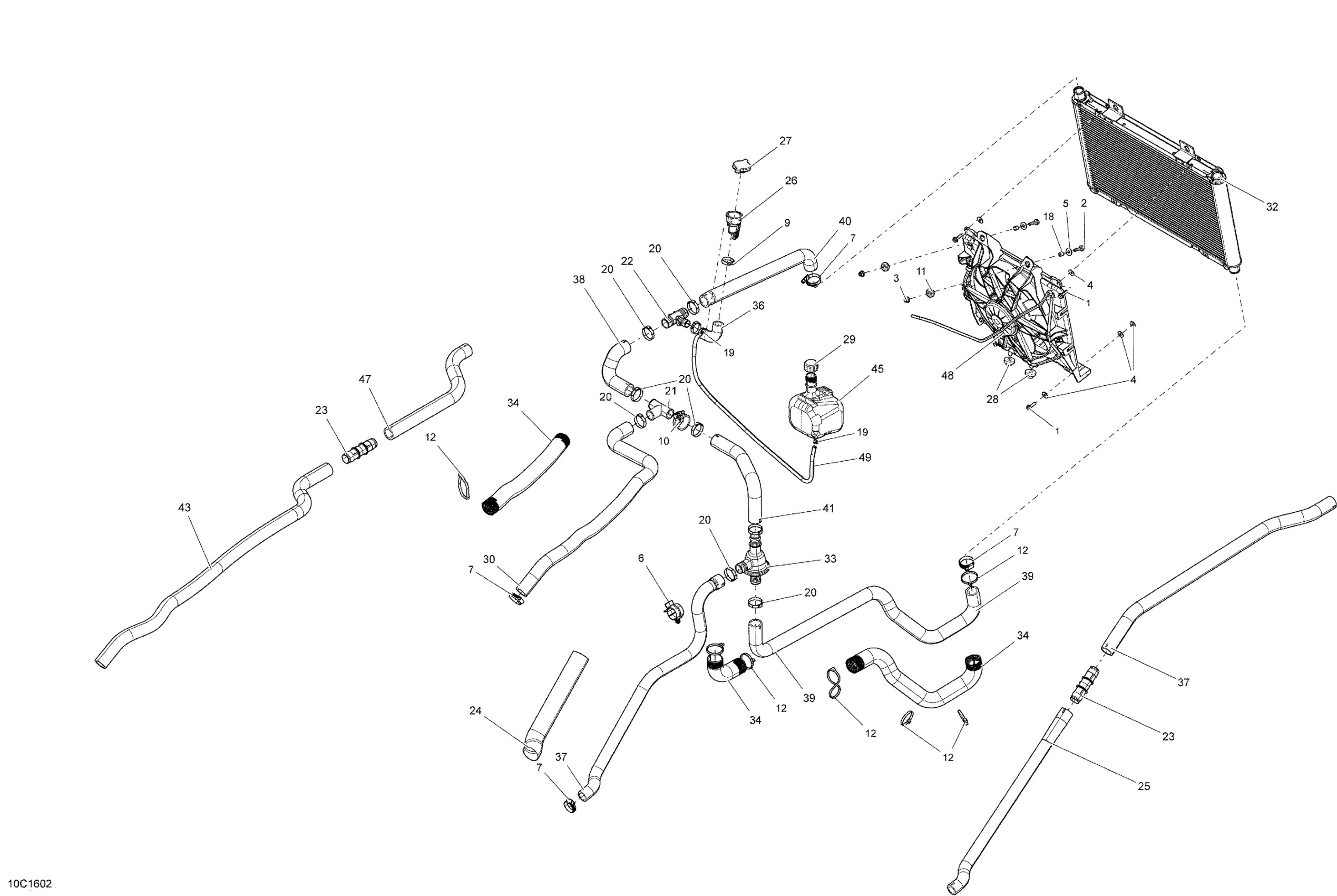

Can-Am Maverick - Maverick MAX, 2016 01- Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Screw M6 X 25

207662534

$2.11

3

Flange Elastic Nut M6

233261434

$4.44

4

Flat Washer 6 mm

234062410

$0.77

5

Flat Washer

250200082

$0.42

6

Retainer

275500590

$9.69

7

Norma Gear Clamp

293650098

$4.44

9

Crimp Clamp

293650099

$4.29

10

Hose Retainer

293650218

$9.39

11

Grommet

709000582

$4.69

12

Tie Wrap 368 mm

293750008

$1.04

18

Bushing

293900105

$7.65

19

Spring Clamp

414554800

$0.88

20

Gear Clamp

509000162

$7.29

21

T-Fitting

509000219

$15.89

22

T-Fitting

509000372

$10.33

23

Fitting

509000914

$7.59

24

PROTECTOR TUBE - Call your local BRP dealership | 1000 Engine

707001789

Unavailable

25

Pump Hose

709200496

$27.99

26

Filler Neck

709200179

$18.49

27

Radiator Pressure Cap

709200207

$25.49

28

Grommet

709200285

$9.69

29

Tank Cap

709200587

$5.40

30

Intermediate Hose

709200382

$28.49

32

Radiator

709200395

$370.99

33

Thermostat

709200406

$98.99

34

Tubing 35 MM 1000MM Long

219704428

$10.99

36

Filler Neck Hose

709200439

$10.99

37

Pump Hose

709200441

$39.99

37

Pump Hose

709200519

$27.99

38

Hose

709200443

$14.99

39

Radiator Inlet Hose

709200444

$65.49

40

Outlet Hose

709200445

$24.99

41

Hose

709200447

$22.49

43

Hose

709200497

$48.99

45

Coolant Tank Ass'y

709200624

$27.99

47

Intermediate Hose

709200520

$24.99

48

Fan Ass'y

709200564

$244.99

49

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99
