Description

Price

10

SEAT MEMBER - Call your local BRP dealership | Package XT, Cab

708001688

Unavailable

10

Seat Member | Includes 10 to 10a7

708002817

$139.99

20

Hex. Flange Screw M8 X 25

207682534

$2.11

30

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Operator Seat Member | Includes 50 to 50a7

708001723

$329.99

60

Middle Seat Frame

708002527

$204.99

70

SEAT FRAME - Call your local BRP dealership | Except Package XT, Cab

708002524

Unavailable

90

LH Cushion Ass'y

708002544

$294.99

90

LH Cushion Ass'y

708002545

$294.99

100

RH Cushion Ass'y

708001498

$284.99

100

RH Cushion Ass'y

708001926

$284.99

110

Central Cushion Ass'y

708001629

$249.99

110

Central Cushion Ass'y

708001928

$249.99

120

Backrest Ass'y

708001701

$379.99

120

Backrest Ass'y

708001995

$349.99

130>130a

Backrest Ass'y | Includes 130 to 130d

708001930

$349.99

130a

Rubber Bumper

293830005

$8.09

140

Center Backrest Ass'y | Except Package XT, Cab

708001630

$349.99

140

Center Backrest Ass'y | Package XT, Cab

708001932

$349.99

150

Seat Base Pivot

708002581

$9.59

160

Hex. Flange Screw M8 X 45

207684544

$3.80

170

Hex. Flange Elastic Nut M8

233281414

$1.47

171

Hex. Flange Elastic Nut M8

233281414

$1.47

172

Hex. Flange Elastic Nut M8

233281414

$1.47

190

Bushing

708001903

$3.79

200

Torx Screw Truss Head K50X20 T20

250000760

$2.11

210

Hex. Screw M6 X 45

207064544

$2.11

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

230

Hex. Screw M8 X 20

207182044

$0.74

250

Pin

250400069

$3.89

260

Hairpin Cotter

269800431

$1.29

270

Latch

269501487

$16.99

280

Grommet

517303756

$4.09

290

Rubber Bumper

293830005

$8.09

300

LH Rail

708000848

$53.99

310

RH Rail | Package XT, Cab

708002001

$35.99

320

STOPPER - Call your local BRP dealership | Package XT, Cab

708002332

Unavailable

500

Head Rest

708001721

$55.99

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$67.99

560

Passenger Buckle

708002329

$67.99

570

Lateral Safety Belt

708002642

$222.49

580

Central Safety Belt

708002643

$243.49

605

Hex. Screw M12 X 80

207028046

$3.91

606

Flat Washer M12

250200102

$2.11

610

Elastic Flange Nut M12

233221416

$2.85

612

Torx Truss Screw M6 X 16

250000721

$1.69

613

Flat Washer M6.6 X 22

250200162

$2.32

616

Safety Belt Screw

708000890

$3.79

617

Position Washer

708000891

$1.29

620

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

630

Lock Nut Nylon 7/16

250100183

$2.00

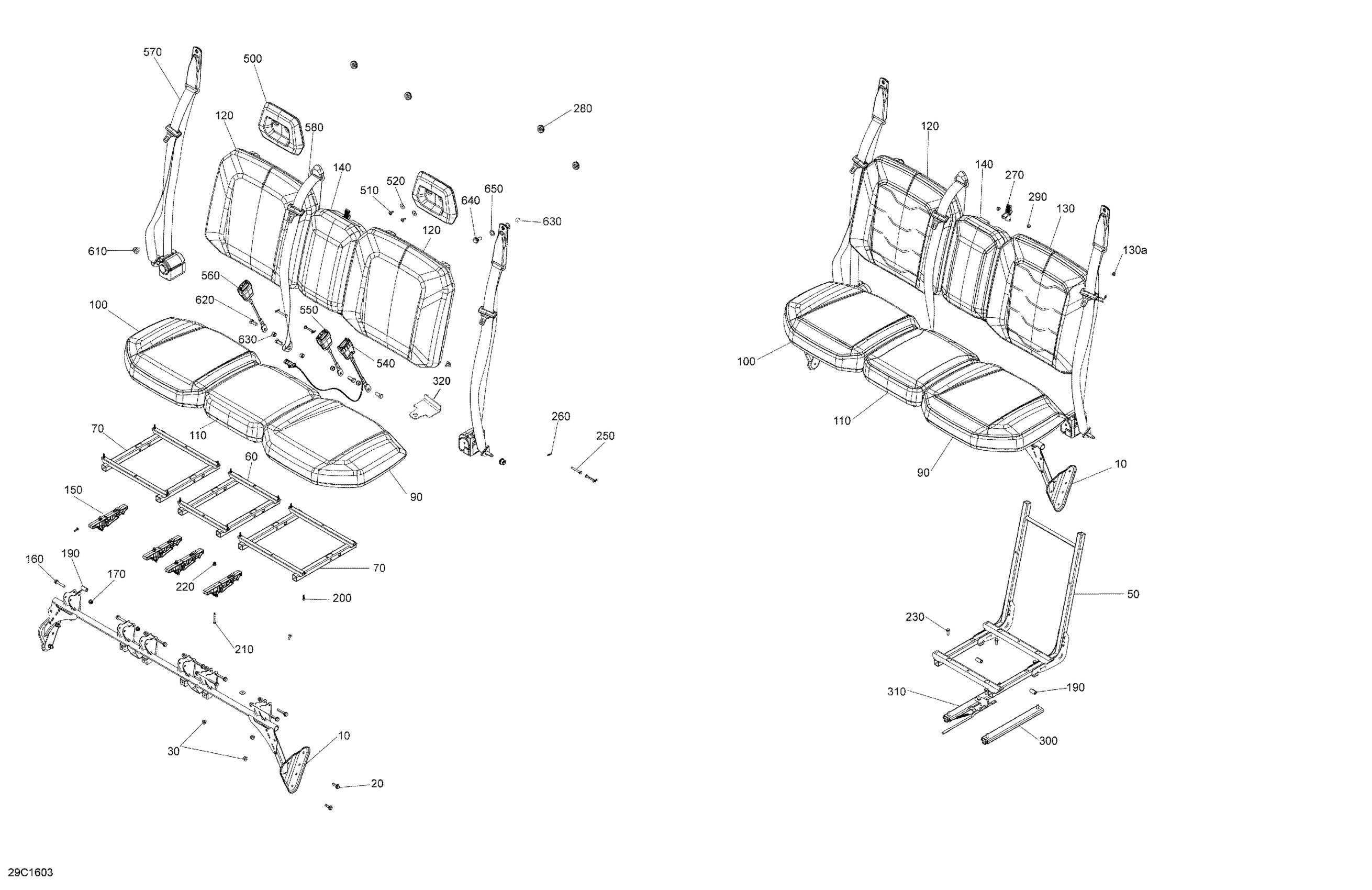

Can-Am Defender, 2016 09- Seat Diagram

SEAT MEMBER - Call your local BRP dealership | Package XT, Cab

Seat Member | Includes 10 to 10a7

Hex. Flange Screw M8 X 25

Hex. Flange Elastic Nut M8

Operator Seat Member | Includes 50 to 50a7

Middle Seat Frame

SEAT FRAME - Call your local BRP dealership | Except Package XT, Cab

LH Cushion Ass'y

LH Cushion Ass'y

RH Cushion Ass'y

RH Cushion Ass'y

Central Cushion Ass'y

Central Cushion Ass'y

Backrest Ass'y

Backrest Ass'y

Backrest Ass'y | Includes 130 to 130d

Rubber Bumper

Center Backrest Ass'y | Except Package XT, Cab

Center Backrest Ass'y | Package XT, Cab

Seat Base Pivot

Hex. Flange Screw M8 X 45

Hex. Flange Elastic Nut M8

Hex. Flange Elastic Nut M8

Hex. Flange Elastic Nut M8

Bushing

Torx Screw Truss Head K50X20 T20

Hex. Screw M6 X 45

Hex. Flange Elastic Nut M6 x 1.0

Hex. Screw M8 X 20

Pin

Hairpin Cotter

Latch

Grommet

Rubber Bumper

LH Rail

RH Rail | Package XT, Cab

STOPPER - Call your local BRP dealership | Package XT, Cab

Head Rest

Driver Buckle

Middle Buckle

Passenger Buckle

Lateral Safety Belt

Central Safety Belt

Hex. Screw M12 X 80

Flat Washer M12

Elastic Flange Nut M12

Torx Truss Screw M6 X 16

Flat Washer M6.6 X 22

Safety Belt Screw

Position Washer

Hex. Cap Screw 7/16'' X 1'' | Europe

Lock Nut Nylon 7/16
