Description

Price

1

Heater System Kit

715004917

$1,625.99

10a

Fan

520001536

$423.99

10b

Duct Adaptor

520001672

$15.99

10c

Rectangular Grid

520001673

$51.99

10d

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$116.49

10e

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$116.49

10f

Grommet 5/8'' | Not Shown

520001676

$7.69

10g

FUSE BOX - Call your local BRP dealership

520001679

Unavailable

10h

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$116.49

10j

HEATER COIL - Call your local BRP dealership

520001535

$479.99

10k

Round Grid

520001681

$29.99

10m

Duct Adaptor

520001682

$19.99

10n

WIRING HARNESS - Call your local BRP dealership

520001683

$284.99

10p

Filter

520001537

$28.99

10q

Console

520001546

$76.99

10r

Lower Cover

520001626

$43.99

10s

RELAY 12V - Call your local BRP dealership

520001684

Unavailable

10t

Valve Ass'y 5/8''

520001685

$309.99

10u

HVAC OVERLAY - Call your local BRP dealership

520001686

$28.99

10v

Torx Screw M6 X 20

250000722

$1.68

10w

Not Available As Spare Part - Friction Washer

Unavailable

10x

Not Available As Spare Part - Friction Washer

Unavailable

10y

Crimp Clamp, 15.3-706R

293650047

$3.29

20

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Torx Screw M6 X 20

250000722

$1.68

100a

Air Duct Kit

520001643

$204.99

100b

Air Duct Kit

520001643

$204.99

100c

Air Duct Kit

520001643

$204.99

100d

Air Duct Kit

520001643

$204.99

100e

Air Duct Kit

520001643

$204.99

110

Tie Wrap 368 mm

293750008

$1.04

200

Central Adaptor

707900452

$16.99

220

Front Grid

707900434

$13.99

230

Torx-Truss Pt K40 X 16

250000759

$2.11

300

LH Adaptor

707900437

$23.99

310

LH Grid

707900435

$23.99

400

RH Adaptor

707900455

$23.99

410

RH Grid

707900436

$23.99

500

Side Flange

707900438

$13.24

510

Tuflok Plastic Rivet

293150230

$1.47

600

LH Support

520001619

$82.99

610

RH Support

520001621

$60.99

620

Central Support

520001623

$164.99

630

Insert

293450278

$4.49

640

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

2300

Storage Box LWR F

707900852

$88.99

2310

Torx Screw K50 X 16

250000720

$1.69

2320

Tuflok Plastic Rivet

293150230

$1.47

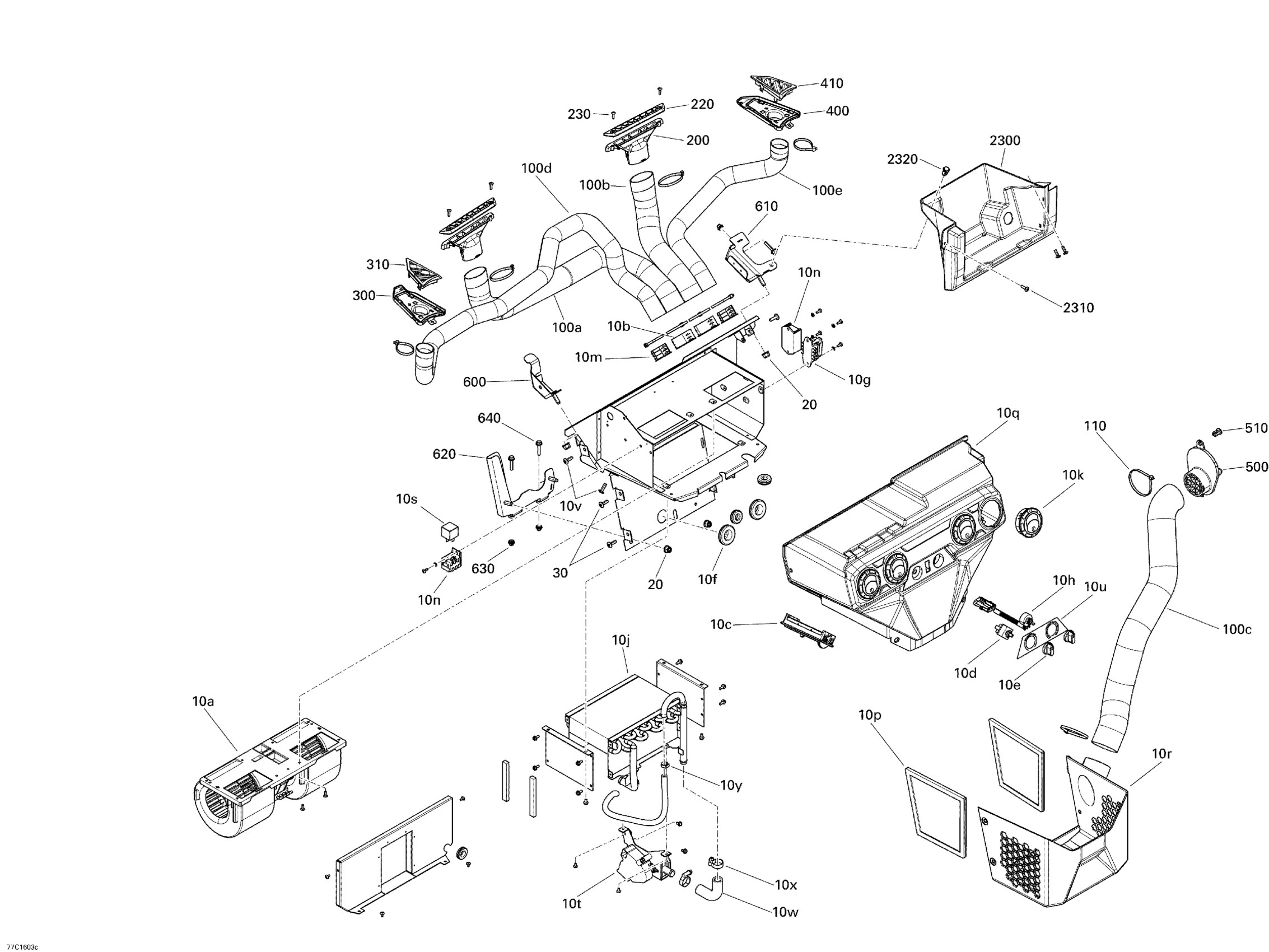

Can-Am Defender, 2016 09- Cab - Heating System Diagram

Heater System Kit

Fan

Duct Adaptor

Rectangular Grid

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

Grommet 5/8'' | Not Shown

FUSE BOX - Call your local BRP dealership

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

HEATER COIL - Call your local BRP dealership

Round Grid

Duct Adaptor

WIRING HARNESS - Call your local BRP dealership

Filter

Console

Lower Cover

RELAY 12V - Call your local BRP dealership

Valve Ass'y 5/8''

HVAC OVERLAY - Call your local BRP dealership

Torx Screw M6 X 20

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Crimp Clamp, 15.3-706R

Hex. Flange Elastic Nut M8

Torx Screw M6 X 20

Air Duct Kit

Air Duct Kit

Air Duct Kit

Air Duct Kit

Air Duct Kit

Tie Wrap 368 mm

Central Adaptor

Front Grid

Torx-Truss Pt K40 X 16

LH Adaptor

LH Grid

RH Adaptor

RH Grid

Side Flange

Tuflok Plastic Rivet

LH Support

RH Support

Central Support

Insert

Hex. Flange Screw M6 X 30, Scotch Grip

Storage Box LWR F

Torx Screw K50 X 16

Tuflok Plastic Rivet
