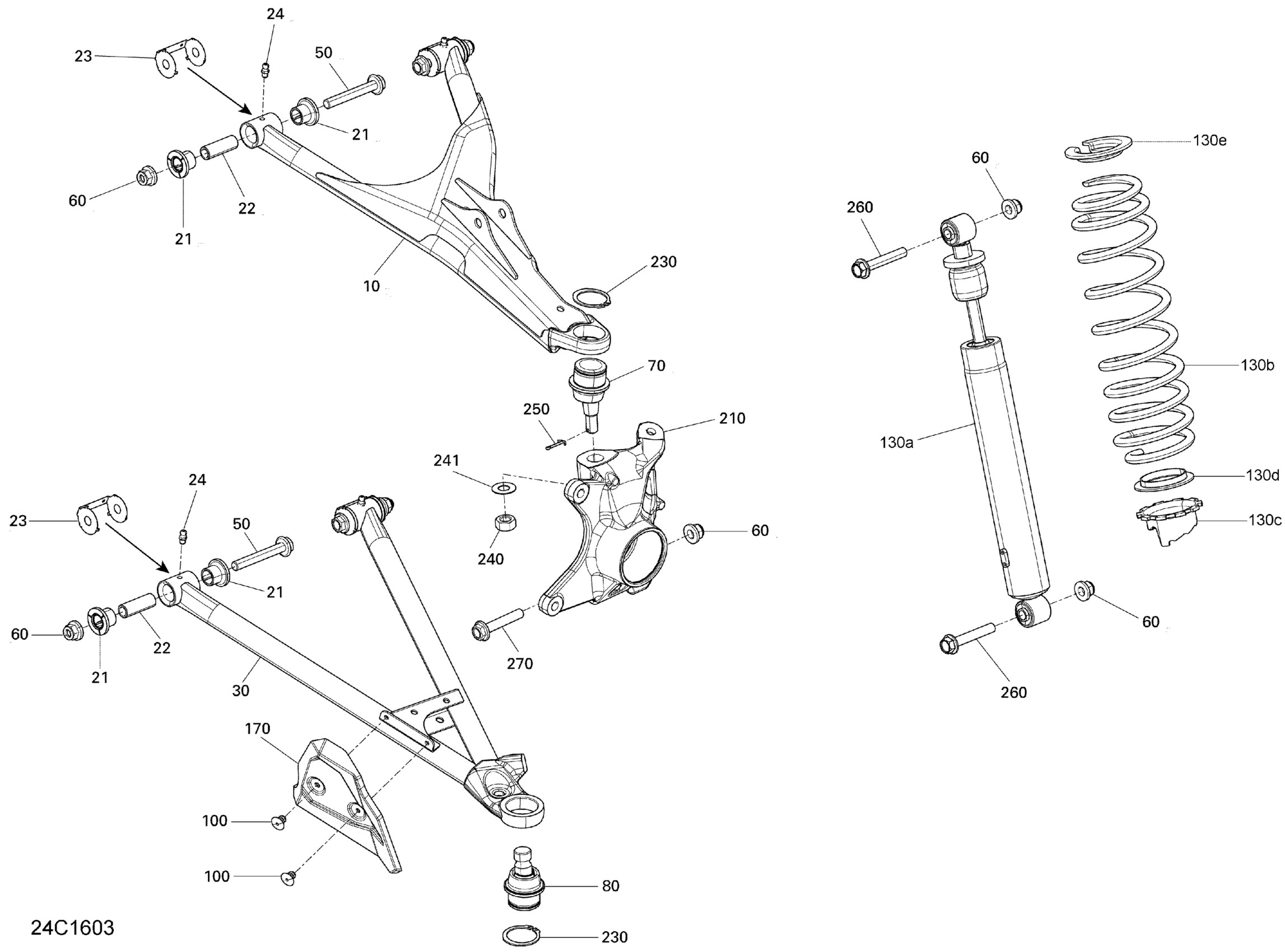

Can-Am Defender, 2016 07- Front Suspension Diagram

Deep Black, LH Upper Suspension Arm

706204176

$190.99

Deep Black, RH Upper Suspension Arm

706204175

$190.99

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Grease Fitting

408200700

$3.49

LH Front Lower Suspension Arm

706203028

$190.99

RH Front Lower Suspension Arm

706203029

$190.99

Hex. Flange Screw M10 X 70

207607046

$2.96

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Joint

706202044

$35.99

Ball Joint

706202045

$35.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Front Shock | Engine HD10 P-Convenience DPS, XT

706202126

$169.49

Front Shock

706202602

$169.49

SPRING - Call your local BRP dealership | Engine HD10 P-XT

706202127

Unavailable

BLACK FRONT SPRING - Call your local BRP dealership | Engine HD10 P-Convenience, P-DPS

706202175

Unavailable

SPRING - Call your local BRP dealership | Engine HD8 Except P-XT

706202504

Unavailable

SPRING - Call your local BRP dealership | Engine HD10 P-Cab

706202575

Unavailable

Black Front Spring | Engine HD8 P-XT

706202604

$100.49

Adjustment Ring

706001893

$16.49

Spring Guide

503187500

$10.49

Spring Cup

706001894

$15.49

RH CV joint Guard

706202135

$11.01

LH CV joint Guard

706202134

$11.01

LH Knuckle

706205517

$148.49

RH Knuckle

706205047

$201.49

Circlip

293370035

$2.64

Nut M12

250100099

$2.09

Hardened Washer

706200281

$2.85

Cotter Pin

211400017

$0.33

Hex. Flange Screw M10 X 6

207606046

$4.12

Hex. Flange Screw M10 X 55

207605546

$2.11
