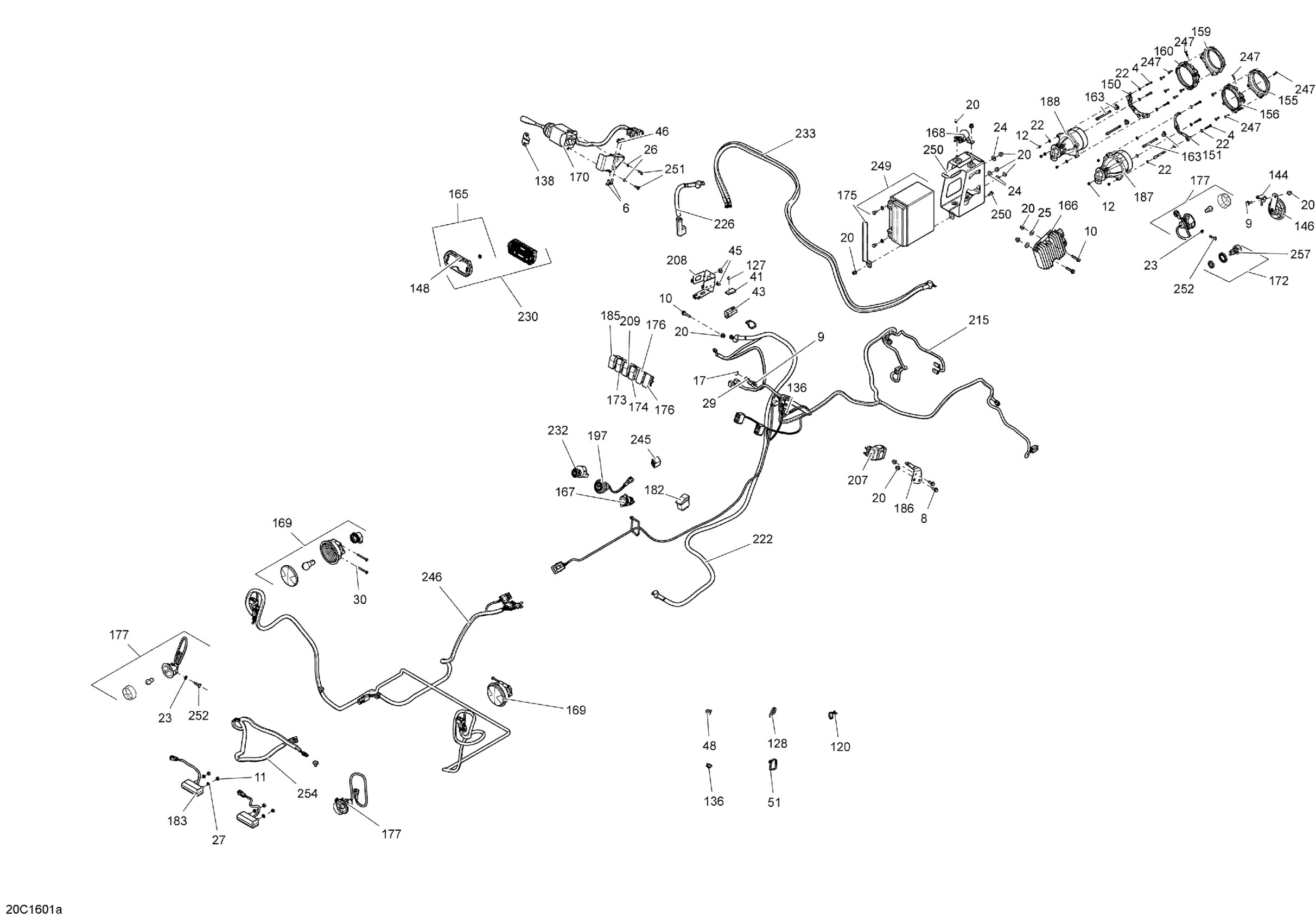

Can-Am Commander - Commander MAX, 2016 10- Electrical System - STD-DPS Diagram

#

Description
Price

4

Hex. Screw M4 X 25

207142544

$2.00

6

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

8

Hex. Flange Screw M6 X 16

207661644

$0.74

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

11

Hex. Nut M6

232061600

$1.15

12

Elastic Stop Nut M4

232541414

$0.58

15

Elastic Stop Nut M6

232561434

$1.99

17

Hex. Flange Nut M6

233061414

$1.68

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Flat Washer M5

234051410

$0.53

23

Flat Washer 6 mm

234061410

$1.36

24

Flat Washer 6 mm

234062410

$0.77

25

Stainless Steel Flat Washer

234062670

$2.11

26

Lock Washer 5 mm | Europe

234151401

$0.55

27

Lock Washer Helical M6

234161601

$1.15

29

External Serrated Lock Washer 6 mm

234461608

$1.15

30

Hex. Screw K50 X 45

241154540

$2.11

31

Panel Nut M6 X 1.0

250100198

$2.11

33

Torx Head Screw M6 X 16

250000717

$2.11

41

Clip

270000141

$11.49

43

Diagnostic Connector

278002704

$19.49

44

Starter Relay

278003012

$42.49

45

Pop Rivet 3/16"

293150103

$0.55

46

Threaded Insert M6 X 1.0

250100242

Unavailable

47

Mount Dart

293730040

$1.04

48

Mount Dart

293730040

$1.04

51

Tie Wrap 368 mm

293750008

$1.04

120

Tie-Rap 173 mm

293750009

$1.04

127

Pop Rivet 3/16"

390402400

$0.35

128

Tie-Rap 180 mm

414115200

$0.11

136

Clip

414227300

$1.67

138

Flasher Decal | Europe

704902614

$19.99

144

SUPPORT - Call your local BRP dealership

709200284

Unavailable

145

Flasher Arm Support | Europe

709400810

$29.49

146

Horn

710004791

$38.99

148

Trim Ring Ass'y

710001183

$19.99

150

LH High Light Support

710001036

$5.29

151

LH Low Light Support

710001037

$9.09

153

RH Low Front Housing

710001081

$19.99

154

RH Low Rear Housing

710001082

$12.99

155

LH Low Front Housing

710001083

$19.99

156

LH Low Rear Housing

710001084

$12.99

157

RH High Front Housing

710001085

$19.99

158

RH High Rear Housing

710001086

$12.99

159

LH High Front Housing

710001087

$19.99

160

LH High Rear Housing

710001088

$12.99

161

RH Low Light Support

710001094

$9.09

162

RH High Light Support

710001115

$5.29

163

Setting Screw

710001147

$12.71

165

Trim Ring Ass'y

710001183

$19.99

166

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

167

DC Outlet

710001248

$37.99

168

Starter Relay

710007777

$48.49

169

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

169a

Bulb

520000758

$9.10

170

Turn Signal | Europe

710001721

$209.99

171

Hi/Low Switch | Except Europe

710001725

$21.49

172

Day Light | Europe

710001726

$35.99

173

4X4 Switch

710001737

$31.99

174

Switch DPS

710001781

$22.99

175

Battery Holder

710001916

$21.99

176

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

177

Flasher | Europe

710002964

$35.99

182

Switch, Over ride

710002053

$19.49

183

License Light

710002055

$58.49

183a

Bulb

219800128

$2.46

185

Switch Hazard | Europe

710002076

$19.49

186

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

187

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

187a

Halogen Bulb

415129249

$41.49

188

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

188a

Halogen Bulb

415129249

$41.49

197

Engine Start Button

710002594

$60.49

207

Flasher Unit

710003239

$78.49

208

Fuse Holder

710003335

$10.11

209

Switch PPS Sport

710003541

$19.49

210

Cap

710003582

$11.99

211

Battery Rubber Pad

710003602

$12.99

215

WIRING HARNESS ASSY - Call your local BRP dealership

710004336

Unavailable

222

Positive Cable

710004383

$42.99

225

Positive Cable

710004390

$36.99

226

Positive Cable | Package STD

710004384

$35.99

226

Positive Cable | Model-DPS

710004393

$35.99

230

Speedometer

710005087

$399.99

232

Ignition Switch

710008400

$78.49

232

Switch_Ignition | Model-Europe

710007865

$68.99

233

Winch Cable (-/+) | X, DPS

710004575

$79.49

233

Winch Cable (-/+) | Package DPS MAX Model

710004919

$88.99

239

Wiring Harness Assy | COMMANDER

710005092

$1,169.99

245

WIRING HARNESS ASSY - Call your local BRP dealership

710005093

Unavailable

246

Rear Harness

710004681

$99.99

246

WIRING HARNESS REAR - Call your local BRP dealership | Europe Model

710004682

Unavailable

247

Phillips Screw K40 X 16

250000723

$0.98

249

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

250

Battery Support

710003129

$48.99

251

Hex. Forming Screw M5 X 16

210251650

$1.15

252

Torx Screw M6 X 25

250000758

$2.11

253

BRP Logo13 mm

704904615

$13.49

254

Rear Harness | Europe Model

710004683

$154.99

257

Cap Protector | Model-Europe

710003269

$12.11
