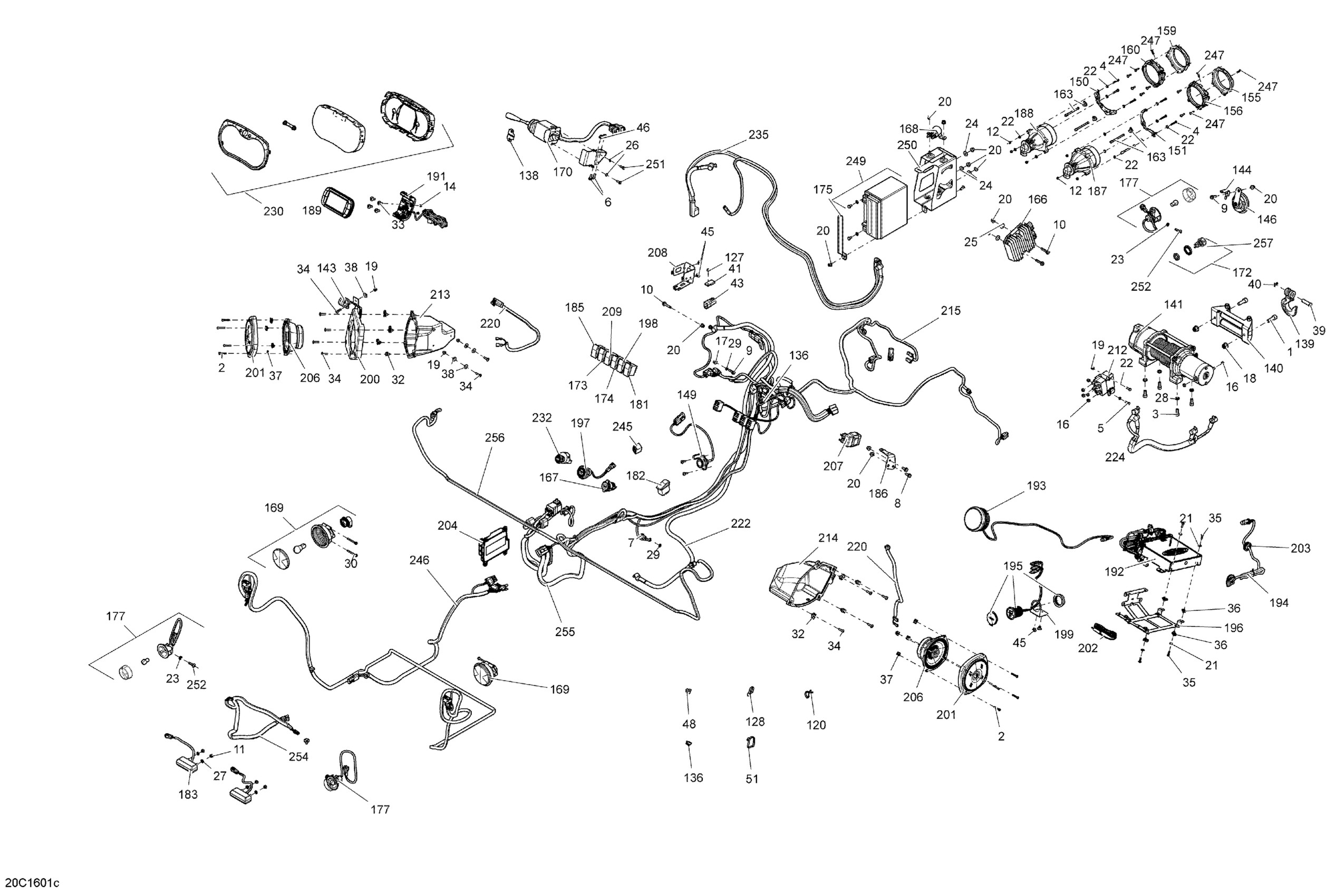

Can-Am Commander - Commander MAX, 2016 10- Electrical System - LTD Diagram

Socket Screw M10 x 30 | XT

205003044

$3.17

Socket Head Screw M4 X 25

205042560

$2.22

Socket Head Screw M8 X 20

205082044

$1.15

Hex. Screw M4 X 25

207142544

$2.00

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Nut M6

232061600

$1.15

Elastic Stop Nut M4

232541414

$0.58

Elastic Stop Nut M4

232541484

$0.74

Elastic Stop Nut M6

232561434

$1.99

Elastic Stop Nut M6

232561434

$1.99

Hex. Flange Nut M6

233061414

$1.68

Hex. Flange Elastic Nut M10

233201414

$1.58

Elastic Flange Nut M5

233251494

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer 4 mm, Stainless

234042600

$1.15

Flat Washer M5

234051410

$0.53

Flat Washer 6 mm

234061410

$1.36

Flat Washer 6 mm

234062410

$0.77

Stainless Steel Flat Washer

234062670

$2.11

Lock Washer 5 mm | Europe

234151401

$0.55

Lock Washer Helical M6

234161601

$1.15

Lock Washer 8 mm

234181401

$0.92

External Serrated Lock Washer 6 mm

234461608

$1.15

Hex. Screw K50 X 45

241154540

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Torx Head Screw M6 X 16

250000717

$2.11

Torx Head Screw M4 X 16

250000797

$2.09

Torx Screw M5 X 20

250000724

$1.69

Torx Screw M4 X 16

250000750

$1.68

Extruded Panel Nut M4 X 0.7

250100143

$8.49

Extruded Panel Nut M4 X 0.7

250100143

$8.49

Washer M5

250200025

$0.74

Clevis Pin

250400021

$13.18

Cotter Pin

250400022

$9.69

Clip

270000141

$11.49

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Diagnostic Connector

278002704

$19.49

Starter Relay

278003012

$42.49

Pop Rivet 3/16"

293150103

$0.55

Threaded Insert M6 X 1.0

250100242

Unavailable

Mount Dart

293730040

$1.04

Mount Dart

293730040

$1.04

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 173 mm

293750009

$1.04

Pop Rivet 3/16"

390402400

$0.35

Tie-Rap 180 mm

414115200

$0.11

Clip

414227300

$1.67

Flasher Decal | Europe

704902614

$19.99

Winch Hook Kit

705014949

$24.99

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

Winch | Package-XT, XTP

705008547

$739.99

Hose Anchor

709200036

$11.12

SUPPORT - Call your local BRP dealership

709200284

Unavailable

Flasher Arm Support | Europe

709400810

$29.49

Horn

710004791

$38.99

Clip

710000992

$4.29

Winch Connector

710001023

$51.99

LH High Light Support

710001036

$5.29

LH Low Light Support

710001037

$9.09

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

RH Low Front Housing

710001081

$19.99

RH Low Rear Housing

710001082

$12.99

LH Low Front Housing

710001083

$19.99

LH Low Rear Housing

710001084

$12.99

RH High Front Housing

710001085

$19.99

RH High Rear Housing

710001086

$12.99

LH High Front Housing

710001087

$19.99

LH High Rear Housing

710001088

$12.99

RH Low Light Support

710001094

$9.09

RH High Light Support

710001115

$5.29

Setting Screw

710001147

$12.71

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

DC Outlet

710001248

$37.99

Starter Relay

710007777

$48.49

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Turn Signal | Europe

710001721

$209.99

Hi/Low Switch | Except Europe

710001725

$21.49

Day Light | Europe

710001726

$35.99

4X4 Switch

710001737

$31.99

Switch DPS

710001781

$22.99

Battery Holder

710001916

$21.99

Flasher | Europe

710002964

$35.99

Switch Winch

710002052

$28.49

Switch, Over ride

710002053

$19.49

License Light

710002055

$58.49

Bulb

219800128

$2.46

Switch Hazard | Europe

710002076

$19.49

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

Halogen Bulb

415129249

$41.49

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Halogen Bulb

415129249

$41.49

GPS | LTD North America

710002544

Unavailable

GPS Support | LTD Model

710003210

$214.99

Amplifier

710005442

$462.49

Radio Interface

710002549

$391.99

IPOD EXTENSION - Call your local BRP dealership

710002550

Unavailable

USB Extension

710002551

$139.99

Amplifier Support

710002556

$114.99

Engine Start Button

710002594

$60.49

SWITCHED ACCESSORY - Call your local BRP dealership

710002684

Unavailable

USB Extension Support

710002731

$18.49

Speaker Box Plate

710002789

$15.36

Speaker Cover

710002790

$13.76

Antenna

710002810

$11.63

Grommet Boot

710002926

$4.69

Calibrated Compressor Module

710002947

$499.99

Front Speaker

710003233

$92.99

Flasher Unit

710003239

$78.49

Fuse Holder

710003335

$10.11

Switch PPS Sport

710003541

$19.49

Cap

710003582

$11.99

Battery Rubber Pad

710003602

$12.99

Solenoid Kit | XT

715007084

$202.49

LH FRONT SPEAKER - Call your local BRP dealership

710004300

Unavailable

RH Speaker HSG

705012293

$16.65

WIRING HARNESS ASSY - Call your local BRP dealership

710004336

Unavailable

Speaker Harness | Includes 1 to S+

710004340

$24.49

Positive Cable

710004383

$42.99

Not Available As Spare Part - Friction Washer

Unavailable

Electrical Winch Cable | XT

710004387

$49.99

Positive Cable

710004390

$36.99

Speedometer Ass'y | Model-XT

710005116

$439.99

Ignition Switch

710008400

$78.49

Switch_Ignition | Model-Europe

710007865

$68.99

NEG POS CABLE - Call your local BRP dealership | MAX Model

710004918

$114.99

Winch Cable (-/+) | XT

710005123

$88.99

Wiring Harness Assy | COMMANDER

710005092

$1,169.99

WIRING HARNESS ASSY - Call your local BRP dealership

710005093

Unavailable

Rear Harness

710004681

$99.99

WIRING HARNESS REAR - Call your local BRP dealership | Europe Model

710004682

Unavailable

Phillips Screw K40 X 16

250000723

$0.98

Torx Screw K50 X 16

250000720

$1.69

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Support

710003129

$48.99

Hex. Forming Screw M5 X 16

210251650

$1.15

Torx Screw M6 X 25

250000758

$2.11

Rear Harness | Europe Model

710004683

$154.99

Compressor Harness | Except MAX Model

710005161

$419.99

Radio Harness

710004339

$114.99

Cap Protector | Model-Europe

710003269

$12.11
