Description

Price

1

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

2

Socket Screw M10 X 16

205501644

$4.29

4

Hex. Flange Screw M6 X 25

207562544

$1.69

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Hex. Elastic Flange Nut M6

233161464

$1.01

10

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Torx Screw M6 X 16

250000223

$2.11

16

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

17

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

18

Hex. Flange Screw M6

250000672

$2.11

19

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

22

Threaded Insert M6 X 1.0

250100242

Unavailable

25

Tie Wrap 368 mm

293750008

$1.04

29

Seat Member

708000667

$56.99

34

Seat Cover

708001103

$117.99

34

Seat Cover

708001564

$81.49

34

Seat Cover "X" | Package-XTP

708001559

$81.49

35

Backrest Cover

708000675

$97.99

35

BACKREST COVER - Call your local BRP dealership

708001562

$114.99

35

BACKREST COVER X - Call your local BRP dealership | Package-XTP

708001558

Unavailable

55

Passenger Buckle Side | Model-North America, International

708002062

$53.99

55

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

708000857

Unavailable

58

RH Rail

708001739

$35.99

62

LH Rail

708000848

$53.99

66

Driver Buckle Side | Europe

708000856

$123.49

66

Driver Buckle Side

708002061

$70.99

68

Safety Belt Screw

708000890

$3.79

69

Position Washer

708000891

$1.29

70

Rubber Bumper

708001671

$2.89

71

Spring

708000921

$1.29

80

Head Rest

708001074

$104.99

113

Seat Support

708001245

$28.99

121

SAFETY BELT - Call your local BRP dealership | Europe

708001130

Unavailable

121

Safety Belt | Model-North America, International

708001854

$274.99

134

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

134

BACKREST ASS'Y - Call your local BRP dealership

708001561

Unavailable

134

BACKREST X ASS'Y - Call your local BRP dealership | Package-XTP

708001556

Unavailable

135

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

135

Cushion Ass'y

708001563

$319.99

135

Cushion "X" Ass'y | Package-XTP

708001557

$319.99

137

Seat Latch

708001355

$2.59

138

Operator Seat Frame

708001356

$329.99

139

Passenger Seat Frame

708001357

$319.99

156

Retaining Rod LH

708002302

$14.99

159

RH Retaining Rod

708001482

$12.99

179

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

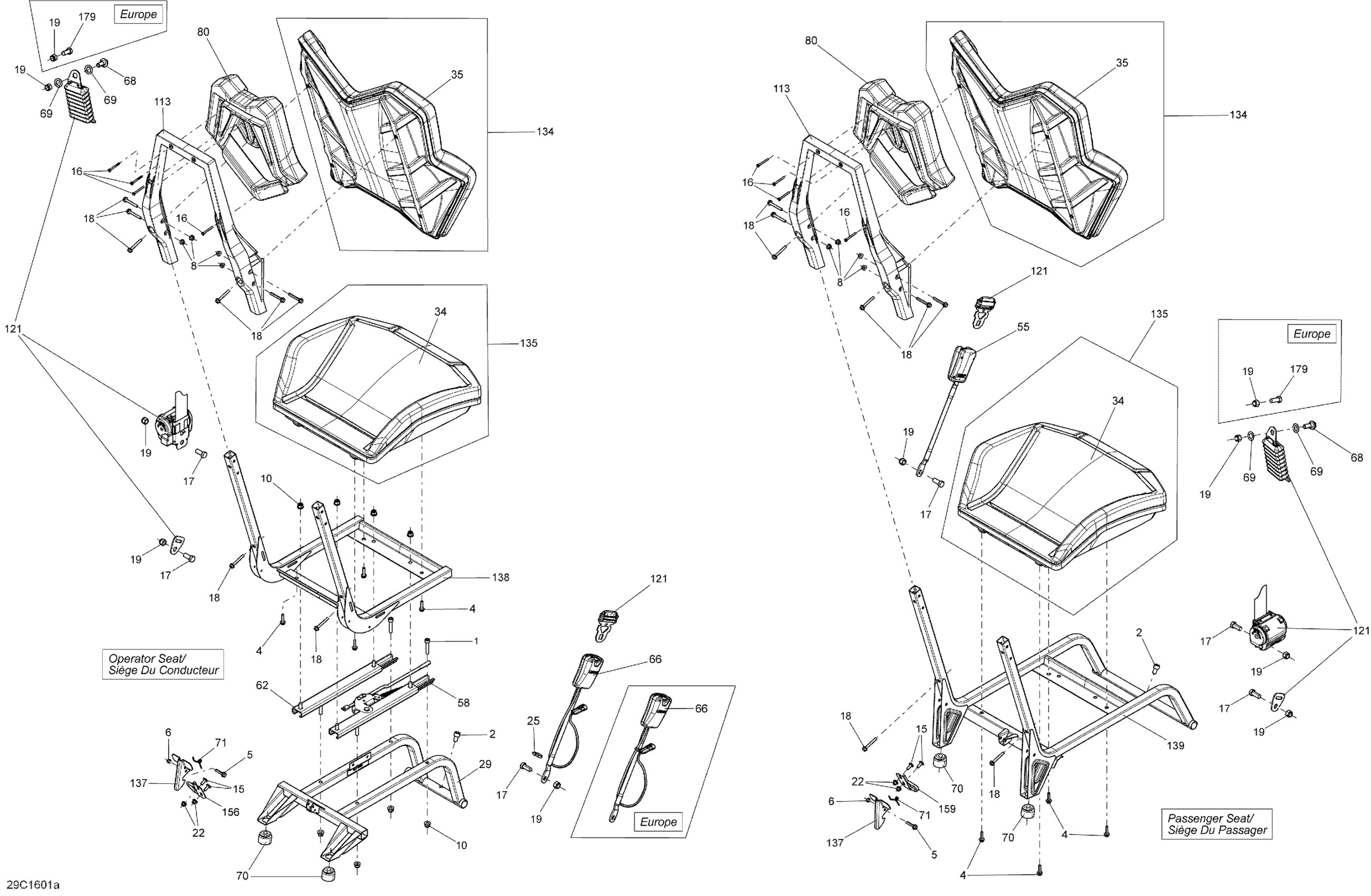

Can-Am Commander - Commander MAX, 2016 09- Seat Diagram

Socket Head Screw M8 X 1.25 X 40

Socket Screw M10 X 16

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Elastic Stop Nut M6

Hex. Elastic Flange Nut M6

Hex. Flange Elastic Nut M8

Torx Screw M6 X 16

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

Hex. Cap Screw 7/16'' X 1'' | Europe

Hex. Flange Screw M6

Nylon Insert Hex. Lock Nut 7/16-20

Threaded Insert M6 X 1.0

Tie Wrap 368 mm

Seat Member

Seat Cover

Seat Cover

Seat Cover "X" | Package-XTP

Backrest Cover

BACKREST COVER - Call your local BRP dealership

BACKREST COVER X - Call your local BRP dealership | Package-XTP

Passenger Buckle Side | Model-North America, International

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

RH Rail

LH Rail

Driver Buckle Side | Europe

Driver Buckle Side

Safety Belt Screw

Position Washer

Rubber Bumper

Spring

Head Rest

Seat Support

SAFETY BELT - Call your local BRP dealership | Europe

Safety Belt | Model-North America, International

Backrest Ass'y | Includes 2 to 3

BACKREST ASS'Y - Call your local BRP dealership

BACKREST X ASS'Y - Call your local BRP dealership | Package-XTP

Cushion Ass'y | Includes 4 to 5

Cushion Ass'y

Cushion "X" Ass'y | Package-XTP

Seat Latch

Operator Seat Frame

Passenger Seat Frame

Retaining Rod LH

RH Retaining Rod

Hex. Cap Screw 7/16'' X 1'' | Europe
