Description

Price

1

Hex. Screw M6 X 65

207066544

$0.46

2

Hex. Screw M6 X 90

207069044

$4.87

3

Hex. Flange Screw M6 X 16

207661644

$0.74

4

Hex. Flange Screw M6 X 50

207665044

$4.12

5

Hex. Flange Screw M6 X 95

207669584

$3.38

6

Hex. Flange Screw M8 X 45

207684586

$3.17

7

Carriage Bolt M8 X 70

207787044

$1.37

8

Flat Washer

224061121

$0.53

9

Hex. Flange Screw M6 X 130

230663084

$3.38

10

Hex. Flange Screw M8 X 130

230683034

$7.51

11

Hex. Jam Nut M8

232180600

$0.67

12

Elastic Stop Nut M5

232551414

$0.87

13

Elastic Stop Nut M6

232561434

$1.99

14

Hex. Elastic Stop Nut M6

232561600

$1.15

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

Flat Washer 6 mm

234061410

$1.36

19

Flat Washer 6 mm

234062410

$0.77

20

Stainless Steel Flat Washer

234062670

$2.11

21

Flat Washer 8 mm, Nylon

234081100

$1.39

22

Lock Washer 8 mm

234181401

$0.92

23

Panel Nut M6 X 1.0

250100198

$2.11

24

Torx Screw K50 X 16

250000720

$1.69

25

Torx Truss Screw M6 X 16

250000721

$1.69

26

Torx Screw M6 X 20

250000722

$1.68

27

Torx Screw M5 X 20

250000724

$1.69

28

Torx Screw M5 X 14

250000742

$1.47

29

Torx Screw M6 X 45

250000748

$1.90

30

Torx Truss Screw M6 X 50

250000749

$3.17

31

Torx Screw M6 X 25

250000758

$2.11

32

Stainless, Torx Screw M6 X 30

250000842

$2.11

33

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

34

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

35

Pop Rivet 3/16"

293150100

$1.09

37

Pop Rivet 3/16"

293150103

$0.55

38

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

39

Pop Rivet 3/16 | XT

293150190

$5.89

40

Frame Rubber Bumper

293720091

$9.39

42

Rubber Bumper

293830005

$8.09

43

Pin

414079100

$2.39

44

Hair Pin

414575600

$1.89

45

Housing Half

506150400

$7.62

46

Housing Bushing

506150500

$7.99

47

Stopper Plate

506150600

$4.39

48

Red Reflector

705011221

$14.49

49

LH Upper Rear Mudguards | LTD

705008671

$34.99

50

RH Upper Rear Mudguards | LTD

705008673

$34.99

51

Half Ring

705500033

$8.29

52

Rubber Stopper

708000884

$6.89

53

Inside Top Pannel

708300053

$139.99

54

Outside Bottom Pannel Ass'y

715002365

$154.99

55

INSIDE BOTTOM PANNEL - Call your local BRP dealership

708300073

Unavailable

56

Separator Pannel Ass'y | Includes 16 to 17

708300131

$279.99

57

Box Retainer

708300136

$8.69

58

Top Rod

708300160

$3.39

59

LH Latch

708300162

$23.99

60

Lower Bottom Rod

708300164

$3.39

61

Pivot Bushing

708300172

$4.79

62

LH Tie Rod Clip

708300182

$2.89

63

Retaining Plate

708300183

$9.69

64

Activator

708300184

$9.29

65

Bracket Pivot

708300185

$4.79

66

RH Latch

708300201

$23.99

67

RH Tie Rod Clip

708300202

$2.89

68

Retaining Plate Support

708300206

$5.19

69

Adjustable Stopper Plate

708300210

$4.79

70

Spring

708300219

$4.79

71

LH Painted Rail Cap | Except XT

708300333

$15.99

71

RH Painted Rail Cap | Except XT

708300334

$16.99

73

LH Welded Rail | XT

708300231

$74.99

73

RH Welded Rail | XT

708300232

$74.99

74

LH Latch Lever Support

708300278

$9.69

75

Upper Pivot Support

708300345

$4.79

76

Plate Support | Europe

708300349

$43.99

77

RH Latch Lever Support

708300351

$9.69

78

Cap Latch Lever

708300358

$6.59

79

LH Upper Support

708300359

$10.49

80

RH Upper Support

708300360

$9.49

81

LH Lower Support

708300361

$10.99

82

RH Lower Support

708300362

$9.69

83

Bushing

708300365

$5.89

84

REFLECTOR SUPPORT - Call your local BRP dealership | Europe

708300367

Unavailable

85

Clamp Reatiner

708300392

$2.68

86

Handle

708300398

$13.99

88

Spring

708300454

$4.79

89

Spacer

708300470

$7.73

90

Left Box Kit

715002361

$214.99

134

RH Box Kit | Commander

715003385

$239.99

134

Right Box Kit | Com-Max

715003387

$239.99

92

Bushing

708300735

$13.49

93

Spacer

708300736

$9.69

94

Bushing

708300737

$5.99

95

Cargo Handle Ass'y

708300751

$72.99

97

Lower Retainer Cable

708300762

$16.99

98

Upper Retainer Cable

708300763

$33.99

102

Heat Deflector

708300780

$13.99

103

Heat Deflector Sheet

708300809

$10.99

104

Heat Deflector Sheet

708300810

$10.99

105

Heat Deflector Sheet

708300811

$9.69

106

Heat Deflector Sheet

708300812

$10.99

107

Black Box Support

708300875

$309.99

108

Spacer

708300902

$9.69

109

Spacer

708301059

$19.49

110

Gaz Shock

708301136

$39.99

111

FENDER REAR L B-341 - Call your local BRP dealership | White

708300840

Unavailable

111

BLACK LH REAR FENDER - Call your local BRP dealership | Model-XTP

708300928

Unavailable

111

PAINTED DARTH VADER BLACK LH REAR FENDER - Call your local BRP dealership | Black Model

708302376

Unavailable

111

Yellow LH Rear Fender | STD

708301242

$139.99

111

VIPER RED LH REAR FENDER - Call your local BRP dealership | STD

708301250

Unavailable

111

Quarry Gray LH Rear Fender

708301308

$139.99

111

Brush Aluminum LH Rear Fender

708301312

$409.99

111

Deep Pewter LH Rear Fender | Model-Deep Pewter Satin

708301315

$409.99

111

Camo, LH Rear Fender | Camo Model

708301687

$409.99

111

FENDER REAR L B-367 - Call your local BRP dealership | Cognac Model

708301689

Unavailable

112

YELLOW RH REAR FENDER - Call your local BRP dealership | STD

708301243

Unavailable

112

VIPER RED RH REAR FENDER - Call your local BRP dealership

708301251

Unavailable

112

QUARRY GRAY RH REAR FENDER - Call your local BRP dealership

708301309

Unavailable

112

Brush Aluminum RH Rear Fender

708301313

$409.99

112

Deep Pewter RH Rear Fender | Model-Deep Pewter Satin

708301316

$409.99

112

Camo, RH Rear Fender | Camo Model

708301688

$409.99

112

PAINTED COGNAC RH REAR FENDER - Call your local BRP dealership | Cognac Model

708302375

Unavailable

112

Painted Hybrid White Rh Rear Fender | White

708302365

$409.99

112

Painted Darth Vader Black Rh Rear Fender | Black Model

708302377

$409.99

112

Black RH Rear Fender | Model-XTP

708300929

$409.99

113

Yellow Outside Top Pannel | X, Yellow

708301256

$164.99

113

VIPER RED OUTSIDE TOP PANNEL - Call your local BRP dealership

708301257

$134.99

113

QUARRY GRAY OUTSIDE TOP PANNEL - Call your local BRP dealership

708301310

Unavailable

113

ORANGE CRUSH OUTSIDE TOP PANNEL - Call your local BRP dealership

708301311

Unavailable

113

DEEP PEWTER OUTSIDE TOP PANNEL - Call your local BRP dealership | Model-Deep Pewter Satin

708301317

Unavailable

113

Timeless Black, Top Panel

708302403

$399.99

113

Camo, Outside Top Panel | Camo Model

708301693

$389.99

113

COGNAC OUTSIDE TOP PANNEL - Call your local BRP dealership | Cognac Model

708301694

Unavailable

113

White Outside Top Pannel | White

708300672

$449.99

114

LH Rail Cover

708301380

$3.69

115

RH Rail Cover

708301381

$3.69

116

LH Rear Facia

708301383

$23.99

117

RH Rear Facia

708301384

$23.99

124

Front Support

708301633

$28.99

125

Push Nut

732610072

$2.19

127

Black Lateral Support

708300877

$184.99

128

Black Welded Lateral Support

708300879

$49.99

131

Domed Nut M6

232361493

$2.11

132

Panel Nut M5 X 0.8

250000958

$4.23

133

Hex. Flange Screw M6 X 20

207662054

$1.01

130

Was 293250240 Neoprene Seal

219704451

$60.49

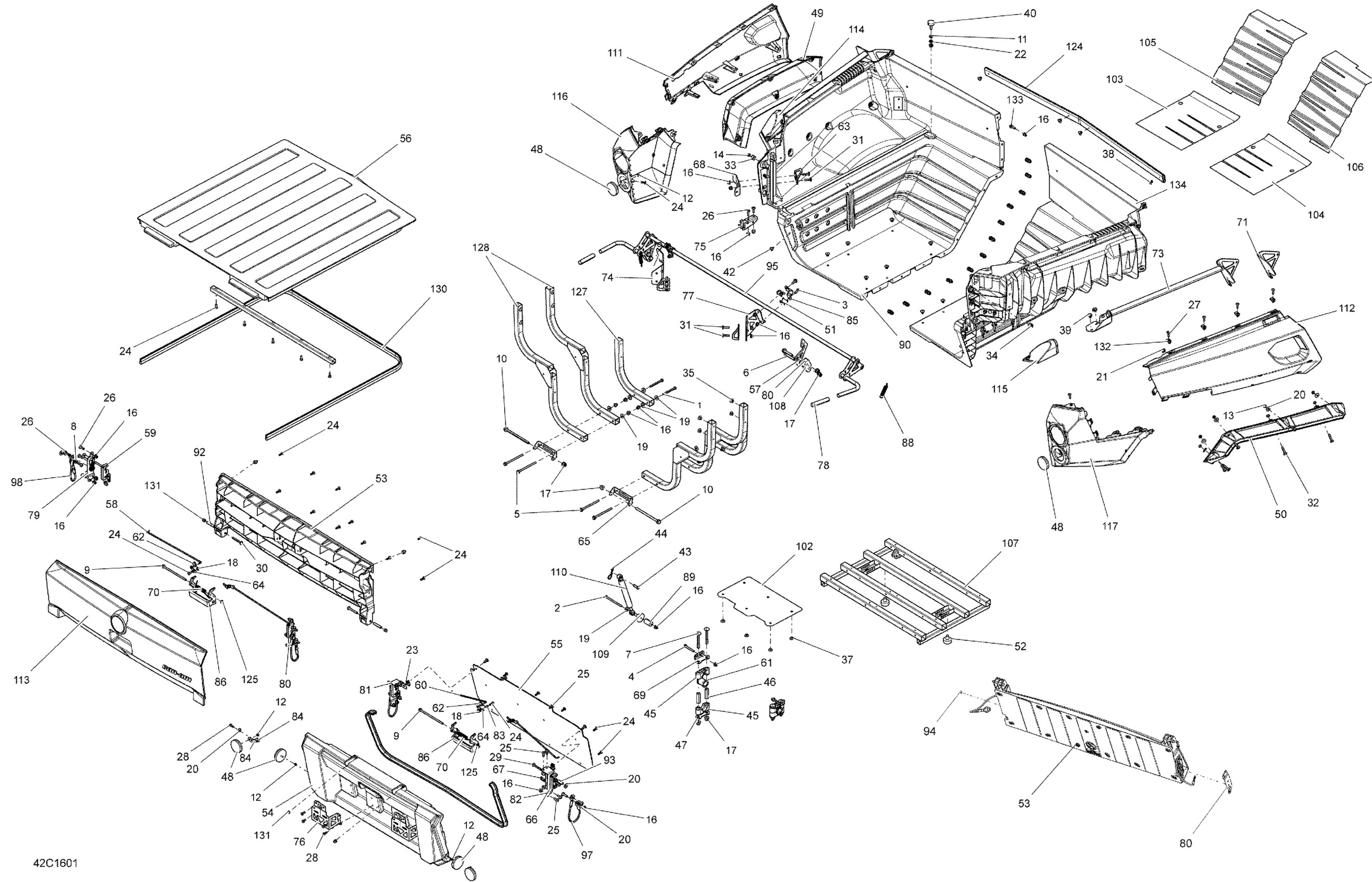

Can-Am Commander - Commander MAX, 2016 09- Rear Cargo Box Diagram

Hex. Screw M6 X 65

Hex. Screw M6 X 90

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 50

Hex. Flange Screw M6 X 95

Hex. Flange Screw M8 X 45

Carriage Bolt M8 X 70

Flat Washer

Hex. Flange Screw M6 X 130

Hex. Flange Screw M8 X 130

Hex. Jam Nut M8

Elastic Stop Nut M5

Elastic Stop Nut M6

Hex. Elastic Stop Nut M6

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Elastic Nut M8

Flat Washer 6 mm

Flat Washer 6 mm

Stainless Steel Flat Washer

Flat Washer 8 mm, Nylon

Lock Washer 8 mm

Panel Nut M6 X 1.0

Torx Screw K50 X 16

Torx Truss Screw M6 X 16

Torx Screw M6 X 20

Torx Screw M5 X 20

Torx Screw M5 X 14

Torx Screw M6 X 45

Torx Truss Screw M6 X 50

Torx Screw M6 X 25

Stainless, Torx Screw M6 X 30

M6 Nut Housing Ass'y | Includes 290 to 290b

M6 Nut Housing Ass'y | Includes 7r to 7r2

Pop Rivet 3/16"

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16 | XT

Frame Rubber Bumper

Rubber Bumper

Pin

Hair Pin

Housing Half

Housing Bushing

Stopper Plate

Red Reflector

LH Upper Rear Mudguards | LTD

RH Upper Rear Mudguards | LTD

Half Ring

Rubber Stopper

Inside Top Pannel

Outside Bottom Pannel Ass'y

INSIDE BOTTOM PANNEL - Call your local BRP dealership

Separator Pannel Ass'y | Includes 16 to 17

Box Retainer

Top Rod

LH Latch

Lower Bottom Rod

Pivot Bushing

LH Tie Rod Clip

Retaining Plate

Activator

Bracket Pivot

RH Latch

RH Tie Rod Clip

Retaining Plate Support

Adjustable Stopper Plate

Spring

LH Painted Rail Cap | Except XT

RH Painted Rail Cap | Except XT

LH Welded Rail | XT

RH Welded Rail | XT

LH Latch Lever Support

Upper Pivot Support

Plate Support | Europe

RH Latch Lever Support

Cap Latch Lever

LH Upper Support

RH Upper Support

LH Lower Support
