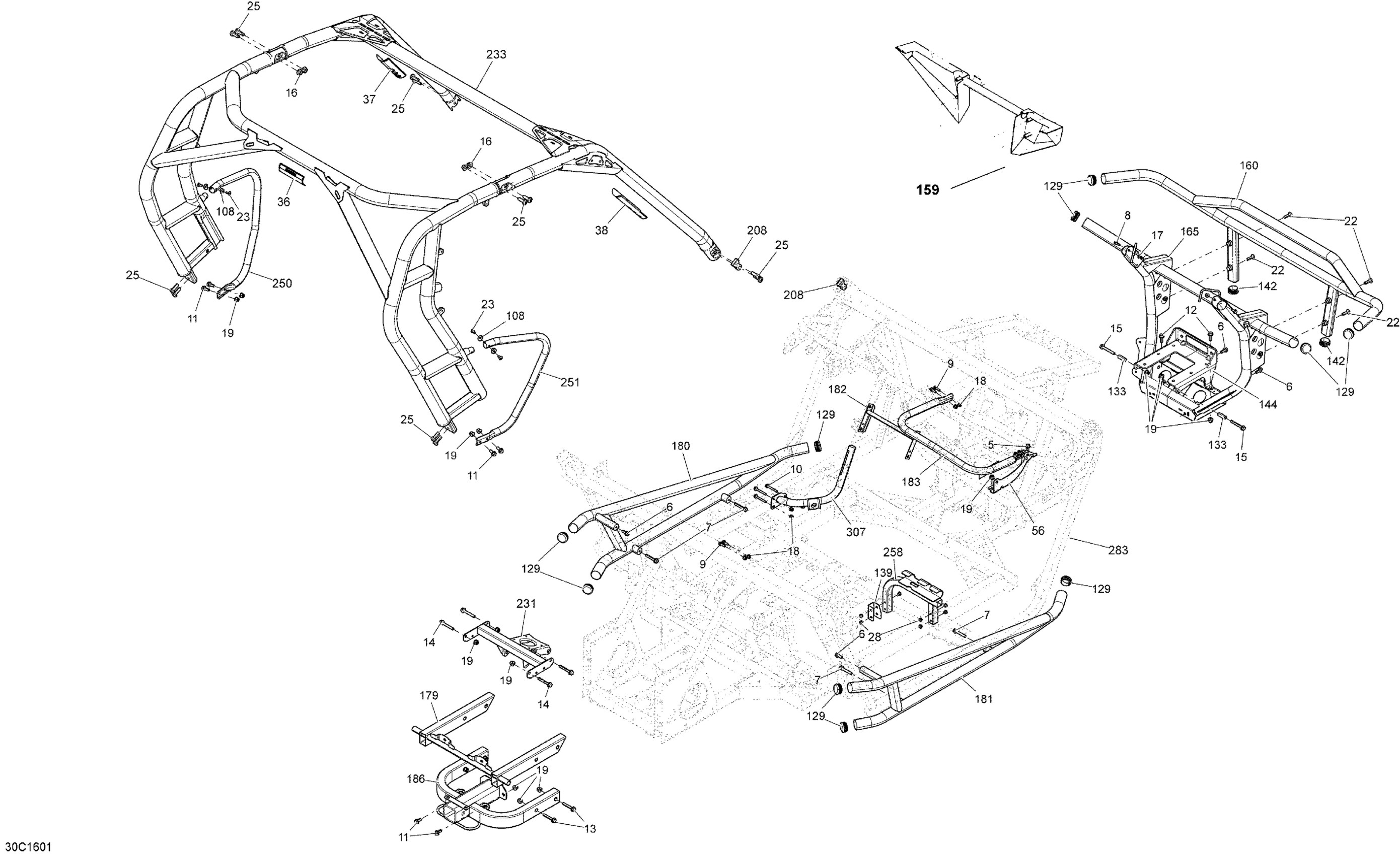

Can-Am Commander - Commander MAX, 2016 09- Frame Diagram

#

Description
Price

5

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

6

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

7

Hex. Flange Screw M8 X 50 | X

207585044

$3.91

8

Hex. Flange Screw M6 X 16

207661644

$0.74

9

Hex. Flange Screw M6 X 20

207662046

$2.11

10

Hex. Flange Screw M6 X 50

207665044

$4.12

11

Hex. Flange Screw M8 X 20

207682044

$1.15

12

Hex. Flange Screw M6 X 20

207662044

$2.00

13

Hex. Flange Screw M8 X 50

207685044

$1.69

14

Hex. Flange Screw M8 X 55

207685544

$5.39

15

Hex. Flange Screw M8 x 60

207686044

$3.07

16

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Elastic Flange Nut M6 X 1.0

233261416

$2.11

19

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Hex Torx Truss M8 X30

250000745

$3.17

23

Torx Truss M6X14

250000789

$5.39

25

Screw Pan M10 X 30

250000848

$1.90

28

Hemlock Rivet, 6.5 mm

293150096

$3.27

36

Warning Label

704903492

Unavailable

37

Warning Label

704903679

Unavailable

38

Warning Label

704903680

Unavailable

56

Front Differential Support

705201721

$19.49

108

Offset Washer

705202223

$4.14

129

Cap

705202455

$5.69

133

Bushing

705202499

$6.67

139

Seat Support

705202602

$3.89

142

Tube Cap | Europe

705202631

$20.99

144

Winch Plate | XT

715000704

$122.49

159

Front Bumper | Package Hunter

705010664

$510.99

160

Black Front Bumper | XT, X

715000958

$308.49

161

Spacer | Package Hunter

705004190

Unavailable

165

Black Front Bumper

705202995

$404.49

179

BOX HOLDER - Call your local BRP dealership

705203325

Unavailable

180

BLACK LH LOWER PROTECTOR - Call your local BRP dealership | X

705203327

Unavailable

181

BLACK RH LOWER PROTECTOR - Call your local BRP dealership | X

705203329

Unavailable

182

Reinforcement Panel

705203330

$154.99

183

Black Handle

705203332

$132.49

186

TRAILER HITCH ASS'Y - Call your local BRP dealership | Includes 47 to 50

715001251

Unavailable

208

Binding Block

705203415

$18.49

231

Differential Holder

705203538

$38.99

233

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

233

Gulfstream Blue, Cage Ass'y | Blue Cage Model

715004818

$1,039.99

250

TUBE LH B-160 PAINTED - Call your local BRP dealership | Left

705203637

Unavailable

250

TUBE LH B-352 PAINTED - Call your local BRP dealership | Blue Cage Model

705204816

Unavailable

251

TUBE RH B-160 PAINTED - Call your local BRP dealership | Right

705203640

$43.99

251

Blue RH Side Protector Tube | Blue Cage Model

705204817

$46.49

258

Not Available As Spare Part - Friction Washer

Unavailable

283

Black, Frame

715004811

$2,319.99

307

Black Console Handle

705204399

$137.49
