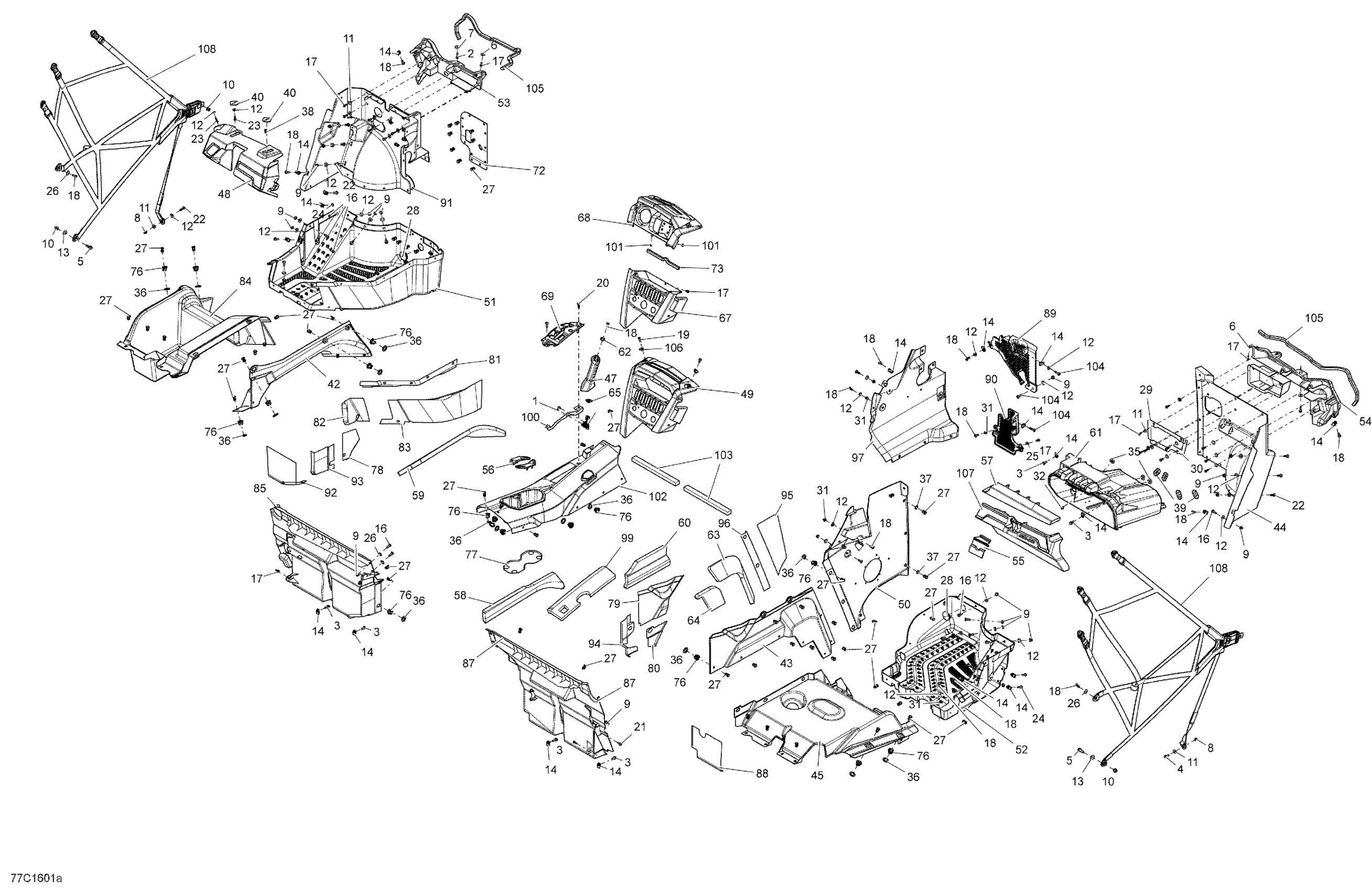

Can-Am Commander - Commander MAX, 2016 09- Cab Interior Diagram

#

Description
Price

1

Socket Head Screw M5 X 10

205951046

$2.43

2

Hex. Screw M6 X 25

207162544

$1.15

3

Hex. Flange Screw M6 X 20

207662034

$2.11

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Screw M8 X 25

207682534

$2.11

6

Flat Washer

224060201

$1.26

7

Flat Washer

224061201

$1.37

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Hex. Flange Elastic Nut M6

233261494

$1.58

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Flat Washer 6 mm

234062410

$0.77

12

Stainless Steel Flat Washer

234062670

$2.11

13

Flat Washer 8 mm

234082410

$1.47

14

Panel Nut M6 X 1.0

250100198

$2.11

16

Torx Screw M6 X 20

250000712

$2.11

17

Torx Screw K50 X 16

250000720

$1.69

18

Torx Screw M6 X 20

250000722

$1.68

19

Torx Screw M5 X 20

250000724

$1.69

20

Torx Screw M6 X 25 | XT Models

250000728

$4.44

21

Torx Screw M6 X 16

250000755

$0.87

22

Torx Screw M6 X 25

250000758

$2.11

23

Torx Screw Truss Head K50X20 T20

250000760

$2.11

24

Torx Truss Screw M6 X 25

250000807

$2.11

25

Washer M5

250200025

$0.74

26

Flat Washer

250200040

$1.90

27

Tuflok Plastic Rivet

293150230

$1.47

28

Rubber Cover

293250242

$6.99

29

Upper Seal

293250252

$2.59

30

Bottom Seal

293250253

$2.79

32

Rubber Bumper

293830005

$8.09

33

Rivet

390401400

$0.53

34

WASHER - Call your local BRP dealership

391301000

$0.70

35

CAP - Call your local BRP dealership

414859400

Unavailable

36

Washer

503189273

$3.28

37

Washer

506151252

$3.17

38

Edge Clip

517302785

$0.88

39

Oblong Grommet

705003668

$5.79

40

Support Plate

705003841

$0.99

41

Padlock with Key

707000666

$25.99

42

LH Side Console

707900001

$44.99

43

RH Side Console

707900002

$36.99

44

RH Front Floor

707900004

$83.99

45

RH Under Seat Plate

707900006

$114.99

47

Passenger Handle

707900011

$13.75

48

Dashboard Ass'y

715001250

$79.99

49

Not Available As Spare Part - Friction Washer

Unavailable

49

Central Dashboard Ass'y

715002178

$38.99

49

Central Dashboard Ass'y

715002187

$38.99

50

RH Fixe Side Console

707900021

$76.99

50

RH Fixe Side Console | LTD Model

707900098

$88.99

51

LH Lower Floor

707900022

$269.99

52

RH Lower Floor

707900023

$194.99

53

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$12.99

54

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

55

Latch

707900031

$8.49

56

Cup Retainer

707900036

$6.89

57

Trim Glove Box

707900062

$18.49

58

Left Upper Lateral Console Foam

707900620

$16.49

59

LH Lower Lateral Console Foam

707900621

$23.99

60

RH Lateral Console Foam

707900622

$16.49

61

Storage Bin

707900009

$114.99

61

Storage Bin | XT

707900046

$104.99

62

Connector Tube

707900048

$6.19

63

RH Lateral Console Foam

707900623

$16.49

64

RH Lateral Console Foam

707900624

$16.49

65

CAP - Call your local BRP dealership | Europe

707900060

Unavailable

66

Trim Glove Box

707900062

$18.49

67

DASHBOARD CTRL. - Call your local BRP dealership | LTD Model

707900065

Unavailable

68

Gauge Support | LTD Model

707900066

$38.99

69

Lever Indicator

707900070

$15.49

69

Lever Indicator | Europe

707900071

$18.49

72

Deflector

707900108

$17.49

72

DEFLECTOR - Call your local BRP dealership

707900125

Unavailable

73

Was 271000110 Protection Trim

219704353

$15.99

76

Insert

707900133

$2.89

77

Heat Sheet

707900145

$11.99

78

Heat Sheet

707900146

$11.99

79

Heat Sheet

707900147

$8.89

80

Heat Sheet

707900148

$7.49

81

Heat Sheet

707900149

$8.89

82

Heat Sheet

707900150

$1.09

83

Heat Sheet

707900151

$10.99

84

LH Under Seat Plate Kit

715002356

$149.99

85

LH Rear Deflector

707900164

$97.99

85

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership | LTD Model

707900165

Unavailable

87

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

88

Heat Shield

707900167

$9.39

89

Grille

707900178

$10.99

90

Grille

707900180

$10.99

91

LH Front Floor

707900181

$83.99

92

Heat Shield

707900182

$8.89

93

Heat Shield

707900183

$5.29

94

Heat Shield

707900184

$5.29

95

Heat Sheet

707900190

$9.39

96

Heat Sheet

707900191

$1.09

97

Front Side Dash Panel

707900193

$69.99

99

Front Central Console Foam

707900619

$18.99

100

LOCK SUPPORT - Call your local BRP dealership | Europe

707900303

Unavailable

101

Push Nut

732610072

$2.19

102

CONSOLE KIT - Call your local BRP dealership | Except Europe Model

715003326

Unavailable

102

CONSOLE KIT - Call your local BRP dealership | Europe Model

715003328

Unavailable

103

SEAL TRAY - Call your local BRP dealership

293250318

Unavailable

104

Torx Truss Screw M6 X 30

250000843

$2.11

105

Was 293200017 Neoprene Seal

219704365

$149.99

106

Panel Nut M5 X 0.8

250000958

$4.23

107

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

$49.99

108

Front LH Safety Net

707900237

$119.99

108

Front RH Safety Net

707900238

$119.99

109

Buckle

707900035

$53.99
