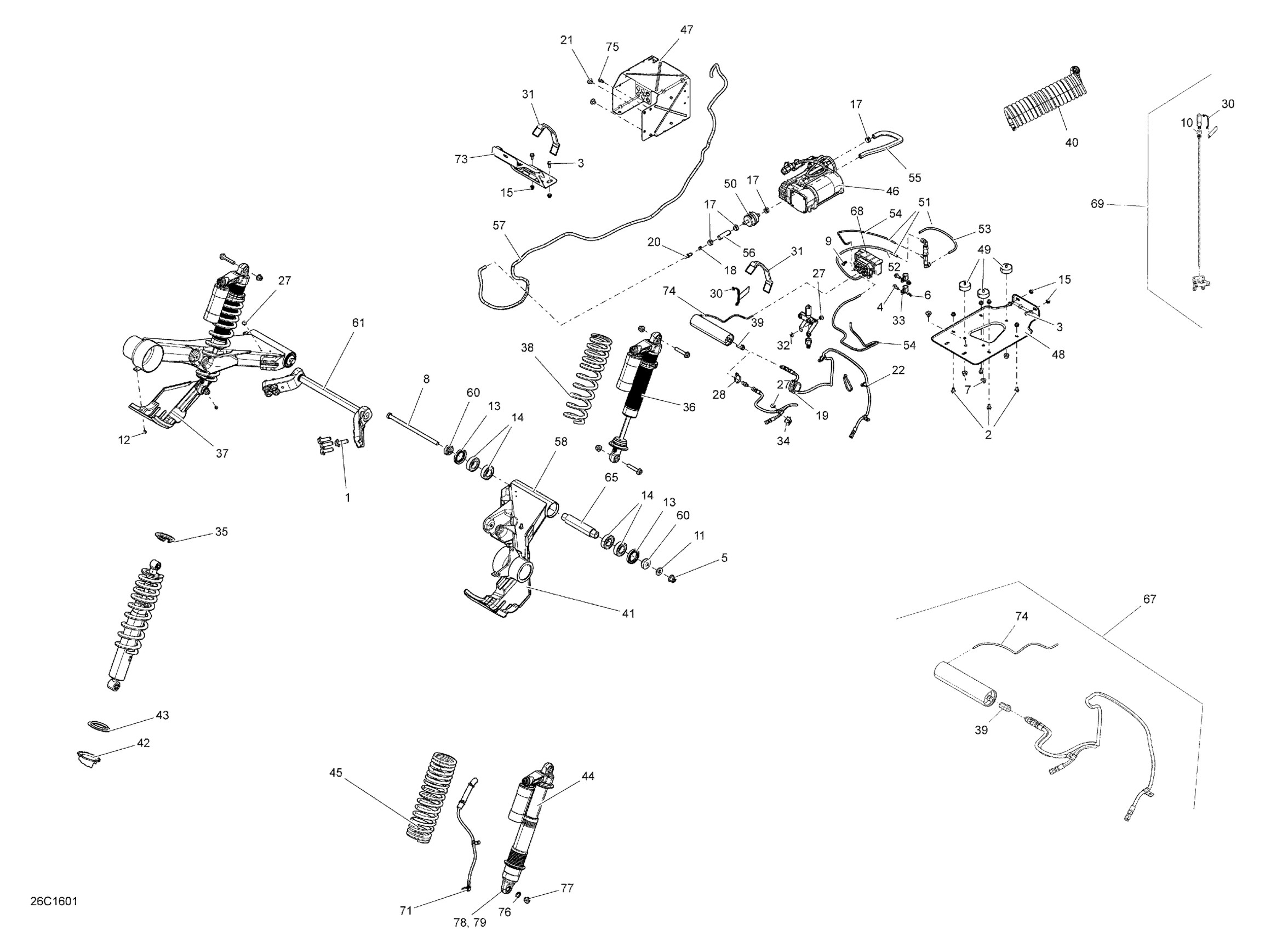

Can-Am Commander - Commander MAX, 2016 08- Rear Suspension Diagram

#

Description
Price

1

Hex. Flange Screw M12 X 35, Scotch Grip

207523544

$3.91

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

4

Hex. Flange Screw M6 X 16

207661644

$0.74

5

Elastic Flange Nut M12

233221416

$2.85

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Cap Screw M12 X 241

250001031

$3.81

9

Oval Head Torx Screw K60 X 16

250000546

$2.11

10

Hex. Nut With Nylon 1/2" X 20

250100124

$7.51

11

Flat Washer M12

250200120

$2.61

12

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

13

Seal

293200094

$10.33

14

Ball Bearing

293350115

$12.11

15

Threaded Insert M6 X 1.0

250100242

Unavailable

17

Crimp Clamp

293650053

$3.09

18

Clamp, Oetiker

293650195

$1.09

19

Hose Retainer

293650218

$9.39

20

Straight Fitting

293710035

$8.89

21

Mount Dart

293730040

$1.04

22

Tie Wrap 142 mm

293750002

$1.25

27

Pop Rivet 3/16"

390406500

$0.88

28

Tie-Rap 180 mm

414115200

$0.11

30

O-Ring

414811400

$7.06

31

Battery Strap

515176044

$18.49

32

Washer

517124300

$0.19

33

Open Clamp

705600040

$13.24

34

Bracket

705601337

$2.69

35

Spring Stopper

706000567

$15.99

36

Rear Shock | STD, XT

706000615

$195.99

36

Rear Shock

706001509

$206.49

36

REAR SHOCK - Call your local BRP dealership

706002004

Unavailable

36

REAR SHOCK - Call your local BRP dealership | Package XTP

706002264

Unavailable

37

LH Joint Protector

706000630

$8.85

38

Yellow Rear Spring | STD, XT Yellow Model

706000667

$104.99

38

YELLOW REAR SPRING - Call your local BRP dealership | Model-DPS Yellow, XT Yellow

706001997

Unavailable

38

RED REAR SPRING - Call your local BRP dealership | XT Red Model

706002466

Unavailable

38

CAN-AM RED REAR SPRING - Call your local BRP dealership | Package-XT Brush Aluminium

706001809

Unavailable

38

Black Rear Spring | XT Camo Model

706001045

$100.49

38

BLACK REAR SPRING - Call your local BRP dealership | Model-XT Magnesium, XT Camo

706001998

Unavailable

38

Black Rear Spring | Commander Package XT Black Model

706002143

$97.49

38

BLACK REAR SPRING - Call your local BRP dealership | Com-Max Package XT Black Model

706002145

Unavailable

38

BLACK REAR SPRING - Call your local BRP dealership

706002005

Unavailable

38

PAINT REAR SPRING - Call your local BRP dealership | Package-XTP

706001807

Unavailable

39

T-FITTING - Call your local BRP dealership

706000806

Unavailable

40

Auxiliary Hose

706000808

$104.99

41

RH Joint Protector

706000814

$8.85

42

Adjustment Ring

706000910

$16.49

43

Protector Ring | STD, XT

706000911

$13.99

44

Rear Shock Ass'y

706001039

$849.99

44

REAR SHOCK - Call your local BRP dealership

706002004

Unavailable

44

REAR SHOCK - Call your local BRP dealership | Package XTP

706002264

Unavailable

45

BLACK REAR SPRING - Call your local BRP dealership

706001040

Unavailable

46

COMPRESSOR - Call your local BRP dealership

706001100

Unavailable

47

UPPER SUPPORT - Call your local BRP dealership

706001120

Unavailable

48

LOWER SUPPORT - Call your local BRP dealership

706001121

Unavailable

49

RUBBER MOUNT - Call your local BRP dealership

706001127

Unavailable

50

Air Filter

706001141

$33.99

51

PRESSURE DISTRIBUTOR ASS'Y - Call your local BRP dealership

706001144

Unavailable

52

HOSE, POLYURETHANE 6 MM - Call your local BRP dealership

706001145

$11.49

53

HOSE, POLYURETHANE 6 MM - Call your local BRP dealership

706001145

$11.49

54

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

55

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

56

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

57

Polyurethane Hose 10000Mm Long

219704410

$56.99

58

RH Swing Arm

703500965

$190.99

58

LH Swing Arm

703500964

$190.99

58

RH Swing Arm

706001513

$190.99

58

LH Swing Arm

706001514

$190.99

60

Spacer

706001350

$10.49

61

Sway Bar Ass'y | STD, XT

706001500

$185.49

61

SWAY BAR ASS'Y - Call your local BRP dealership | X Model

706001503

Unavailable

61

Sway Bar

706001718

$190.99

65

Bushing

706001529

$34.99

67

Rear Shock Distributor

706001751

$299.99

68

Solenoid Valve

706001104

$963.99

69

Support Bracket | Commander Package LTD

706002294

Unavailable

71

Rear Hose Ass'y

706002299

$83.99

73

TANK BRACKET - Call your local BRP dealership

706201524

Unavailable

74

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

75

Hex. Flange Screw M6 X 12

210261250

$1.90

76

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$11.99

76

O-Ring Bushing

715900209

$14.75

77

Interior Bushing | OUT XTP

715500361

$33.99

77

Interior Bushing | XTP

715900210

$15.82

78

Spherical Bearing

715900251

$82.99

79

Retaining Ring

715900252

$12.49
