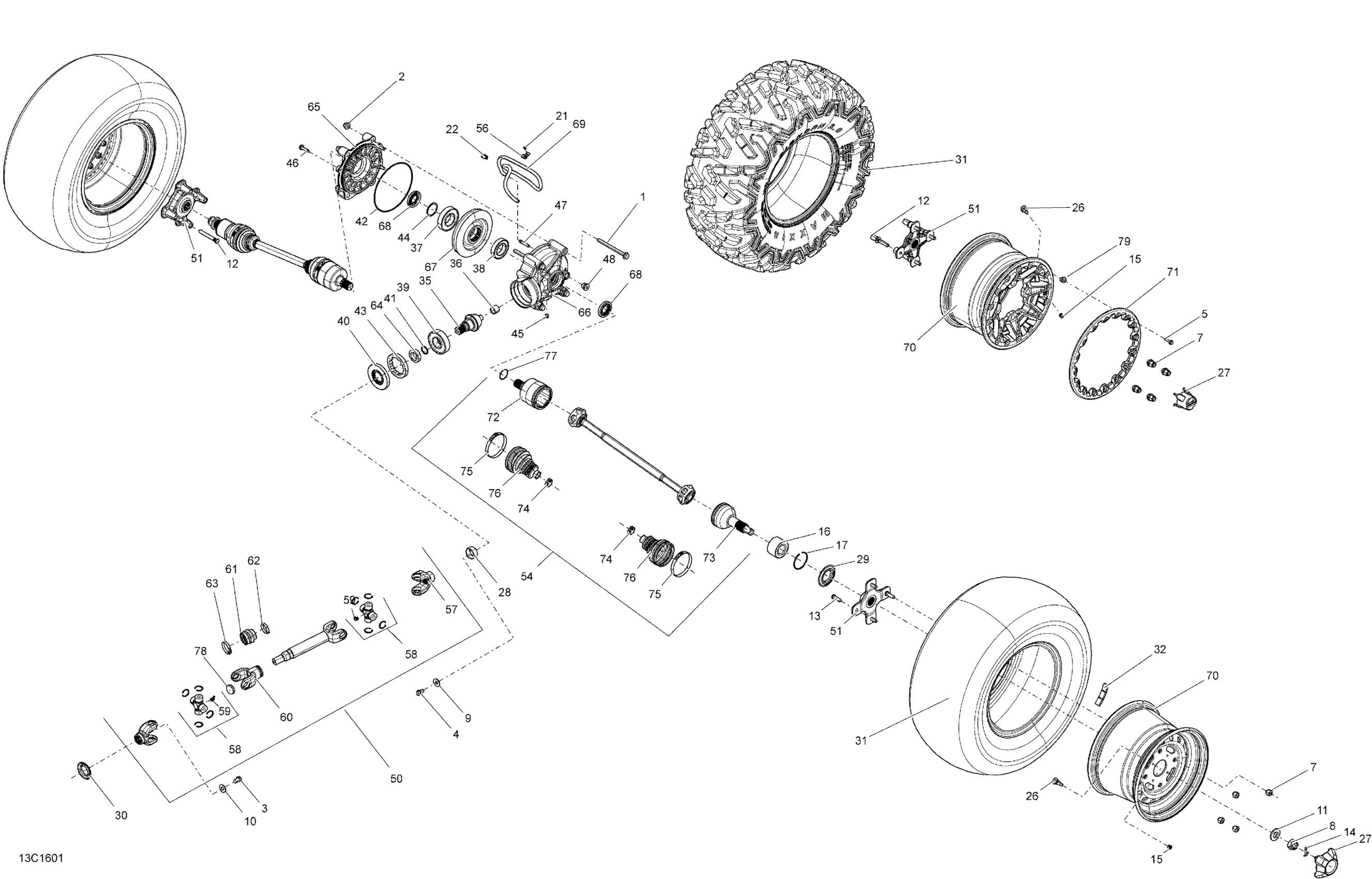

Can-Am Commander - Commander MAX, 2016 08- Drive System, Rear Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 125

230602546

$7.41

2

Hex. Flange Elastic Nut M10

233201436

$2.11

3

Hex Flange Screw M12 X 16

250001039

$2.11

4

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

5

Hex. Flange Screw M6 X 25

250000787

$2.22

7

Steel Wheel Nut

250100042

$3.98

7

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

7

Black, Wheel Nut M10 X 1.25

250100184

$4.51

8

Castle Nut M20

250100193

$8.05

9

Flat Washer M10 | 4X4

250200014

$1.49

10

Flat Washer M12

250200102

$2.11

11

Conical Spring Washer M20

250200170

$14.74

13

Wheel Stud

250300060

$11.49

13

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

13

Wheel Stud

705401964

$11.06

14

Cotter Pin

250400071

$2.11

15

Valve Cap

293000110

$1.59

16

Ball Bearing

293350150

$52.99

17

Circlip

293370019

$4.68

21

Pop Rivet 3/16"

390402200

$0.35

22

Clip

414227300

$1.67

26

Rim Valve With Cap

705400193

$8.69

27

Wheel Cap | STD

705400921

$5.89

27

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.49

27

Wheel Cap

705400928

$10.49

28

Wear Ring | 4X4

705400036

$26.49

29

Wear Sleeve | 4X4

705501121

$7.90

30

Protector

705501123

$7.55

31

Rear Tire | STD

705501129

$149.99

31

27X11R14 Rear Tire

705502665

$259.49

31

Rear Tire 27X11X12 | X

705502938

$254.49

31

Rear Tire | XT Europe

705501295

$259.49

32

1/2 Oz Weight

219704465

$3.89

35

10 Tooth Gear

705501871

$349.99

36

Needle Bearing

705501874

$73.99

37

Ball Bearing

705501875

$78.49

38

Ball Bearing

705501876

$78.49

39

Ball Bearing

705501877

$78.49

40

Oil Seal

705501878

$36.99

41

Oil Seal

705501880

$16.38

42

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$9.27

43

Nut

705501882

$36.99

44

Shim Kit

705501883

$46.99

45

Drain Plug | After May 30, 2014

705501885

$14.22

46

Bolt

705501886

$7.69

47

Vent Valve

705501887

$15.36

48

Fill Level Plug

705501889

$20.49

50

Shaft Ass'y Kit

703500985

$116.49

51

Wheel Hub | LH Except MAX Model - Except Package XTP

705502486

$116.99

51

Wheel Hub | RH Except MAX Model - Except Package XTP

705502470

$116.99

51

Wheel Hub ( 29 Splines )

705502223

$126.99

54

Rear - Premium CV Axle

705502411

$243.99

56

Clamp

293650256

$5.49

57

Joint

715900271

$24.99

58

Universal Joint

715900326

$68.99

59

Grease Fitting

715900184

$5.24

60

Spline Yoke

715900106

$41.49

61

Rubber Boot

715900118

$14.30

62

Oetiker Gear Clamp 36.1MM

509000045

$8.29

63

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

64

Final Drive Unit | Includes 30 to 30u

705502517

$1,844.49

65

Rear Cover

705502332

$179.99

66

Pinion Cover

705502519

$179.99

67

36 Tooth Gear

705502109

$499.99

68

Oil Seal

705502110

$20.49

69

Was 293830177 Hose

219704388

$11.63

70

Rim_14 Inch B-331 X 8 | Package-DPS

705502634

$206.49

70

Black, Rear Rim

705501623

$174.99

70

Rear Rim

705502635

$191.49

70

Rear Rim | Package-XT Int.Brush Aluminum

705502637

$206.49

70

Black, Rim | XXC

705502244

$265.99

71

Disc Plate | Package XTP

705401815

$85.99

72

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

73

CV Joint

715900391

$259.49

74

Oetiker Clamp, 27.3 mm

715900242

$10.33

75

Oetiker Clamp, 82.1 mm

715900241

$10.33

76

Boot Kit

705501864

$42.49

77

Circlip

705501781

$6.50

78

COVER - Call your local BRP dealership

715900187

Unavailable

79

Insert | XXC

293450317

$7.29
