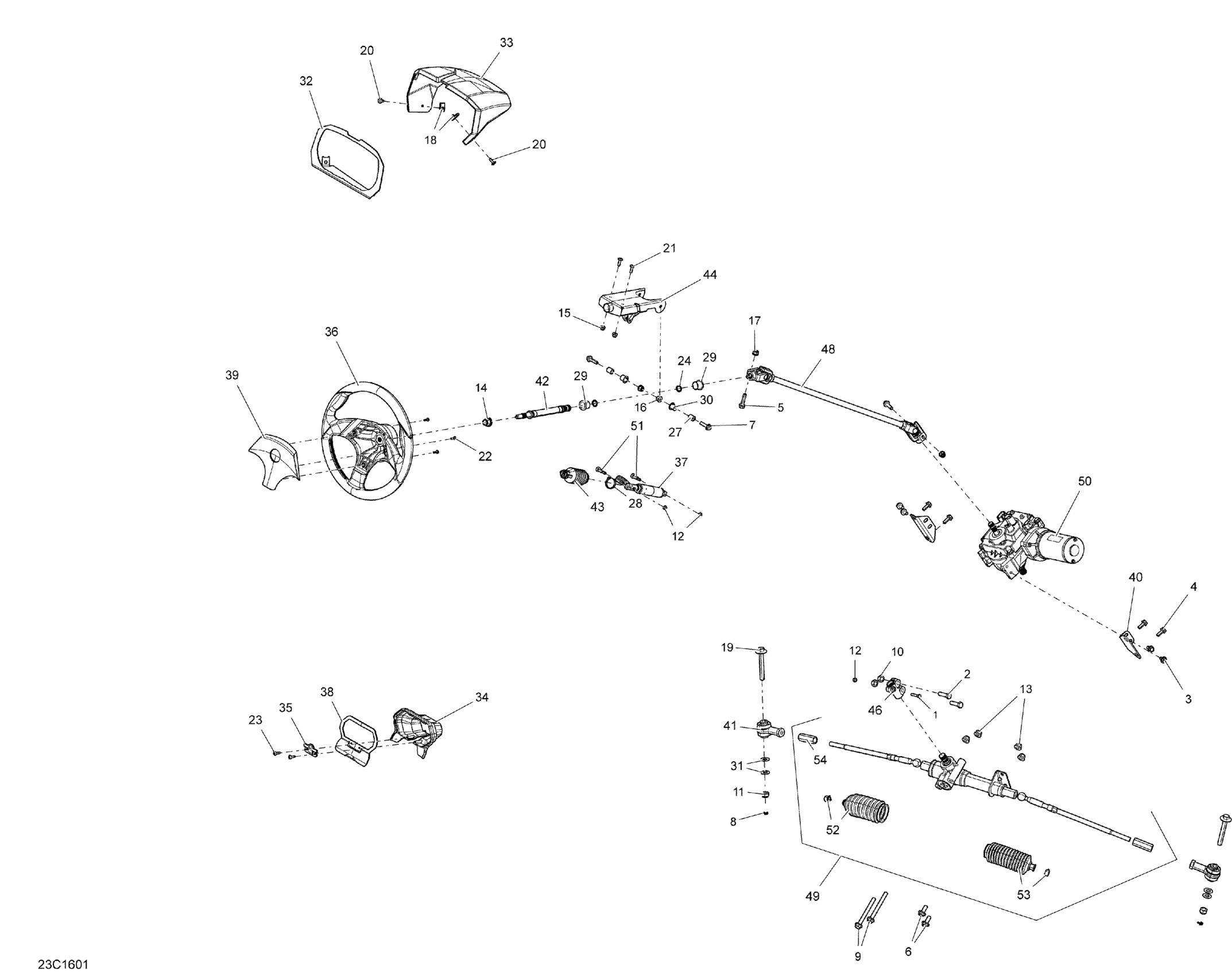

Can-Am Commander - Commander MAX, 2016 07- Steering Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063044

$1.26

2

Hex. Screw M10 X 35

207103586

$1.15

3

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

4

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

5

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

6

Hex. Flange Screw M10 X 25

207602546

$2.11

7

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

8

Cotter Pin

211400017

$0.33

9

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

10

Elastic Stop Nut M10

232500416

$1.90

11

Elastic Stop Nut M12

232521416

$1.69

12

Elastic Stop Nut M6

232561434

$1.99

13

Hex. Flange Elastic Nut M10

233201436

$2.11

14

Hex. Flange Elastic Nut M12

233221414

$7.69

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Hex. Elastic Flange Nut M8

233281416

$1.48

18

Panel Nut M6 X 1.0

250100198

$2.11

19

Hexagonal Screw M12 X 88

250000657

$6.77

20

Torx Truss Screw M6 X 16

250000721

$1.69

21

Torx Screw M6 X 20

250000722

$1.68

22

Phillips Screw K40 X 16

250000723

$0.98

23

Torx Screw Truss Head K50X20 T20

250000760

$2.11

24

O-Ring

293300144

$3.82

27

Bushing

293900106

$4.55

28

Tie-Rap 180 mm

414115200

$0.11

29

Steering Bushing

709402725

$3.28

30

Bushing

705600799

$3.72

31

Hardened Washer

706200281

$2.85

32

Cluster Support | X, XT

707900013

$16.49

33

Upper Cluster Cover | X, XT

707900124

$16.49

34

Speedometer Cover

709400514

$16.99

35

Latch Indicator Cover

709400573

$11.99

36

Steering Wheel | STD

709400650

$137.49

36

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

37

Adjustment Cylinder

709402506

$72.99

38

Cluster Support | STD

709400760

$21.99

39

Steering Center | STD

709400780

$13.49

40

RH DPS SUPPORT - Call your local BRP dealership

709401128

Unavailable

40

LH DPS Support | Package-DPS, XT, XTP

709401485

$11.99

41

Ball Joint

709401134

$52.99

42

Steering Shaft

709401167

$48.99

43

Boot Tube Side

709401232

$18.99

44

Painted Steering Wheel Support

709401391

$85.99

46

Machined Coupling | Package-DPS, XT, XTP

709401494

$33.99

48

Steering Shaft Ass'y | Package-STD

709401498

$199.99

48

STEERING SHAFT ASS'Y - Call your local BRP dealership | Package-DPS, XT, XTP

709401499

Unavailable

49

Rack And Pinion Steering

709402387

$487.49

50

Power Steering Ass'y | Package-DPS, XT, XTP

709401921

$999.49

51

Socket Head Screw M8 X 16

250000669

$3.17

52

Boot Kit, Pinion Side

715900235

$54.99

53

Boot Kit, Tube Side

715900236

$54.99

54

Nut Tie Rod End

715900237

$14.30
