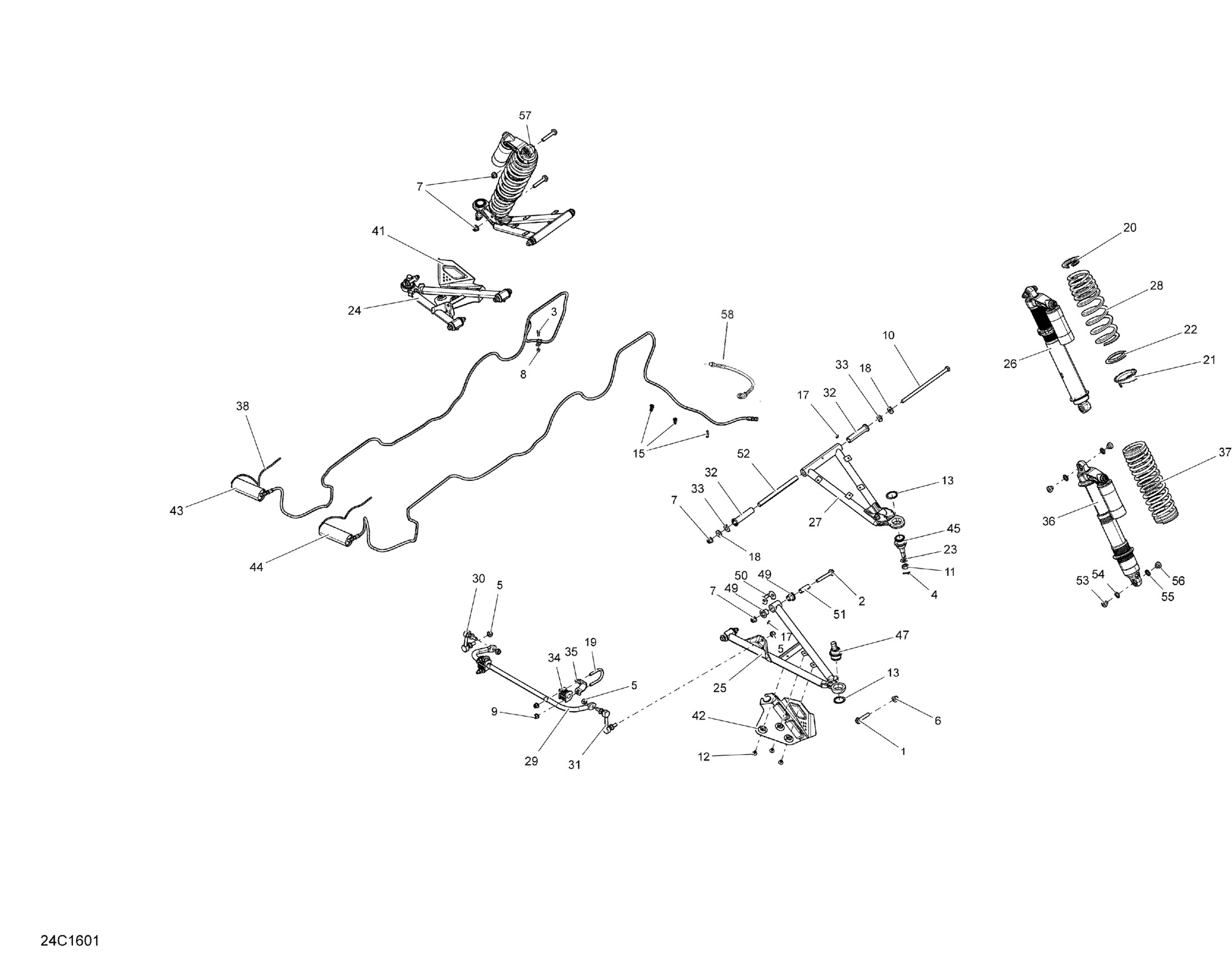

Can-Am Commander - Commander MAX, 2016 07- Front Suspension Diagram

Hex. Flange Screw M10 X 50

207605044

$5.29

Hex. Flange Screw M10 X 70

207607046

$2.96

Hex. Forming Screw M5 X 16

210251650

$1.15

Cotter Pin

211400017

$0.33

Elastic Flange Nut M10

232501416

$1.48

Hex. Flange Elastic Nut M10

233201414

$1.58

Hex. Flange Elastic Nut M10

233201436

$2.11

Elastic Flange Nut M5

233251494

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Cap Screw M10 X 225

250001032

$12.64

Nut M12

250100099

$2.09

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Circlip

293370035

$2.64

Tie Wrap 142 mm

293750002

$1.25

Grease Fitting

408200700

$3.49

Washer

503190439

$5.93

U-clamp | X

506060600

$17.80

Spring Stopper

706000567

$15.99

Adjustment Ring

706000910

$16.49

Protector Ring | STD, XT

706000911

$13.99

Hardened Washer

706200281

$2.85

LH Lower Suspension Arm

706200742

$190.99

RH Lower Suspension Arm

706200744

$190.99

Front Shock | STD

706200780

$206.49

Front Shock | XT Yellow Model

706200782

$195.99

Front Shock

706201364

$869.99

Front Shock

706201758

$206.49

FRONT SHOCK - Call your local BRP dealership | Package-LTD

706202192

Unavailable

Suspension Upper Arm

706200796

$190.99

YELLOW FRONT SPRING - Call your local BRP dealership | XT Yellow Model

706200860

Unavailable

YELLOW FRONT SPRING - Call your local BRP dealership | Model-DPS Yellow, XT Yellow

706202188

Unavailable

RED FRONT SPRING - Call your local BRP dealership | XT Red Model

706201367

Unavailable

RED CAN-AM FRONT SPRING - Call your local BRP dealership | Package-XT Brushed Aluminium

706202039

Unavailable

RED FRONT SPRING - Call your local BRP dealership | STD Model

706201631

Unavailable

BLACK FRONT SPRING - Call your local BRP dealership | XT Camo Model

706201369

Unavailable

BLACK FRONT SPRING - Call your local BRP dealership | Model-XT Magnesium, XT Camo

706202189

Unavailable

BLUE FRONT SPRING - Call your local BRP dealership | Commander Package XT Black

706202332

Unavailable

BLUE FRONT SPRING - Call your local BRP dealership | Com-Max Model Package XT Black

706202331

Unavailable

Sway Bar Ass'y | X

706202560

$99.49

LH Sway Bar Link | X

706202536

$67.99

RH Sway Bar Link | X

706202537

$67.99

Cushion

706201062

$2.30

Wear Plate

706201063

$0.95

Stabilizer Bushing | X

706201086

$8.08

Clamp | X

706201087

$12.16

Front Shock | Commander Package XTP

706202427

$789.99

Front Shock

706201364

$869.99

FRONT SHOCK - Call your local BRP dealership | Package-LTD

706202192

Unavailable

ORANGE FRONT SPRING - Call your local BRP dealership | Package-XTP

706202037

Unavailable

BLACK SPRING - Call your local BRP dealership

706201473

Unavailable

BLACK FRONT SPRING - Call your local BRP dealership | Package-LTD

706202041

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

LH Protector

706201669

$17.54

RH Protector

706201670

$17.54

LH Hose Ass'y

706201997

$174.99

RH Hose Ass'y

706201999

$174.99

Ball Joint

706202044

$35.99

Ball Joint

706202045

$35.99

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Bushing

706202445

$14.30

Interior Bushing | XTP

715900210

$15.82

Interior Bushing | OUT XTP

715500361

$33.99

O-Ring Bushing

715900209

$14.75

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$11.99

Spherical Bearing

715900251

$82.99

Retaining Ring

715900252

$12.49

Hex. Flange Screw M10 X 55

207605544

$3.38

Front Hose Ass'y

706202444

$83.99
