Description

Price

1

RH Front Flexible Hose Ass'y | Includes 1 to 1a

705601195

$79.49

1a

Clamp

293650256

$5.49

2

Hex. Flange Screw M10 X 55

207605544

$3.38

3

Hex. Flange Screw M8 X 25

207682534

$2.11

4

Hex. Forming Screw M5 X 16

210251650

$1.15

5

Hex. Flange Screw M6 X 10

210261040

$1.48

6

Hex. Nut M8

232081414

$0.72

7

Elastic Stop Nut M6

232561434

$1.99

8

Hex. Elastic Stop Nut M8

232581414

$0.56

9

Hex. Flange Elastic Nut M10

233201414

$1.58

10

Elastic Flange Nut M5

233251494

$2.11

11

Flat Washer M8

234081430

$2.11

12

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

13

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

14

Torx Screw M5 X 14

250000742

$1.47

15

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

16

Pin | Not Shown

250400058

$8.29

17

O-Ring

293300144

$3.82

18

Clamp

293650220

$0.90

19

Cotter Pin

371800700

$1.01

20

Rear Flexible Hose Ass'y | Includes 20 to 20a

705601173

$163.99

20a

Clamp

293650256

$5.49

21

Bracket

705601337

$2.69

22

Pop Rivet 3/16"

390402200

$0.35

23

Bracket

705601337

$2.69

24

Tie-Rap 180 mm

414115200

$0.11

25

Tie-Rap 180 mm

414115200

$0.11

26

Copper Washer

705601628

$4.44

27

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

28

Master Cylinder Ass'y | Includes 11 to 13

705601505

$244.99

28a

Diaphragm Cap Kit

715500332

$29.49

29

Bracket

705601337

$2.69

34

Brake Pedal

705600724

$57.99

38

Brake Pedal Spring

705600792

$9.10

39

Inner Spacer

705600815

$11.60

40

Master Cylinder Rod

705600833

$20.49

44

LH Front Deflector

705600917

$7.90

52

Banjo Bolt

705600958

$6.35

53

Disc Brake

705600999

$67.99

57

LH Caliper Ass'y | Includes 57 to 57d

705601128

$328.49

57a

Spring And Bolt Kit

715500385

$21.99

57b

Bleeding Screw

705600080

$16.87

57c

LH Brake Pad Kit

705601149

$51.99

57d

Hanger Pin Kit

705601151

$17.99

71

RH Caliper Ass'y | Includes 71 to 71d

705601129

$338.99

71a

Spring And Bolt Kit

715500385

$21.99

71b

Bleeding Screw

705600080

$16.87

71c

RH Brake Pad Kit

705601150

$51.99

71d

Hanger Pin Kit

705601151

$17.99

86

Yoke | Not Shown

705601142

$15.36

90

RH Rear Caliper Ass'y | Includes 90 to 90d

705601174

$338.99

90a

Pin Set (2)

705600081

$20.49

90b

RH Brake Pad Kit

705601147

$51.99

90c

Bleeding Screw

705600080

$16.87

90d

Spring, Protector And Bolt Kit

715500384

$24.99

91

LH Rear Caliper Ass'y | Includes 91 to 91d

705601175

$338.99

91a

Pin Set (2)

705600081

$20.49

91b

LH Brake Pad Kit

705600398

$51.99

91c

Bleeding Screw

705600080

$16.87

91d

Spring, Protector And Bolt Kit

715500384

$24.99

92

Disc Brake

705601178

$51.99

96

LH Front Hose | Includes 96 to 96a

705601194

$79.49

96a

Clamp

293650256

$5.49

99

Brake Switch

705601250

$59.49

100

Rubber Stopper

708000759

$4.19

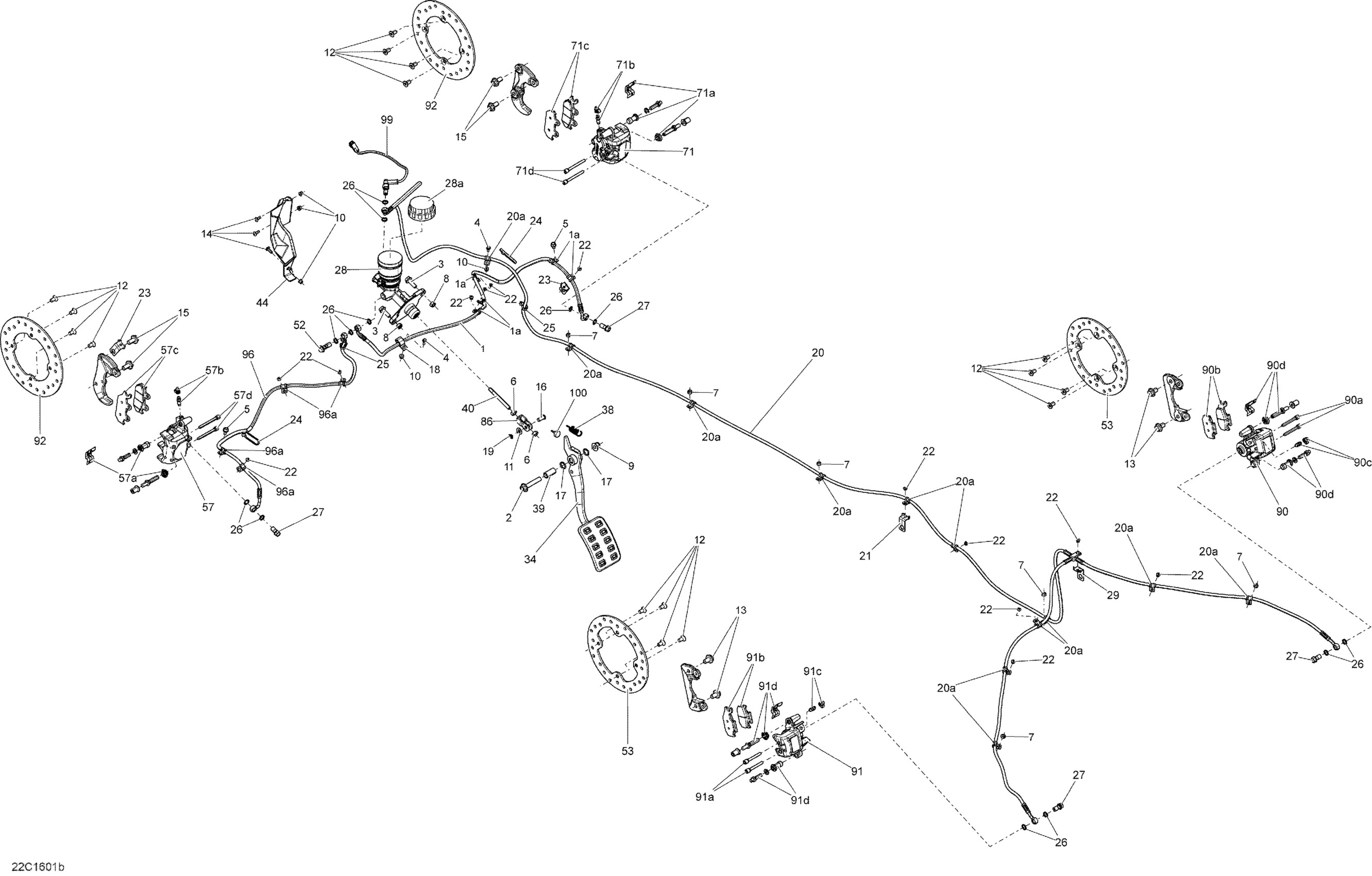

Can-Am Commander - Commander MAX, 2016 06- Brakes - MAX Diagram

RH Front Flexible Hose Ass'y | Includes 1 to 1a

Clamp

Hex. Flange Screw M10 X 55

Hex. Flange Screw M8 X 25

Hex. Forming Screw M5 X 16

Hex. Flange Screw M6 X 10

Hex. Nut M8

Elastic Stop Nut M6

Hex. Elastic Stop Nut M8

Hex. Flange Elastic Nut M10

Elastic Flange Nut M5

Flat Washer M8

Torx Screw M8 X 16, Scotch Grip

Flange Screw M10 X 16, Scotch Grip | 4X4

Torx Screw M5 X 14

Hex. Flange Screw M10 X 20, Scotch Grip

Pin | Not Shown

O-Ring

Clamp

Cotter Pin

Rear Flexible Hose Ass'y | Includes 20 to 20a

Clamp

Bracket

Pop Rivet 3/16"

Bracket

Tie-Rap 180 mm

Tie-Rap 180 mm

Copper Washer

Banjo Bolt (M10 x 1.25 thread)

Master Cylinder Ass'y | Includes 11 to 13

Diaphragm Cap Kit

Bracket

Brake Pedal

Brake Pedal Spring

Inner Spacer

Master Cylinder Rod

LH Front Deflector

Banjo Bolt

Disc Brake

LH Caliper Ass'y | Includes 57 to 57d

Spring And Bolt Kit

Bleeding Screw

LH Brake Pad Kit

Hanger Pin Kit

RH Caliper Ass'y | Includes 71 to 71d

Spring And Bolt Kit

Bleeding Screw

RH Brake Pad Kit

Hanger Pin Kit

Yoke | Not Shown

RH Rear Caliper Ass'y | Includes 90 to 90d

Pin Set (2)

RH Brake Pad Kit

Bleeding Screw

Spring, Protector And Bolt Kit

LH Rear Caliper Ass'y | Includes 91 to 91d

Pin Set (2)

LH Brake Pad Kit

Bleeding Screw

Spring, Protector And Bolt Kit

Disc Brake

LH Front Hose | Includes 96 to 96a

Clamp

Brake Switch

Rubber Stopper
