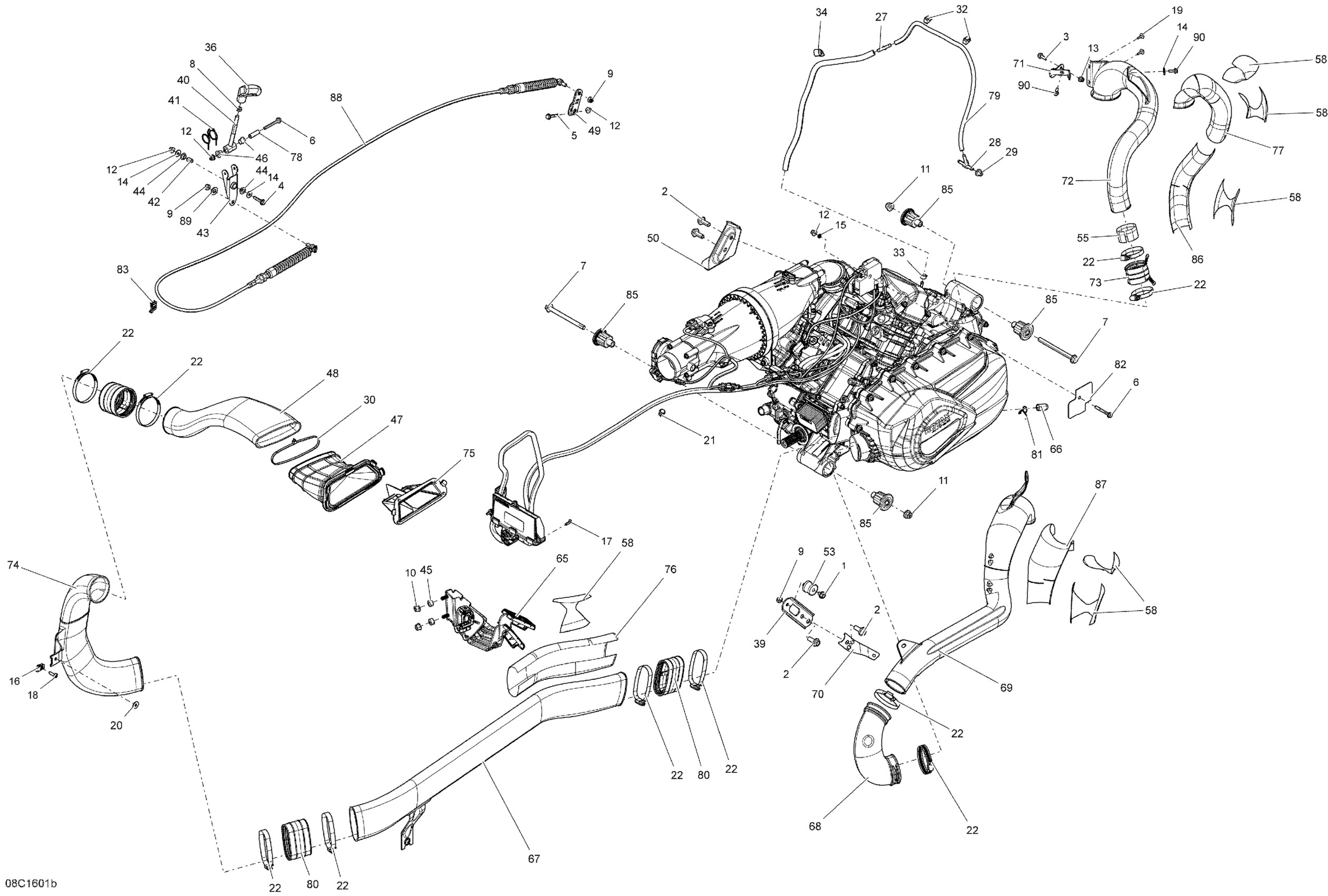

Can-Am Commander - Commander MAX, 2016 01- Engine and Engine Support - MAX Diagram

#

Description
Price

1

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

2

Hex. Flange Screw M10 X 25

207602544

$1.69

3

Hex. Flange Screw M6 X 20

207662046

$2.11

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

5

Hex. Flange Screw M6 X 35

207663544

$0.90

6

Hex. Flange Screw M6 X 50

207665044

$4.12

7

Hex. Flange Screw M10 X 125

230602546

$7.41

8

Hex. Jam Nut M8

232180491

$7.51

9

Hex. Elastic Stop Nut M8

232581414

$0.56

10

Hex. Flange Nut M8

233081416

$1.15

11

Hex. Flange Elastic Nut M10

233201436

$2.11

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Elastic Flange Nut M6 X 1.0

233261416

$2.11

14

Flat Washer 6 mm

234062410

$0.77

15

External Serrated Lock Washer 6 mm

234461608

$1.15

16

Panel Nut M6 X 1.0

250100198

$2.11

17

Torx Screw K50 X 16

250000720

$1.69

18

Torx Screw M6 X 20

250000722

$1.68

19

Screw M4 X 16

250000725

$3.49

20

Flat Washer

250200082

$0.42

21

Tuflok Plastic Rivet

293150230

$1.47

22

Norma Clamp

293650091

$11.12

22

Norma Gear Clamp

293650118

$13.16

27

Straight Fitting

293710039

$7.59

28

Y-Fitting

293710059

$9.69

29

Grommet

293720029

$1.59

30

Tie Wrap 368 mm

293750008

$1.04

32

Clip

414227300

$1.67

33

Spring Clamp

414415200

$0.88

34

Open Clamp

518321570

$7.69

36

Lever Handle

707000284

$19.99

39

Upper Engine Bracket

707000707

$8.79

41

Lever Arm Spring

707000750

$2.68

42

Bushing

707000801

$2.68

43

Lower Lever Arm

707000828

$19.99

44

Flanged Bushing

707000847

$1.25

45

Bushing

707000848

$1.35

46

Flanged Bushing

707000869

$2.89

47

Adaptor

707000908

$35.99

48

Primary Air Intake

707000909

$22.49

49

Lever

707000911

$20.49

50

Cable Support | Engine 1000

707000919

$16.87

50

Cable Support | Engine 800

707000921

$16.87

53

Rubber Isolator

707000949

$11.49

55

Reflector

707000988

$4.14

58

Reflective Sheet

707000991

$10.49

65

Accelerator Pedal

707001166

$274.99

66

Plug

707001185

$1.15

67

Air Inlet

707001228

$54.99

68

Front Adaptor

707001229

$22.49

69

CVT Outlet

707001230

$49.99

70

Front Support

707001231

$15.81

71

Rear Support

707001232

$10.99

72

CVT Outlet

707001243

$66.99

73

Adaptor

707001274

$16.25

74

Air Inlet

707001339

$20.99

75

CVT Filter

707001344

$15.49

76

Reflector

707001346

$30.99

77

Reflector

707001360

$9.23

78

Bushing

707001376

$5.24

79

Polyurethane Hose 10000Mm Long

219704410

$56.99

80

Flexibale Adaptor

707002585

$10.99

81

Retainer Clip

707800506

$12.63

82

Insulator Pad

710000073

$11.12

83

Clip Tie-Rap

710002899

$8.49

85

Anti Vibration Buffer

707001170

$20.99

86

Reflector

707001284

$9.23

87

Reflector

707001286

$9.23

88

Shifting Cable

707001283

$67.99

89

Flat Washer 10 mm

234001410

$1.26

90

Hex. Flange Screw M6 X 16

210261650

$1.67
