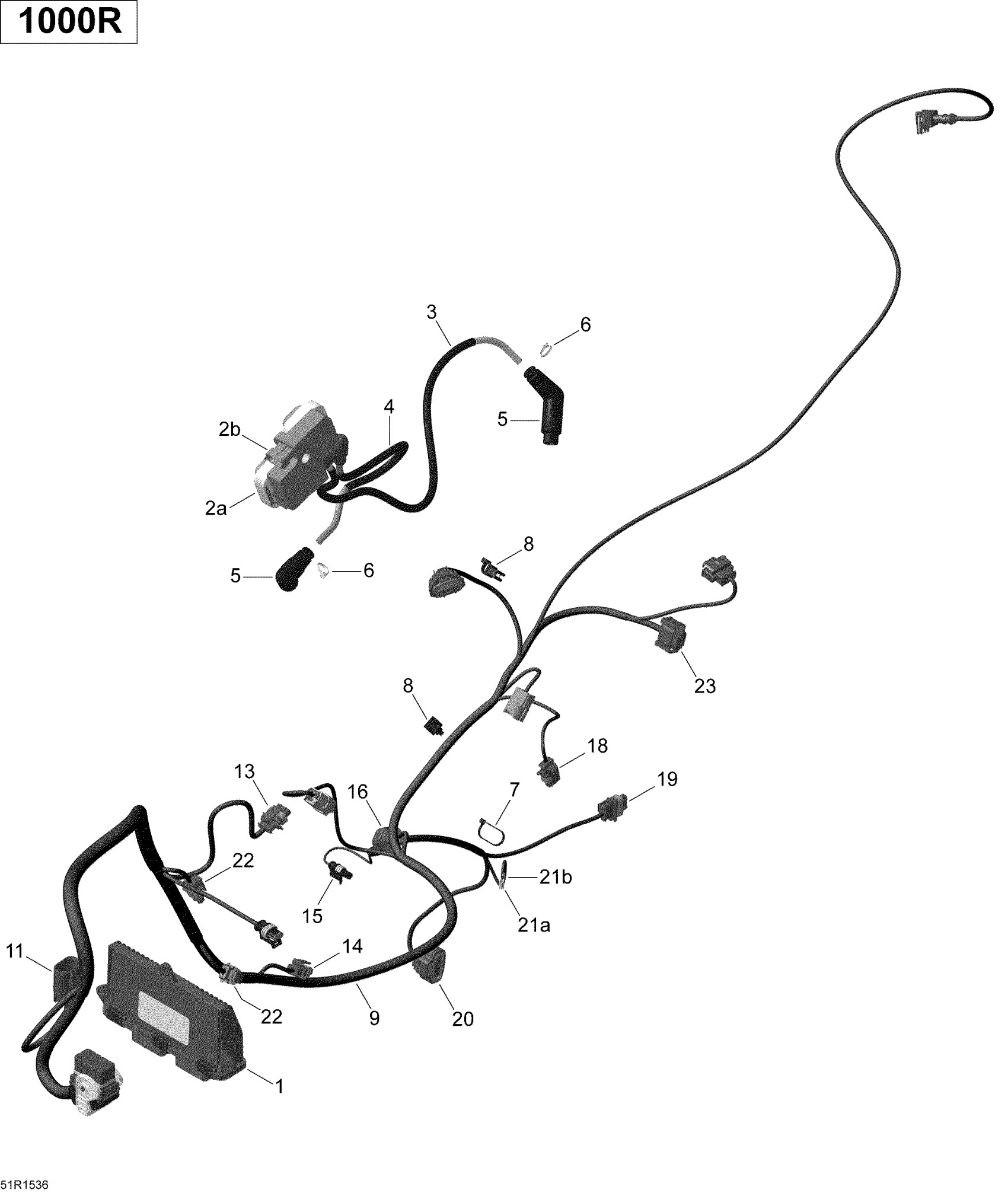

Can-Am Maverick MAX 1000_XDS-DPS, 2015 10- Engine Harness And Electronic Module Maverick MAX Turbo_51R1536 Diagram

Module Ecu *Ecu Module

420265932

$1,269.99

Ignition Coil

278001546

$158.99

Housing

710000568

$11.12

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

Spark Plug Connector

420265020

$27.49

Tie Rap

420866710

$5.49

Tie Wrap 94 mm | 4X4

293750001

$1.03

Cable Clamp 150mm

420951650

$4.44

WIRING HARNESS - Call your local BRP dealership | Includes 9 to 23

420666665

Unavailable

Housing

710001927

$8.79

Male Housing, 3 Circuits

278000997

$19.49

Male Housing, 2 Circuits

278001005

$19.49

Male Housing, 1 Circuit

278001012

$16.86

Male Housing

278002378

$13.99

Male Housing, 2 Circuits

278001005

$19.49

Male Housing, 3 Circuits

278000997

$19.49

Male Housing, 4 Circuits

710000329

$15.36

Female Terminal | DS 650 X

278001009

$3.19

Insulated Sheath

278001007

$3.58

Male Housing, 2 Circuits

278001005

$19.49

Housing

710003731

$8.59
