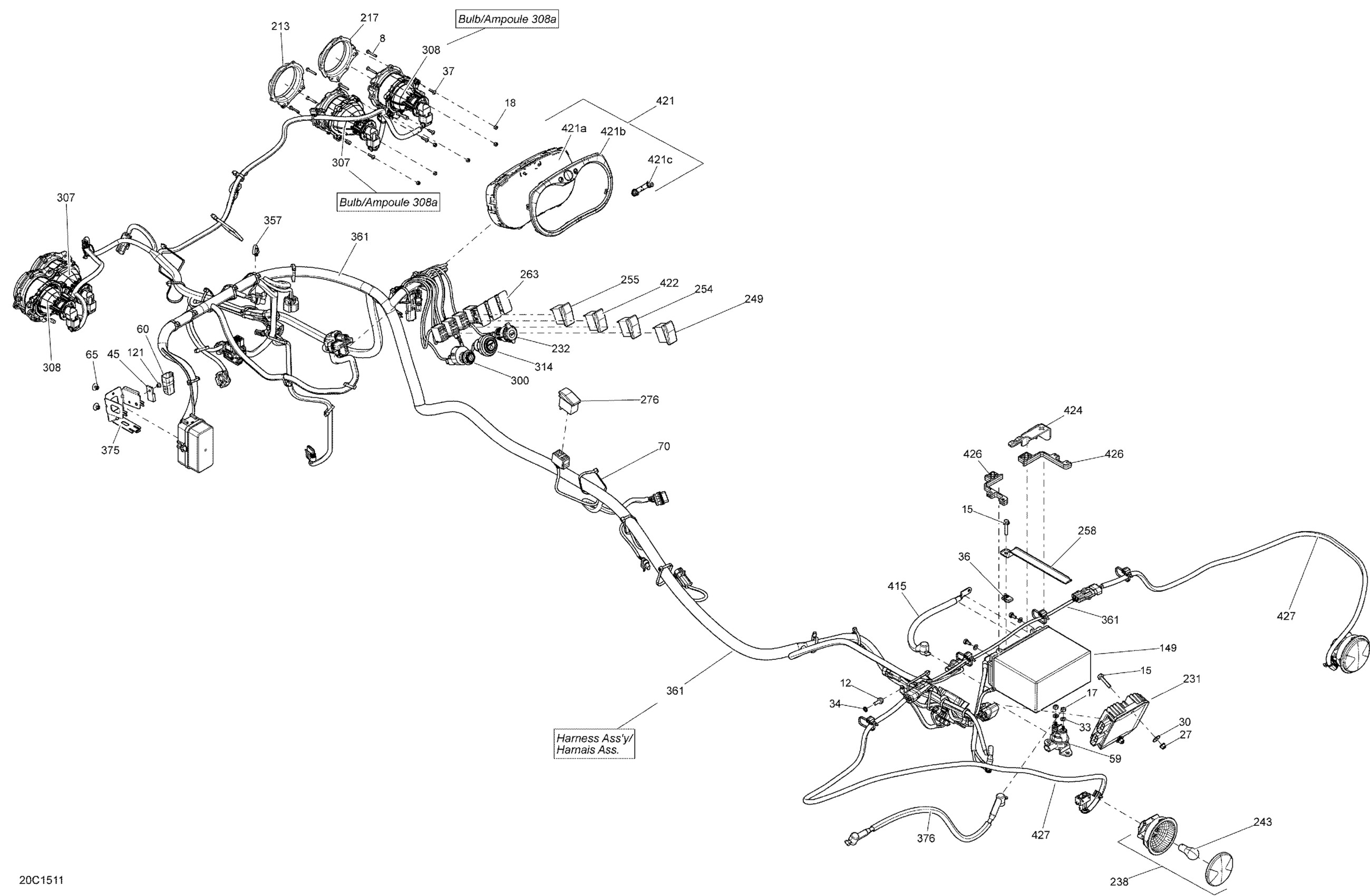

Can-Am Maverick MAX 1000_XDS-DPS, 2015 10- Electrical System  _20C1511 Diagram

#

Description
Price

8

Hex. Screw M4 X 25

207142544

$2.00

12

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

15

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

17

Hex. Nut M6

232061600

$1.15

18

Elastic Stop Nut M4

232541414

$0.58

27

Hex. Flange Elastic Nut M6

233261494

$1.58

30

Stainless Steel Flat Washer

234062670

$2.11

33

Lock Washer Helical M6

234161601

$1.15

34

External Serrated Lock Washer 6 mm

234461608

$1.15

36

Panel Nut M6 X 1.0

250100198

$2.11

37

Phillips Screw K40 X 16

250000723

$0.98

45

Clip

270000141

$11.49

59

Starter Relay

278003012

$42.49

60

Diagnostic Connector

278002704

$19.49

65

Pop Rivet 3/16"

293150103

$0.55

70

Tie Wrap 368 mm

293750008

$1.04

121

Pop Rivet 3/16"

390402400

$0.35

149

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

213

RH Low Front Housing

710001081

$19.99

213

LH Low Front Housing

710001083

$19.99

217

RH High Front Housing

710001085

$19.99

217

LH High Front Housing

710001087

$19.99

231

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

232

DC Outlet

710001248

$37.99

238

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

243

Bulb

520000758

$9.10

249

Hi/Low Switch | Except Europe

710001725

$21.49

254

4X4 Switch

710001737

$31.99

255

Switch DPS

710001781

$22.99

258

Battery Holder

710001916

$21.99

263

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

276

Switch, Over ride

710002053

$19.49

300

Ignition Switch

710008400

$78.49

307

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

308

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

308a

Halogen Bulb

415129249

$41.49

314

Engine Start Button

710002594

$60.49

357

Dart Tie Rap 200MM

710003168

$7.09

361

Wiring Harness Assembly

710004343

$1,449.99

375

Fuse Holder

710003335

$10.11

376

Positive Cable

710004390

$36.99

415

Positive Cable | Model-DPS

710004393

$35.99

421

Multifunction Speedometer | XRS, XRS DPS

710004547

$439.99

421a

Lens | XTP

415129349

$24.49

421b

Gauge Ring

415129348

$13.99

421c

Speedometer Button | XTP

415129355

$15.80

422

Switch PPS Sport

710003541

$19.49

424

Cap

710003582

$11.99

426

Battery Rubber Pad

710003602

$12.99

427

Rear Harness

710003680

$28.99
