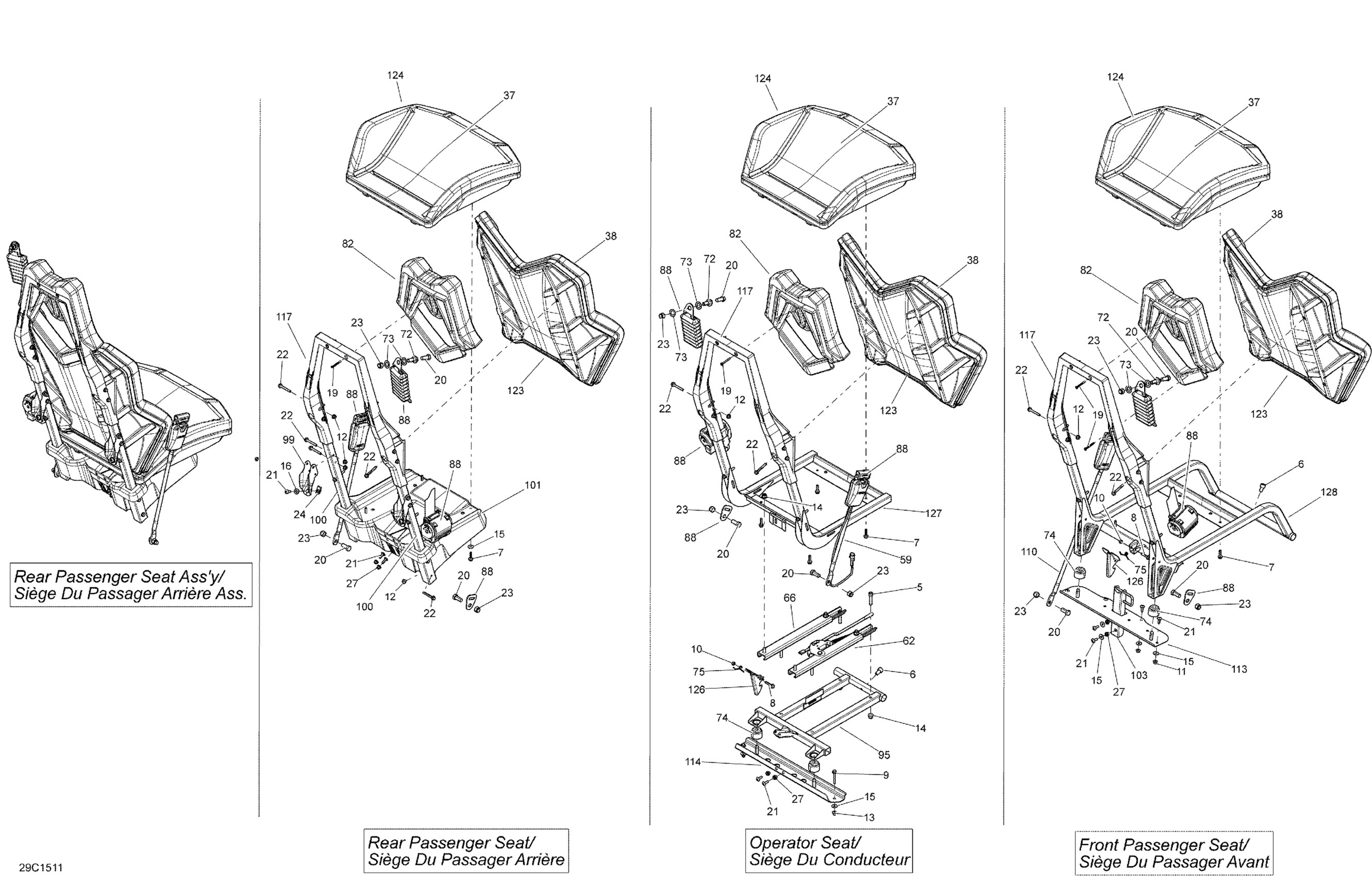

Can-Am Maverick MAX 1000_XDS-DPS, 2015 09- Seat _29C1511 Diagram

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

Socket Screw M10 X 16

205501644

$4.29

Hex. Flange Screw M6 X 25

207562544

$1.69

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Screw M6 X 45

207664544

$1.46

Hex. Elastic Stop Nut M6

232561600

$1.15

Hex. Flange Nut M6

233061414

$1.68

Hex. Elastic Flange Nut M6

233161464

$1.01

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Stainless Steel Flat Washer

234062670

$2.11

Conical Spring Washer M8

234281474

$1.48

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

Tork Screw M6 X 18

250000536

$2.11

Hex. Flange Screw M6

250000672

$2.11

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

Panel Nut M6 X 1.0

250100171

$4.09

Threaded Insert M6 X 1.0

250100242

Unavailable

Seat Cover

708001554

$81.49

BACKREST COVER - Call your local BRP dealership

708001574

Unavailable

Driver Buckle Side

708002061

$70.99

RH Rail

708001739

$35.99

LH Rail

708000848

$53.99

Safety Belt Screw

708000890

$3.79

Position Washer

708000891

$1.29

Rubber Bumper

708001671

$2.89

Spring

708000921

$1.29

Head Rest

708001074

$104.99

Safety Belt

708001302

$280.99

Seat Member

708001174

$80.99

Anchor

708001195

Unavailable

LATERAL TUBE - Call your local BRP dealership

708001196

Unavailable

Seat Support

708001198

$68.99

Anchor

708001213

$24.49

Passenger Buckle Side

708001206

$67.99

Support

708001804

$49.99

Seat Support

708001214

$67.99

Seat Support

708001245

$28.99

BACKREST - Call your local BRP dealership

708001573

Unavailable

Cushion Assembly

708001552

$319.99

Seat Latch

708001355

$2.59

Operator Seat Frame

708001356

$329.99

Passenger Seat Frame

708001357

$319.99
