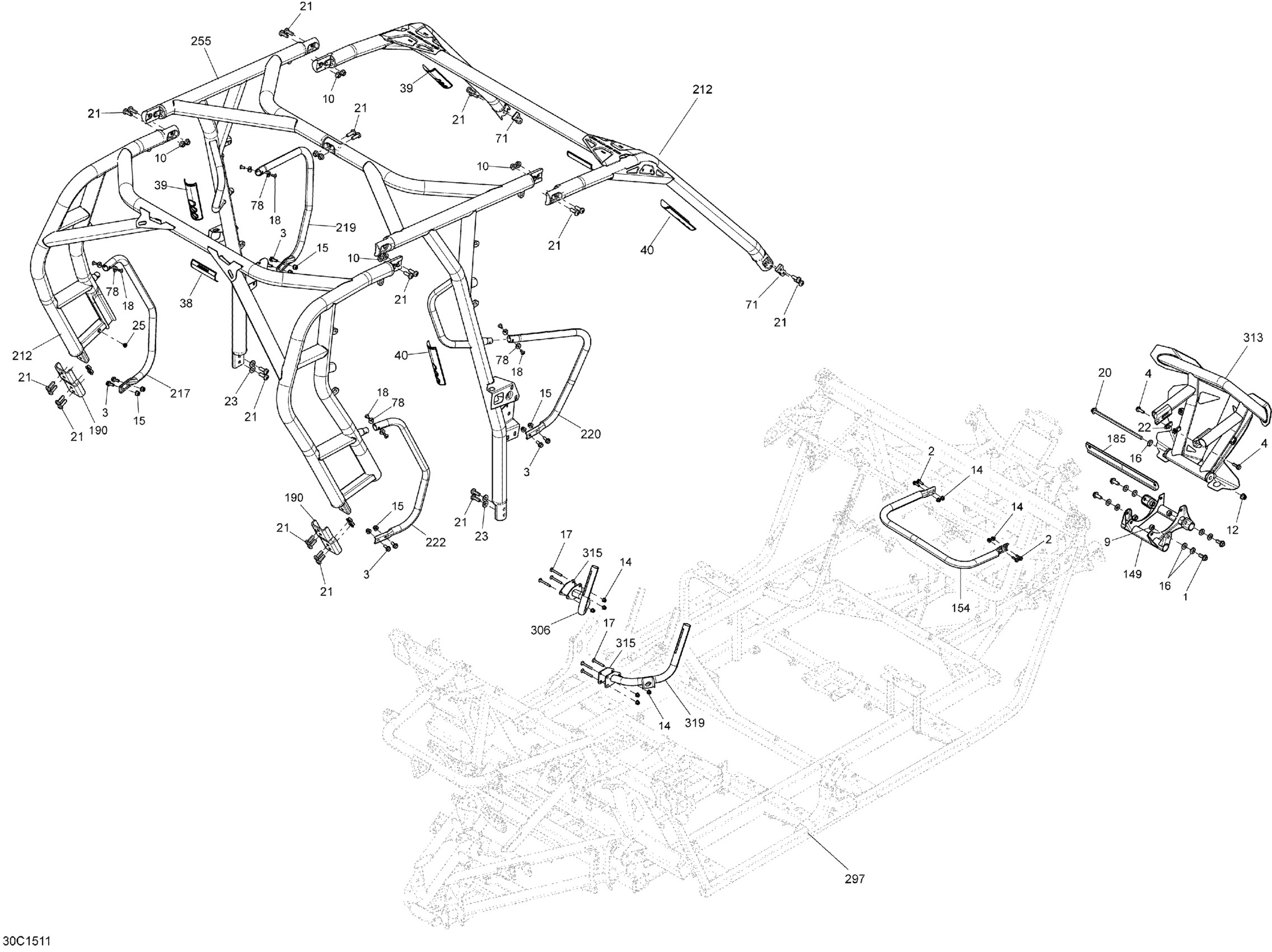

Can-Am Maverick MAX 1000_XDS-DPS, 2015 09- Frame _30C1511 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 25

207602546

$2.11

2

Hex. Flange Screw M6 X 20

207662046

$2.11

3

Hex. Flange Screw M8 X 20

207682044

$1.15

4

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

9

Elastic Stop Nut M10

232500416

$1.90

10

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

12

Hex. Flange Elastic Nut M10

233201436

$2.11

14

Elastic Flange Nut M6 X 1.0

233261416

$2.11

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Conical Spring Washer 10 mm

234201474

$1.69

17

Torx Screw M6 X 50

250000317

$2.11

18

Torx Truss M6X14

250000789

$5.39

20

Hex. Flange Screw

250000597

$12.70

21

Screw Pan M10 X 30

250000848

$1.90

22

Panel Nut M8 X 1.25

250100118

$2.09

23

Washer

250200154

$3.70

25

Threaded Insert M6 X 1.0

250100242

Unavailable

38

Warning Label

704903492

Unavailable

39

Warning Label

704903679

Unavailable

40

Warning Label

704903680

Unavailable

71

Binding Block

705203415

$18.49

78

Offset Washer

705202223

$4.14

149

DIFFERENTIAL SUPPORT - Call your local BRP dealership

705203296

Unavailable

154

Black Handle

705203332

$132.49

185

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$22.49

190

Rear Hand Mounting

705203514

$20.49

212

Green Cage Kit | Manta Green Safety Cage

715003907

$1,039.99

217

MANTA GREEN LH REAR PROTECTOR TUBE - Call your local BRP dealership

705204062

Unavailable

219

MANTA GREEN LH SIDE PROTECTOR TUBE - Call your local BRP dealership

705204066

Unavailable

220

MANTA GREEN RH SIDE PROTECTOR TUBE - Call your local BRP dealership

705204067

Unavailable

222

MANTA GREEN RH REAR PROTECTOR TUBE - Call your local BRP dealership

705204063

Unavailable

255

Black Central Cage Kit

715003902

$779.99

297

BLACK MAX FRAME ASS'Y - Call your local BRP dealership

703501013

Unavailable

306

Black Console Handle | MAVERICK Turbo

705204253

Unavailable

313

FRONT BUMPER ASS'Y - Call your local BRP dealership | Model-North America, International

705204266

Unavailable

315

Steel Plate

705204606

$10.99

319

Black Console Handle

705204399

$137.49
