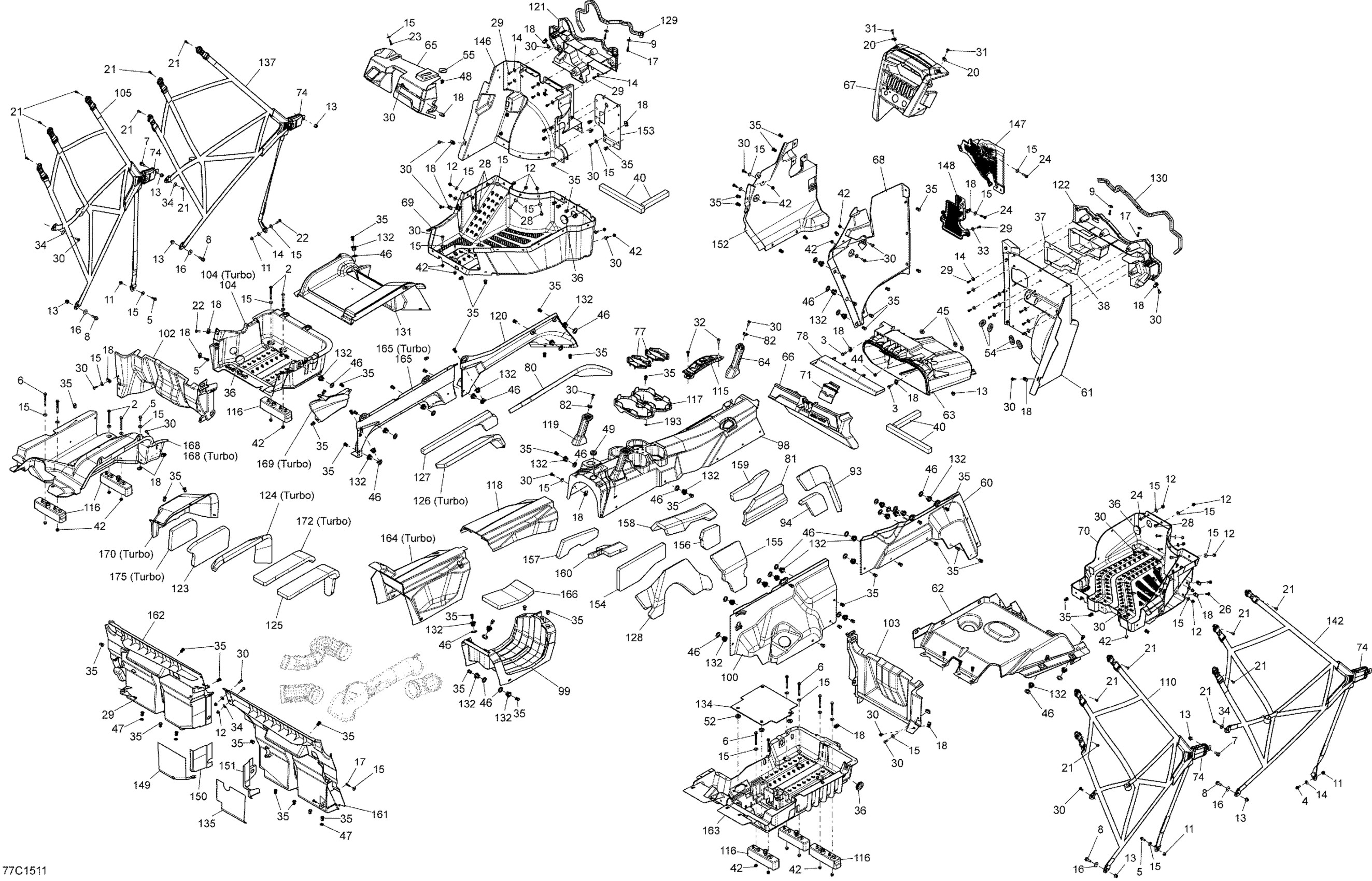

Can-Am Maverick MAX 1000_XDS-DPS, 2015 09- Cab Interior _77C1511 Diagram

#

Description
Price

2

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

3

Hex. Flange Screw M6 X 20

207662034

$2.11

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Screw M6 X 20

207662054

$1.01

6

Hex. Flange Screw M6 X 70

207667056

$4.44

7

Hex. Flange Screw M8 X 20

207682044

$1.15

8

Hex. Flange Screw M8 X 25

207682534

$2.11

9

Flat Washer

224060201

$1.26

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Hex. Flange Elastic Nut M6

233261494

$1.58

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Flat Washer 6 mm

234062410

$0.77

15

Stainless Steel Flat Washer

234062670

$2.11

16

Flat Washer 8 mm

234082410

$1.47

17

Hex. Flange Screw K50 X 20

241152060

$1.99

18

Panel Nut M6 X 1.0

250100198

$2.11

20

Panel Nut M5 X 0.8

250000958

$4.23

21

Torx Screw M5 X 14

250000742

$1.47

22

Torx Screw M6 x 25

250000284

$2.11

23

Truss Head Torx Screw K50 X 20

250000297

$2.11

24

Torx Truss Screw M6 X 30

250000843

$2.11

26

Torx Truss Screw M6 X 25

250000807

$2.11

28

Torx Screw M6 X 20

250000712

$2.11

29

Torx Screw K50 X 16

250000720

$1.69

30

Torx Screw M6 X 20

250000722

$1.68

31

Torx Screw M5 X 20

250000724

$1.69

32

Torx Screw M6 X 25 | XT Models

250000728

$4.44

33

Washer M5

250200025

$0.74

34

Flat Washer

250200040

$1.90

35

Tuflok Plastic Rivet

293150230

$1.47

36

Rubber Cover

293250242

$6.99

37

Upper Seal

293250252

$2.59

38

Bottom Seal

293250253

$2.79

40

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

42

Threaded Insert M6 X 1.0

250100242

Unavailable

44

Rubber Bumper

293830005

$8.09

45

CAP - Call your local BRP dealership

414859400

Unavailable

46

Washer

503189273

$3.28

47

Washer

506151252

$3.17

48

Edge Clip

517302785

$0.88

49

Grommet

517303756

$4.09

52

Grommet

705003264

$4.09

54

Oblong Grommet

705003668

$5.79

55

Support Plate

705003841

$0.99

60

RH Side Console

707900002

$36.99

61

RH Front Floor

707900004

$83.99

62

RH Under Seat Plate

707900006

$114.99

63

Storage Bin

707900009

$114.99

64

Passenger Handle

707900011

$13.75

65

Dashboard Ass'y

715001250

$79.99

66

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

$49.99

67

Lower Central Dashboard Ass'y | Europe

707900019

$40.99

68

RH Fixe Side Console

707900021

$76.99

69

LH Lower Floor

707900022

$269.99

70

RH Lower Floor

707900023

$194.99

71

Latch

707900031

$8.49

74

Buckle

707900035

$53.99

77

Cup Retainer

707900036

$6.89

78

Trim Glove Box

707900062

$18.49

80

LH Lower Lateral Console Foam

707900621

$23.99

81

RH Lateral Console Foam

707900622

$16.49

82

Connector Tube

707900048

$6.19

93

RH Lateral Console Foam

707900623

$16.49

94

RH Lateral Console Foam

707900624

$16.49

98

CENTRAL CONSOLE KIT - Call your local BRP dealership

715002914

Unavailable

99

Rear Central Console

707900075

$46.99

100

RH Rear Console Panel

707900080

$68.99

102

LH Rear Upper Floor Cover

707900082

$53.99

103

Seat Cover

707900083

$46.49

104

Rear Floor | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900331

$83.99

104

LH MID FLOOR - Call your local BRP dealership

707900084

Unavailable

105

Rear LH Safety Net | Upper Link 707900049

707900239

$224.99

110

Rear RH Safety Net | Upper Link 707900049

707900240

$224.99

115

Shift Lever Indicator

707900088

$15.49

116

Support Plate

707900099

$16.49

117

Cup Holder

707900100

$18.49

118

Rear Console Cover Kit

707900229

$44.99

119

Handle

707900103

$15.36

120

LH Side Console

707900001

$44.99

121

Floor Support LH

707900561

$21.99

122

RIGHT FLOOR SUPPORT - Call your local BRP dealership

707900562

Unavailable

123

INSULATION_ACOUSTIC - Call your local BRP dealership

707900116

Unavailable

124

ACOUSTIC FOAM - Call your local BRP dealership | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900354

Unavailable

124

INSULATION_ACOUSTIC - Call your local BRP dealership

707900117

Unavailable

125

INSULATION_ACOUSTIC - Call your local BRP dealership

707900118

Unavailable

126

LH Rear Lateral Foam | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900625

$23.99

126

INSULATION_ACOUSTIC - Call your local BRP dealership

707900119

Unavailable

127

LH Rear Lateral Foam

707900626

$16.49

128

INSULATION_ACOUSTIC - Call your local BRP dealership

707900121

Unavailable

129

Was 293200017 Neoprene Seal

219704365

$149.99

130

Was 293200017 Neoprene Seal

219704365

$149.99

131

Under Seat Cover

707900130

$81.99

132

Insert

707900133

$2.89

134

Battery Cover

707900163

$18.49

135

Heat Shield

707900167

$9.39

137

Front LH Safety Net

707900237

$119.99

142

Front RH Safety Net

707900238

$119.99

146

LH Front Upper Floor

707900175

$83.99

147

Grille

707900178

$10.99

148

Grille

707900180

$10.99

149

Heat Shield

707900182

$8.89

150

Heat Shield

707900183

$5.29

151

Heat Shield

707900184

$5.29

152

Front Side Dash Panel

707900193

$69.99

153

Deflector | XRS-DPS

707900204

$17.49

154

INSULATION_ACOUSTIC - Call your local BRP dealership

707900205

Unavailable

155

RH Rear Lateral Foam

707900627

$16.49

156

INSULATION_ACOUSTIC - Call your local BRP dealership

707900209

Unavailable

157

Front Central Foam

707900628

$11.49

158

Front Central Foam

707900629

$17.49

159

Front Central Foam

707900630

$11.49

160

INSULATION_ACOUSTIC - Call your local BRP dealership

707900213

Unavailable

161

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900219

Unavailable

162

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership

707900220

Unavailable

163

RH Lower Rear Floor

707900670

$194.99

164

Rear Console Kit | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900334

$82.99

165

LH REAR CONSOLE PANEL - Call your local BRP dealership | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900327

Unavailable

165

LH REAR CONSOLE PANEL - Call your local BRP dealership

707900298

$62.99

166

INSULATION_ACOUSTIC - Call your local BRP dealership

707900307

Unavailable

168

LH REAR BOTTOM PAN - Call your local BRP dealership | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900328

Unavailable

168

LH REAR BOTTOM PAN - Call your local BRP dealership

707900081

Unavailable

169

Floor Cap | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900329

Unavailable

170

REAR CAP FLOOR - Call your local BRP dealership | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900330

Unavailable

172

ACOUSTIC FOAM - Call your local BRP dealership | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900332

Unavailable

175

ACOUSTIC FOAM - Call your local BRP dealership | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900355

Unavailable

193

Push Nut

732610072

$2.19
