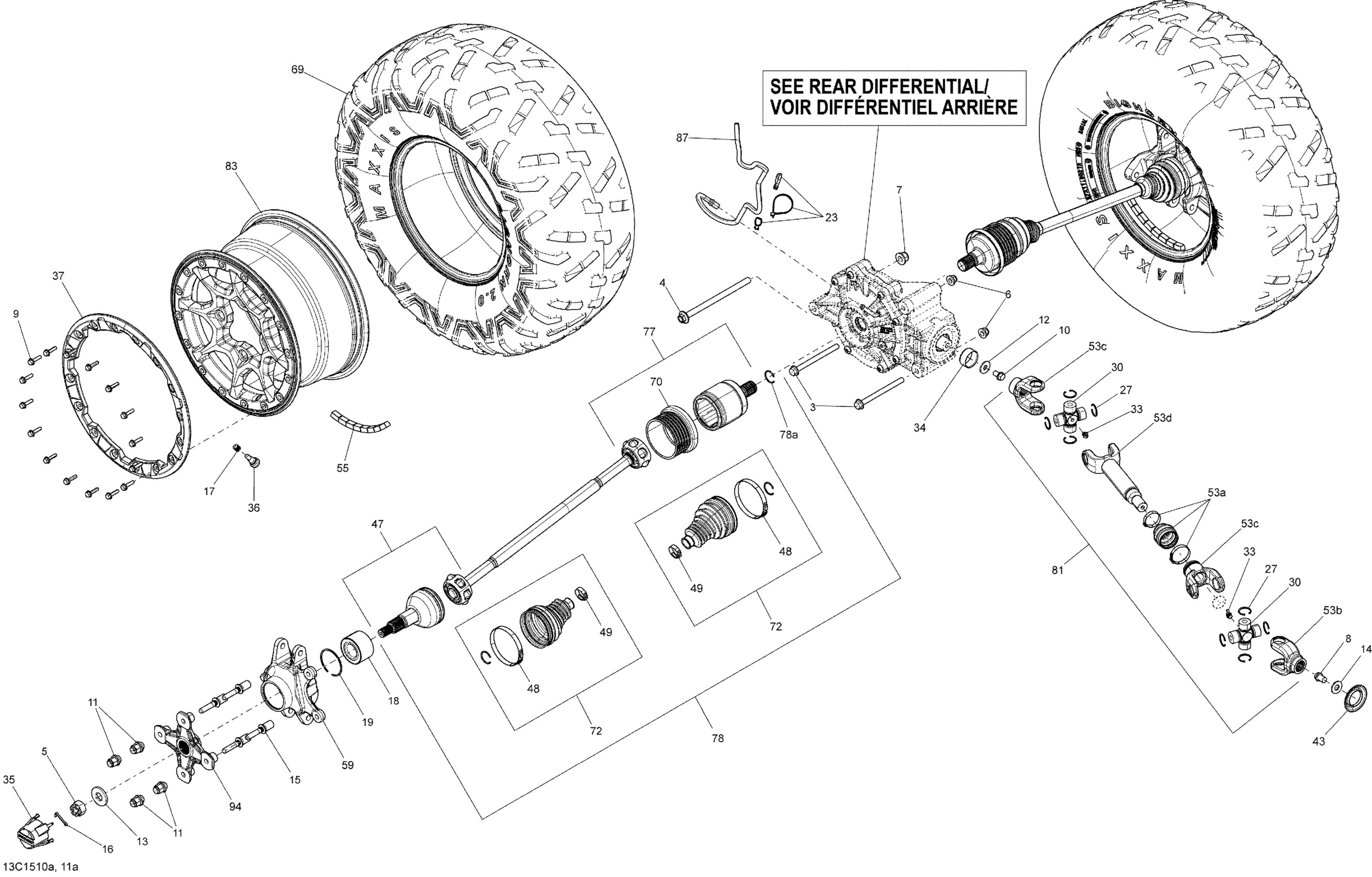

Can-Am Maverick MAX 1000_XDS-DPS, 2015 08- Drive System, Rear _13C1511a Diagram

#

Description
Price

3

Hex. Flange Screw M10 X 125

230602546

$7.41

4

Hex. Flange Screw M12 X 190

230629087

$19.99

5

Castle Nut M20

250100193

$8.05

6

Hex. Flange Elastic Nut M10

233201436

$2.11

7

Elastic Flange Nut M12

233221416

$2.85

8

Hex Flange Screw M12 X 16

250001039

$2.11

9

Hex. Flange Screw M6 X 25

250000787

$2.22

9a

Insert | XXC

293450317

$7.29

10

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

11

Black, Wheel Nut M10 X 1.25

250100184

$4.51

12

Flat Washer M10 | 4X4

250200014

$1.49

13

Conical Spring Washer M20

250200170

$14.74

14

Flat Washer M12

250200102

$2.11

15

Wheel Stud

250300060

$11.49

16

Cotter Pin

250400036

$2.11

17

Valve Cap

293000110

$1.59

18

Ball Bearing

293350150

$52.99

19

Circlip

293370019

$4.68

23

Tie-Rap 180 mm

414115200

$0.11

27

Not Available As Spare Part - Friction Washer

Unavailable

30

Universal Joint Ass'y | T3

703500846

$59.49

33

Grease Fitting | T3

715900295

$5.24

34

Wear Ring | 4X4

705400036

$26.49

35

Wheel Cap

705400928

$10.49

36

Rim Valve With Cap

705400193

$8.69

37

Manta Green, Reinforcement Disk | Model Mineral Gray Satin

705401586

$92.99

37

Blue Reinforcement Disk | Package XMR Blue

705401702

$92.99

43

Protector

705501123

$7.55

47

CV Joint

715900391

$259.49

48

Oetiker Clamp, 82.1 mm

715900241

$10.33

49

Oetiker Clamp, 27.3 mm

715900242

$10.33

53a

Rubber Boot

715900118

$14.30

53b

Joint

715900272

$24.99

53c

Joint

715900271

$24.99

53d

Spline Yoke

715900106

$41.49

55

Not Available As Spare Part - Friction Washer

Unavailable

59

LH Rear Knuckle

705501730

$185.49

59

RH Rear Knuckle

705501731

$195.99

69

Rear Tire Maxxis 28X11X14 | Model-North America, International

705502603

$275.49

69

Rear Tire | STD Model Europe

705501434

$153.49

70

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

72

Boot Kit

705501864

$42.49

77

Plunging Joint

705501865

$259.49

78

CV Joint

705502412

$243.99

78a

Circlip

705501781

$6.50

81

Drive Shaft Ass'y

703500939

$259.49

83

Black, Rim | Includes 150b to 150ba

705502146

$297.99

83

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$206.49

87

Polyurethane Hose 10000Mm Long

219704410

$56.99

94

Wheel Hub ( 29 Splines )

705502223

$126.99
