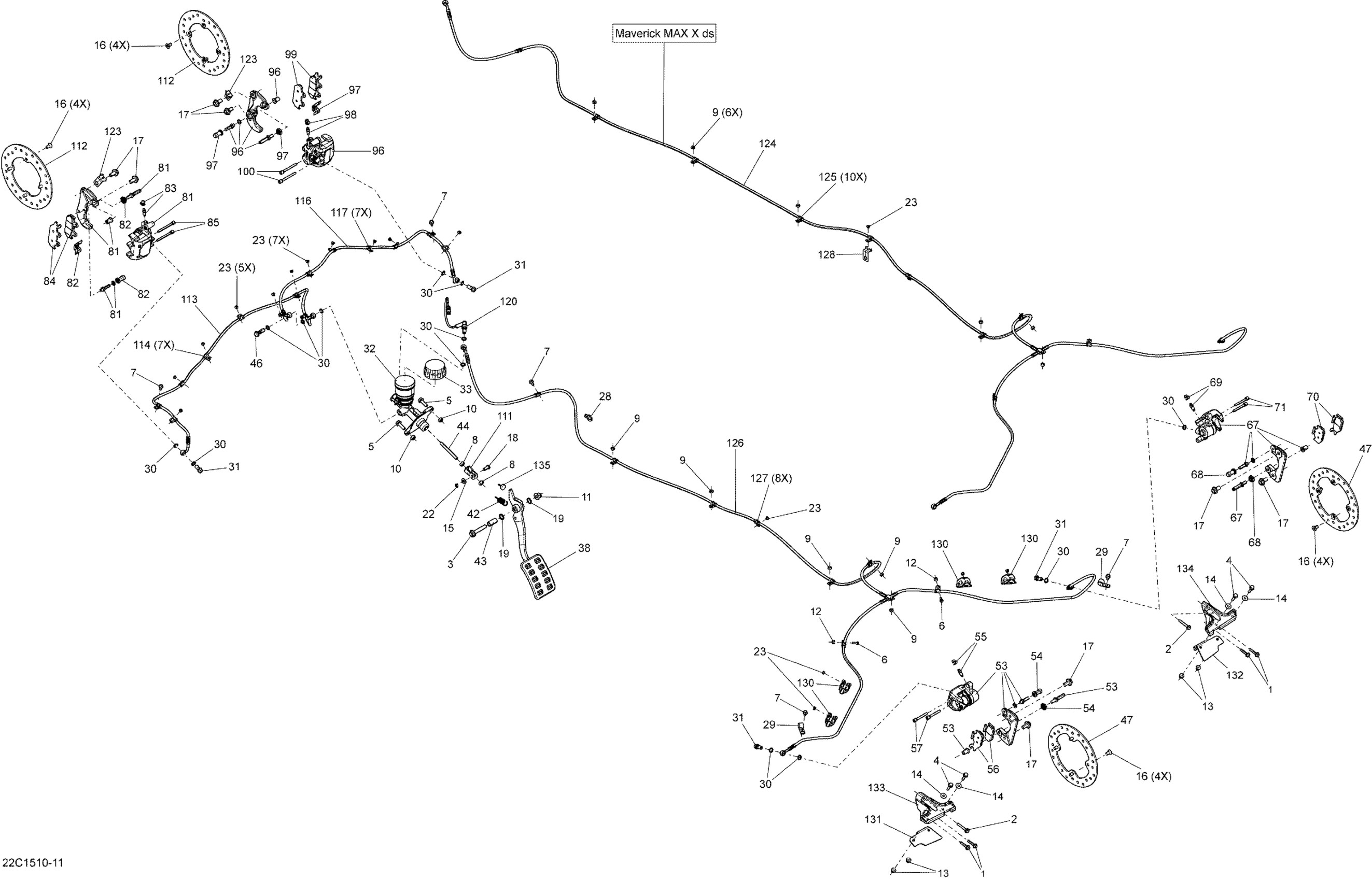

Can-Am Maverick MAX 1000_XDS-DPS, 2015 06- Brakes _22C1511 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

2

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

3

Hex. Flange Screw M10 X 55

207605544

$3.38

4

Hex. Flange Screw M6 X 25

207662544

$0.64

5

Hex. Flange Screw M8 X 25

207682534

$2.11

6

Hex. Forming Screw M5 X 16

210251650

$1.15

7

Hex. Flange Screw M6 X 10

210261040

$1.48

8

Hex. Nut M8

232081414

$0.72

9

Elastic Stop Nut M6

232561434

$1.99

10

Hex. Elastic Stop Nut M8

232581414

$0.56

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

Flange Elastic Nut M5

233251434

$2.00

13

Hex. Flange Elastic Nut M6

233261494

$1.58

14

Stainless Steel Flat Washer

234062670

$2.11

15

Flat Washer M8

234081430

$2.11

16

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

17

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

18

Pin | Not Shown

250400058

$8.29

19

O-Ring

293300144

$3.82

22

Cotter Pin

371800700

$1.01

23

Pop Rivet 3/16"

390402200

$0.35

28

Tie-Rap 180 mm

414115200

$0.11

29

Open Clamp

518321570

$7.69

30

Copper Washer

705601628

$4.44

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

32

Master Cylinder Ass'y | Includes 11 to 13

705601505

$244.99

33

Diaphragm Cap Kit

715500332

$29.49

38

Brake Pedal

705600724

$57.99

42

Brake Pedal Spring

705600792

$9.10

43

Inner Spacer

705600815

$11.60

44

Master Cylinder Rod

705600833

$20.49

46

Banjo Bolt

705600958

$6.35

47

Disc Brake

705600999

$67.99

53

LH Caliper Ass'y | Includes 70 to 70d

705601089

$328.49

54

Spring, Protector And Bolt Kit

715500384

$24.99

55

Bleeding Screw

705600080

$16.87

56

LH Brake Pad Kit

705600398

$51.99

57

Pin Set (2)

705600081

$20.49

67

RH Caliper Ass'y | Includes 80 to 80d

705601090

$328.49

68

Spring, Protector And Bolt Kit

715500384

$24.99

69

Bleeding Screw

705600080

$16.87

70

RH Brake Pad Kit

705601147

$51.99

71

Pin Set (2)

705600081

$20.49

81

LH Caliper Ass'y | Includes 57 to 57d

705601128

$328.49

82

Spring And Bolt Kit

715500385

$21.99

83

Bleeding Screw

705600080

$16.87

84

LH Brake Pad Kit

705601149

$51.99

85

Hanger Pin Kit

705601151

$17.99

96

RH Caliper Ass'y | Includes 71 to 71d

705601129

$338.99

97

Spring And Bolt Kit

715500385

$21.99

98

Bleeding Screw

705600080

$16.87

99

RH Brake Pad Kit

705601150

$51.99

100

Hanger Pin Kit

705601151

$17.99

111

Yoke | Not Shown

705601142

$15.36

112

Disc Brake

705601178

$51.99

113

LH Front Flexible Hose Ass'y

705601192

$86.99

114

Clamp

293650256

$5.49

116

RH Front Flexible Hose Ass'y

705601193

$86.99

117

Clamp

293650256

$5.49

120

Brake Switch

705601250

$59.49

123

Bracket

705601337

$2.69

124

REAR FLEXIBLE HOSE - Call your local BRP dealership | Includes 124 to 125

705601530

Unavailable

125

Clamp

293650256

$5.49

126

Not Available As Spare Parts

XXX

Unavailable

127

Not Available As Spare Parts

XXX

Unavailable

128

Bracket

705601337

$2.69

130

HOSE CLAMP - Call your local BRP dealership

705601380

Unavailable

131

LH DEFLECTOR INSERT - Call your local BRP dealership | Model-North America, International

705601397

Unavailable

132

RH DEFLECTOR INSERT - Call your local BRP dealership | Model-North America, International

705601398

Unavailable

133

LH DEFLECTOR - Call your local BRP dealership

705601403

$13.99

134

RH DEFLECTOR - Call your local BRP dealership

705601404

Unavailable

135

Rubber Stopper

708000759

$4.19
