Description

Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Flat Washer

224061121

$0.53

6

Elastic Stop Nut M6

232561434

$1.99

7

Gasket

420430126

$41.49

8

Governor Cup Ass'y | Includes 8 to 11

420280589

$449.99

9

Slider Shoe Set

420281296

$65.49

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Outher Haft Ass'y | Includes 12 to 14

420280464

$435.99

13

Slide Plate

420651763

$43.49

14

Elastic Stop Nut M5

232551414

$0.87

15a

Centrifugal Lever Kit (Set Of 6) | Includes 15a to 18

420248648

$340.49

15b

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Compression Spring, Drive Pulley

420238615

$36.99

20

Seat Spring

420627578

$35.99

21

Drive Pulley Clutch

420257191

$149.99

22

Ball Bearing

420632377

$49.99

23

Retaining Ring

420245951

$5.31

24

Inner Half

420280579

$328.49

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Fan

420864910

$62.49

28

Flat Head Screw M8 X 20

420641407

$4.34

29

Washer

420245690

$4.86

30

Hex. Screw M14 X 1.5 X 153.5

420841091

$25.99

31

Not Available As Spare Part - Friction Washer

Unavailable

32

V Belt

422280367

$206.49

33

-Thrust Washer

420427770

$23.99

34

Spring Washer

420445441

$1.25

35

Hex. Screw M10 X 110

420441485

$12.18

36

Variator Cover | Includes 38

420212285

$179.99

37

Hex Screw M6 X 30

420440568

$8.58

38

Heat Protection Mat

715900358

$49.99

39

Drain Plug Kit

707001179

$9.63

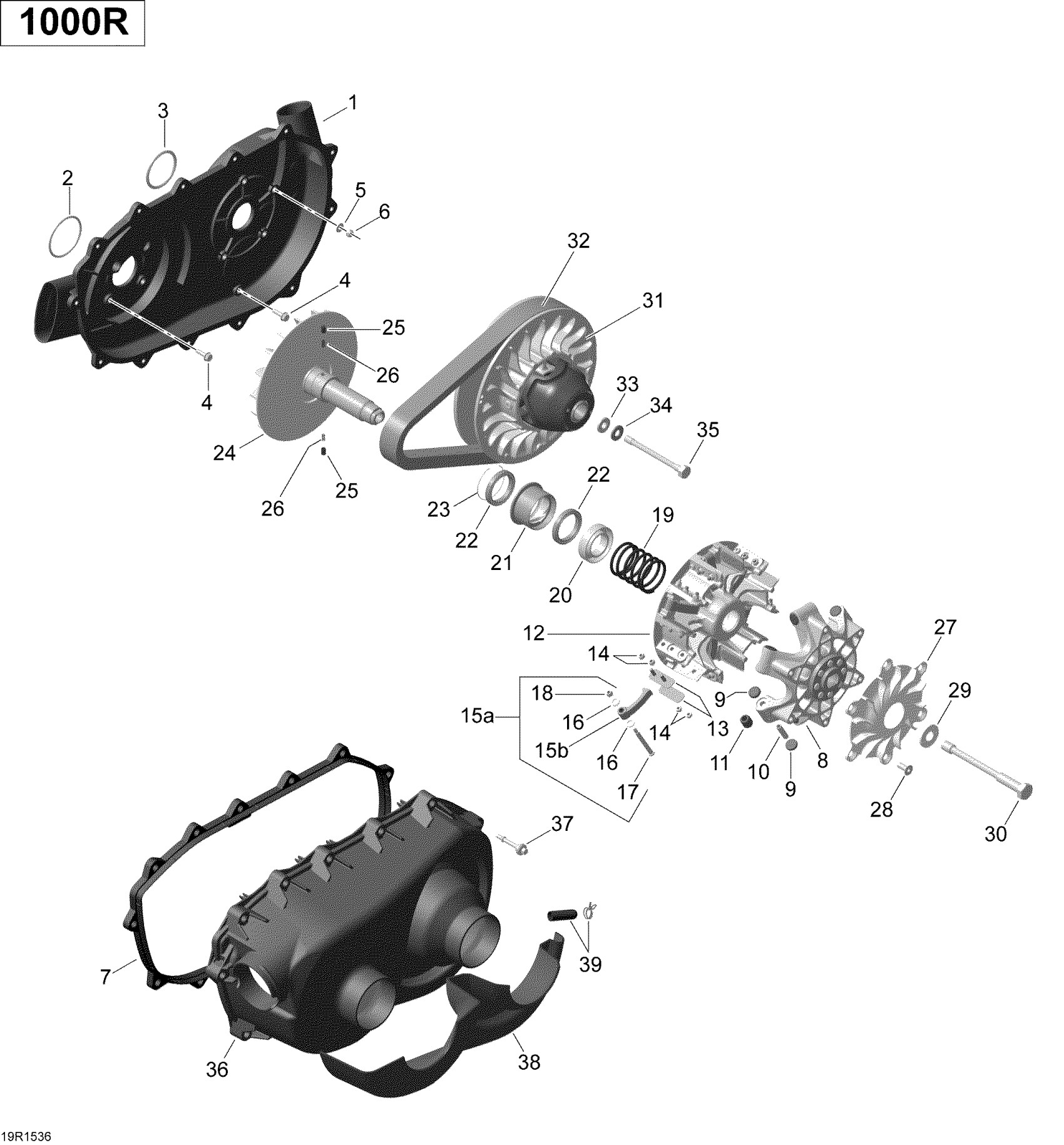

Can-Am Maverick MAX 1000_XDS-DPS, 2015 05- Transmission Turbo _19R1536 Diagram

CVT Air Guide

O-Ring

O-Ring

Hex.Screw M6 X 20

Flat Washer

Elastic Stop Nut M6

Gasket

Governor Cup Ass'y | Includes 8 to 11

Slider Shoe Set

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Outher Haft Ass'y | Includes 12 to 14

Slide Plate

Elastic Stop Nut M5

Centrifugal Lever Kit (Set Of 6) | Includes 15a to 18

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Compression Spring, Drive Pulley

Seat Spring

Drive Pulley Clutch

Ball Bearing

Retaining Ring

Inner Half

Not Available As Spare Parts

Not Available As Spare Parts

Fan

Flat Head Screw M8 X 20

Washer

Hex. Screw M14 X 1.5 X 153.5

Not Available As Spare Part - Friction Washer

V Belt

-Thrust Washer

Spring Washer

Hex. Screw M10 X 110

Variator Cover | Includes 38

Hex Screw M6 X 30

Heat Protection Mat

Drain Plug Kit
