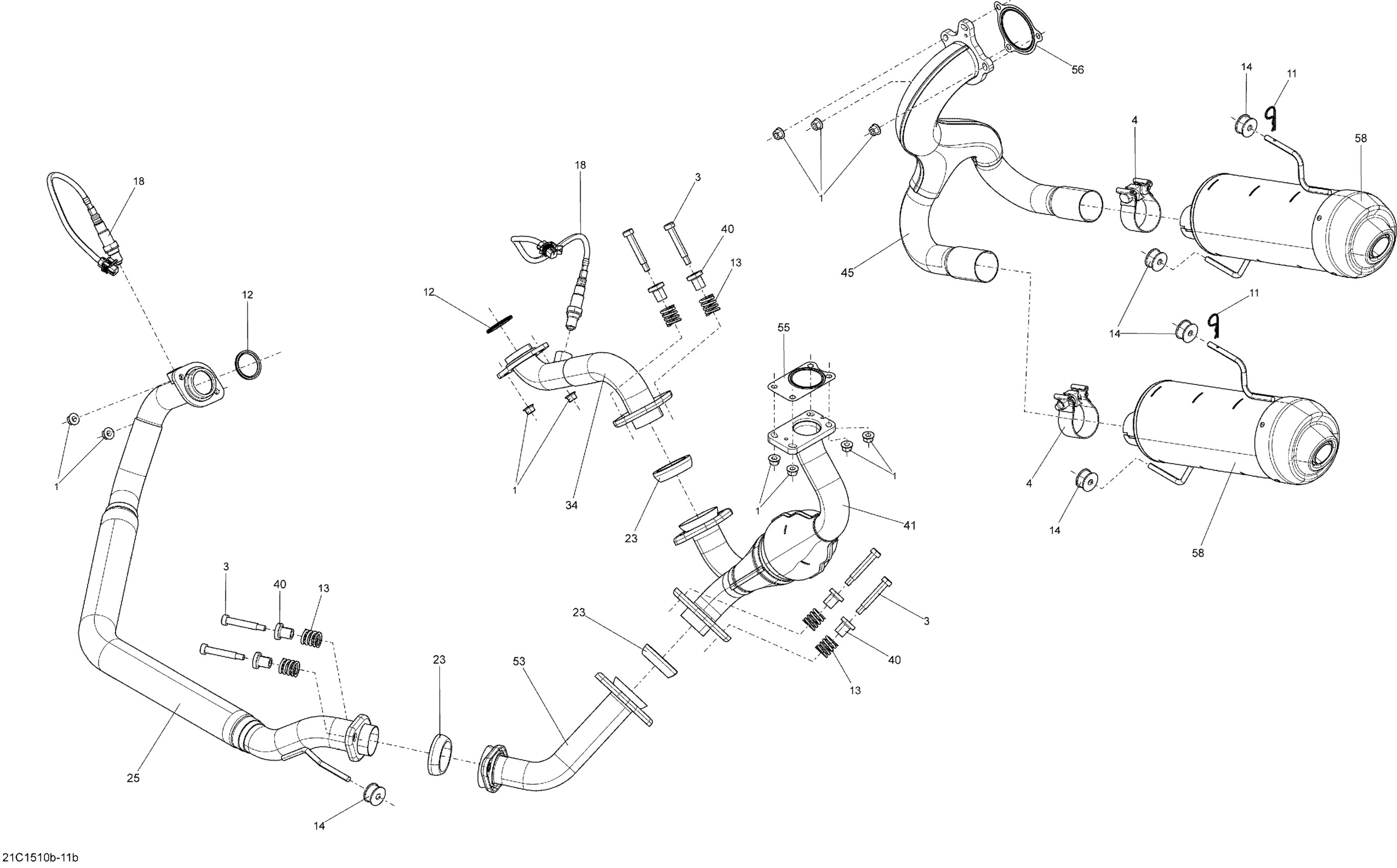

Can-Am Maverick MAX 1000_XDS-DPS, 2015 01- Exhaust System _Turbo_21C1511b Diagram

Hex. Flange Nut M8

233081416

$1.15

Socket Head Screw M10 X 50

250000658

$10.54

Gear Clamp

293650231

$16.99

Hair Pin

414575600

$1.89

Gasket

707600317

$11.60

Spring

707600682

$6.35

Anti-Vibration Rubber

707600702

$8.57

Oxygen Sensor

707600872

$144.99

Seal

707601128

$19.49

FRONT HEAD PIPE - Call your local BRP dealership

707601616

Unavailable

REAR EXHAUST PIPE - Call your local BRP dealership

707602036

Unavailable

Bushing

707601254

$11.49

Head Pipe

707601464

$1,271.49

PIPE_EXHAUST OUT WELD - Call your local BRP dealership

707601465

Unavailable

PIPE_EXHAUST IN WELD - Call your local BRP dealership

707601546

Unavailable

Seal

707601565

$38.99

Seal

707601566

$38.99

MUFFLER_EXHAUST - Call your local BRP dealership

707601636

Unavailable
