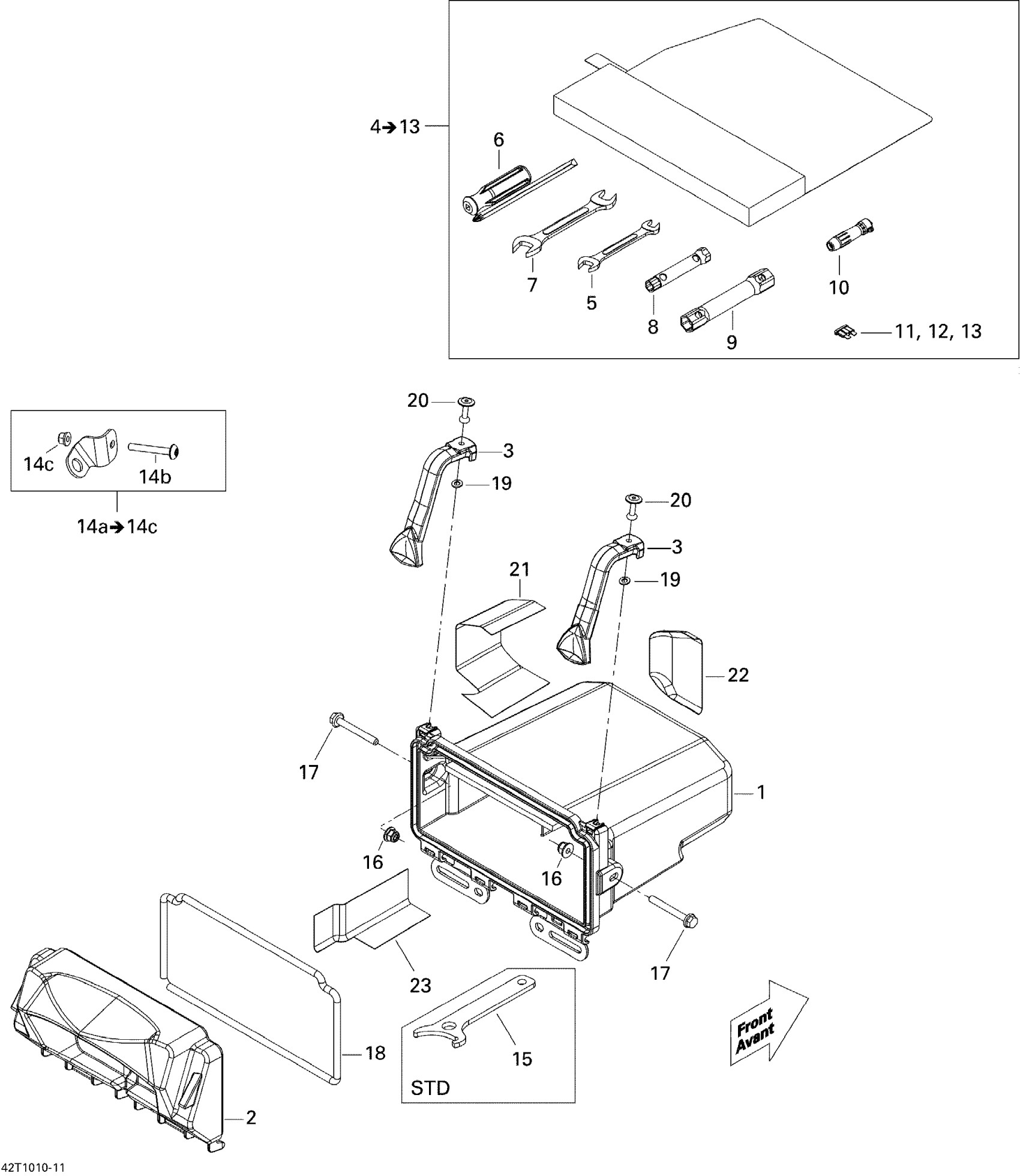

Can-Am Renegade 800R EFI STD, 2010 09- Rear Cargo Box Diagram

#

Description
Price

1

STORAGE BOX - Call your local BRP dealership

708200141

Unavailable

2

Storage Box Cover

708200140

$27.99

3

Panel Latch

517302448

$14.99

4

TOOL KIT WITHOUT BRP LOGO - Call your local BRP dealership | Includes 3 to 15

708200124

Unavailable

5

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

6

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

7

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

8

Socket Wrench 10/13 mm

529014900

$0.94

9

Socket Wrench 16/18 mm

295000175

Unavailable

10

PRESSURE GAUGE - Call your local BRP dealership

529000052

Unavailable

11

Fuse, 30 Amperes

410917200

$3.28

12

Fuse, 20 Amperes

409003900

$3.28

13

Fuse, 15 Amperes

278000343

$3.28

14a

FLAG SUPPORT KIT - Call your local BRP dealership

708200079

Unavailable

14b

Torx Screw M6 X 45

250000215

$1.90

14c

Hex. Flange Elastic Nut M6

233261494

$1.58

15

Adjustment Wrench

529000035

$2.09

16

Flange Elastic Nut M6

233261434

$4.44

17

HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership

207665034

Unavailable

18

NEOPRENE SEAL - Call your local BRP dealership

708200077

Unavailable

19

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

20

Pop Rivet 3/16"

293150100

$1.09

21

Front Reflective Sheet

708200087

$10.49

22

REFLECTIVE SHEET - Call your local BRP dealership

708200088

Unavailable

23

REAR REFLECTIVE SHEET - Call your local BRP dealership

708200083

Unavailable
